Overview:

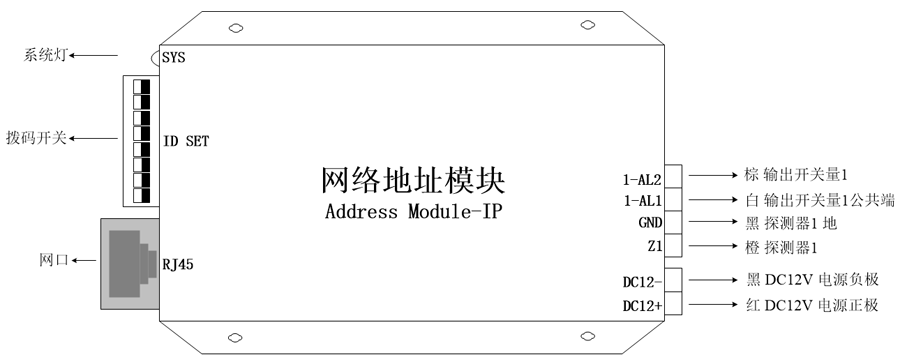

● The network address module comes in single-zone and dual-zone versions.
The single-zone network address module includes: 1 signal detection input and 1 switch output.
The dual-zone network address module includes: 2 signal detection inputs and 2 switch outputs.
● The network address module has a built-in network port and can set up to 4 network centers; various network parameters of the module can be configured remotely through configuration software.
● It has a built-in address code (zone ID) switch for user convenience.
● Each zone of the module can be individually armed and disarmed.
● Strong compatibility: it can connect to all alarm devices with switch outputs (such as Laser Beam Detector, Infrared Beam Detector, infrared detector, smoke detector, gas detector, emergency button, door contact, curtain detector, fire alarm, Electronic Fence, Tension Electronic Fence, high-voltage grid, etc.).
Indicator description:
1. System LED status:
Red LED off: the zone is disarmed and does not respond to input alarms.
Red LED on: the zone is armed.
2. Network port LED status:
Network LED flashing: network communication normal.
Network LED steadily off: no network cable plugged in or abnormal connection.
技术参数：
型号：AT-D100-S
● 工作电压： DC12V
● 工作电流： 74mA
● 使用环境： 温度：-30～+60℃ 湿度：≤95%
● 网 口： RJ45，10M/100M自适应
● 检测输入信号： 开关量常闭信号（NC）和公共端（COM）
● 报警输出信号： 开关量常开信号（NO）和公共端（COM）
● 外观尺寸： 92*78.4*25mm
