Eight-Beam Explosion-Proof Infrared Grating Barrier
Eight-Beam Explosion-Proof Infrared Grating Barrier
Eight-Beam Explosion-Proof Infrared Grating Barrier
Brand: Antongruida
Model: AS-802
Features: Dual-zone address module with RS485 bus communication; connects 2 wired switch detector devices, such as gas detectors, infrared detectors, temperature detectors, infrared beams and infrared light grids — integrating perimeter alarm, infrared anti-theft alarm and smoke/gas/fire alarm systems in one.
  • Photos & Details
  • Specifications

Protection Rating: IP66

Cable Entry Specification: DN20, G-3/4, 6-point, ф10-ф14

Suitable for hazardous areas Zone 1 and Zone 2 of explosive gas atmospheres;

Suitable for IIA, IIB and IIC explosive gas atmospheres;

Suitable for environments with temperature class T1-T6;

Complies with national standard GB3836-2010;

Explosion-proof rating: Ex d IIC T6Gb;

Includes a 50 cm explosion-proof conduit

Suitable for installation in explosive gas atmosphere locations of IIC class and T6 temperature group (such as urban underground utility tunnels, hazardous chemical warehouses, military strategic reserve depots, petrochemical tank farms and military facilities)

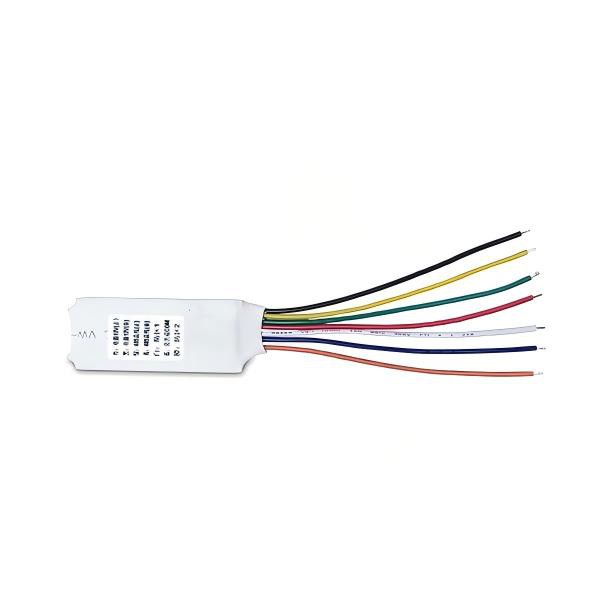

产品名称:双防区地址模块

产品型号:AS-802

品牌:安通瑞达

通讯方式:485总线开关量

联网功能:支持(与安通瑞达总线主机扩展使用)

联动功能:

应用场合:室内/室外

防区数量:2个

防区类型:NC常闭/NO常开(出厂默认是常闭,常开需定制)

探测器类型:红外对射、红外光栅、燃气探测器、紧急按钮、张力电子围栏

工作温度:-10℃ ∽ +50℃

工作湿度:0-85%湿度

工作电压:DC9 ∽ 24V

模块状态:常亮:通讯不正常,常灭:电源不正常,闪烁:正常(1秒/次)

工作电流:20毫安

报警主机仅限安通瑞达总线报警主机,其他报警主机兼容不了

产品尺寸:7cm x 2.4cm x 0.5cm(长x宽x厚)

重量:15.5g
