1. 7-inch color touch screen, menu-based setup, simple fool-proof operation, easy to learn and use.
2. The panel supports up to 80 zones, including wireless LoRa zones, RS-485 bus zones and 4G zones.
3. Supports networking of RS-485, LoRa and 4G temperature/humidity + smoke/temperature composite acquisition modules; wired and wireless compatible.
4. Provides both auto alarm-linked relay output and manual review/relay output to meet linkage-control needs in different sites.
5. Relay linkage output starts only after two parameters, e.g. temperature and humidity/smoke, reach or exceed the warning threshold, avoiding false alarms and false linkage caused by a single condition.
6. Graphical display of device status; data is more intuitive, with real-time monitoring of smoke, temperature and humidity.
7. Supports monitoring of automatic fire suppression / linkage-control device status, so the operator can manually decide whether to start the relay output and achieve fire suppression.
8. Supports one-key start of all fire-suppression equipment, or starting a single device individually.
9. Two-way wireless LoRa communication collects front-end device data in real time, up to 1,000 m in open ground.
10. Supports RS-485 bus communication (up/down) and third-party data-acquisition integration.
11. Built-in 4G module; networked time auto-calibration.
12. Exclusive black-box function showing the latest 500 alarm records with precise alarm time and zone number.

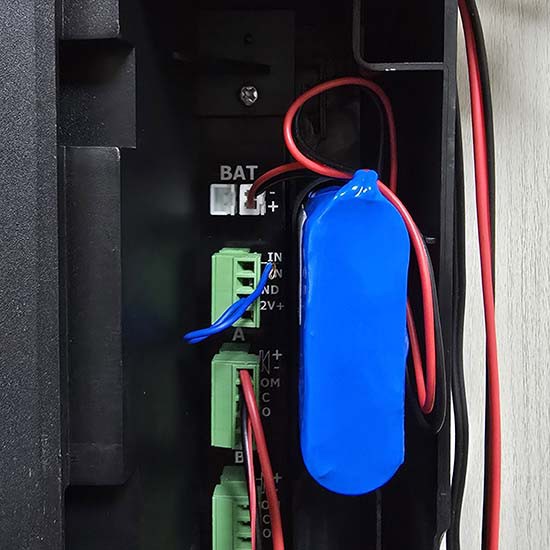

13. Built-in high-capacity rechargeable battery; automatically switches to backup on power loss and recharges when power returns.
14. Supports front-end device power-fail notification.
15. Modular panel design supports expansion of LoRa, 4G and other modules.
16. Supports custom editing of zone names directly on the operation panel.
17. Supports one alarm output with built-in audible and visual alarm indication.
18. Supports expanded IP network communication for third-party integration.
19. Built-in buzzer for audible indication on device alarm.
20. Supports querying device status and the panel SIM card number, directly displaying the panel's QR code.
21. Supports remote control and management via PC cloud platform software and mobile mini program, with hierarchical permissions and one-key sharing.
22. Supports alarm push via WeChat, mini program, voice call and SMS.
23. Product dimensions: 26.5*25*8cm, weight: 2.5kg.
