Main functions:
●Equipped with a 4.3-inch LCD color screen with graphical display, intuitive and clear.

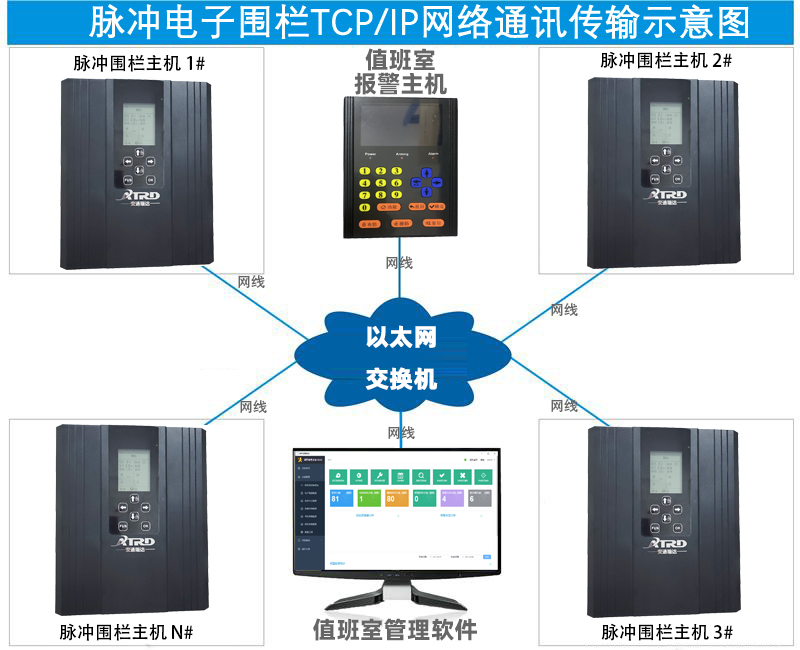

●Two communication interfaces: RS485 interface and Ethernet port (these two can be auto-detected and used simultaneously).
●Can manage up to 120 "perimeter device Zones".
●Can manage up to 20 "wireless Zones".
●Can manage up to 20 "network bus linkers" (the number of "RS485 bus linkers" is unlimited).
●With cascade function, supports simultaneous management and control of 2005 "perimeter Alarm Control Panels" or "PC software", with flexible networking, intercommunication of data, and synchronization and sharing of information.
●It has 2 "source ends (previous-level perimeter Alarm Control Panels)", and each perimeter Alarm Control Panel can simultaneously manage and control 2 "perimeter Alarm Control Panels".
●It has 4 centers and can send data to 4 center ends simultaneously, with very flexible networking.

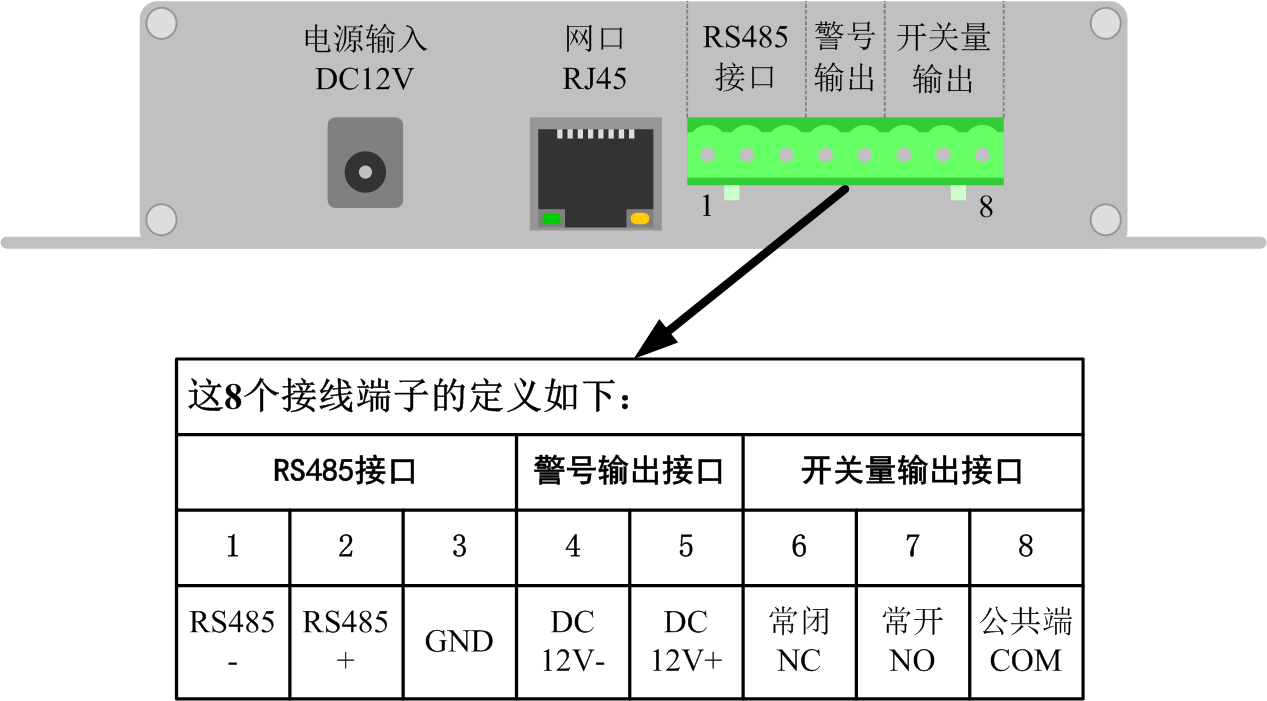

●Multiple alarm output interfaces: DC12V siren output, switching output (NO, NC, COM), Ethernet output.
●Strong compatibility; manageable Zones include: "Pulse Electronic Fence", "Tension Electronic Fence", "High-Voltage Electric Fence", "Buried Leakage Detector", "Vibration Optical Fiber Detector", "wireless Zone" and other alarm devices with switching output (such devices must be managed through address modules, such as "Laser Beam Detector", "Infrared Beam Detector", "Infrared Detector", "Smoke Detector", "Gas Detector", "Emergency Button", "Door Contact", "Curtain Detector", "Fire Alarm", "Infrared Grating").
●With wireless remote control function, it can add 20 remote controllers, and the button functions of the remote controllers can be freely set (button function options include: wireless arming, wireless disarming, wireless alarm reset, wireless one-key alarm, wireless high-voltage arming, wireless low-voltage arming). Each button of the remote controller can select a function option as its default function.
●With the function of automatically searching for and adding "perimeter device Zones" (supported on both RS485 and Ethernet), debugging is simple and easy.
●With the function of automatically searching for and adding "network linkers", debugging is simple and easy.
●With "automatic scheduled arm/disarm function" for intelligent automatic control, it can add 42 "automatic arming or disarming scheduled task operations".
●With one-key "quick arming", "quick disarming" and "quick alarm reset" functions (password-free operation can be set).
●With "Chinese voice broadcast function", it can intuitively and clearly prompt relevant information to users (voice and volume can be set).
●With "alarm sound function", providing multiple alarm voices to choose from.
●Supports storage, query and deletion of up to 10,000 "alarm records".
●Supports storage, query and deletion of up to 10,000 "operation records".
●It has 2 user types: administrator and operator, and the operator's user permissions can be freely set.
●Supports 4 PC software simultaneously managing and controlling this perimeter Alarm Control Panel.
●With indicator functions such as power LED, arming LED and alarm LED.
●Supports setting parameters of "perimeter device Zones", including arming, disarming, alarm reset, alarm sensitivity, ID modification, voltage value, pulse period, tension slack threshold, tension tight threshold, grid electric shock energy, factory reset and other parameters; these parameters can be set for a single Zone or in batch.
●Supports setting the alarm output time, ranging from 5 seconds to 10 minutes.
●Zones and devices can be added and deleted in batch or individually.
●Supports batch setting of the central network parameters of "networked perimeter device Zones" and "network linker devices".
●Supports setting the RS485 data transmission period, to better be compatible with various communication conversion devices added in the middle of the communication line.
●Supports communication-failure function and parameter settings, which can be freely set according to actual needs and communication conditions.
●The network parameters of this unit can be set locally or over the network.
●Supports online program update over the network.
●Supported languages: Chinese and English.
电气特性：
工作电压：DC12V–DC30V
功耗：
静态功耗：1.98W（12V，165mA），
报警状态功耗： 2.16W（12V，180mA）
警号输出接口：电压DC12V, 最大电流1000mA
外观尺寸：178*168*32mm
无线遥控器参数：433MHz, Ev1527编码，接收灵敏度: -107dBm
无线防区参数：433MHz, Ev1527编码
网口：RJ45, 10M/100M自适应
RS485口：波特率4800bps，1个起始位，1个停止位，无校验位
