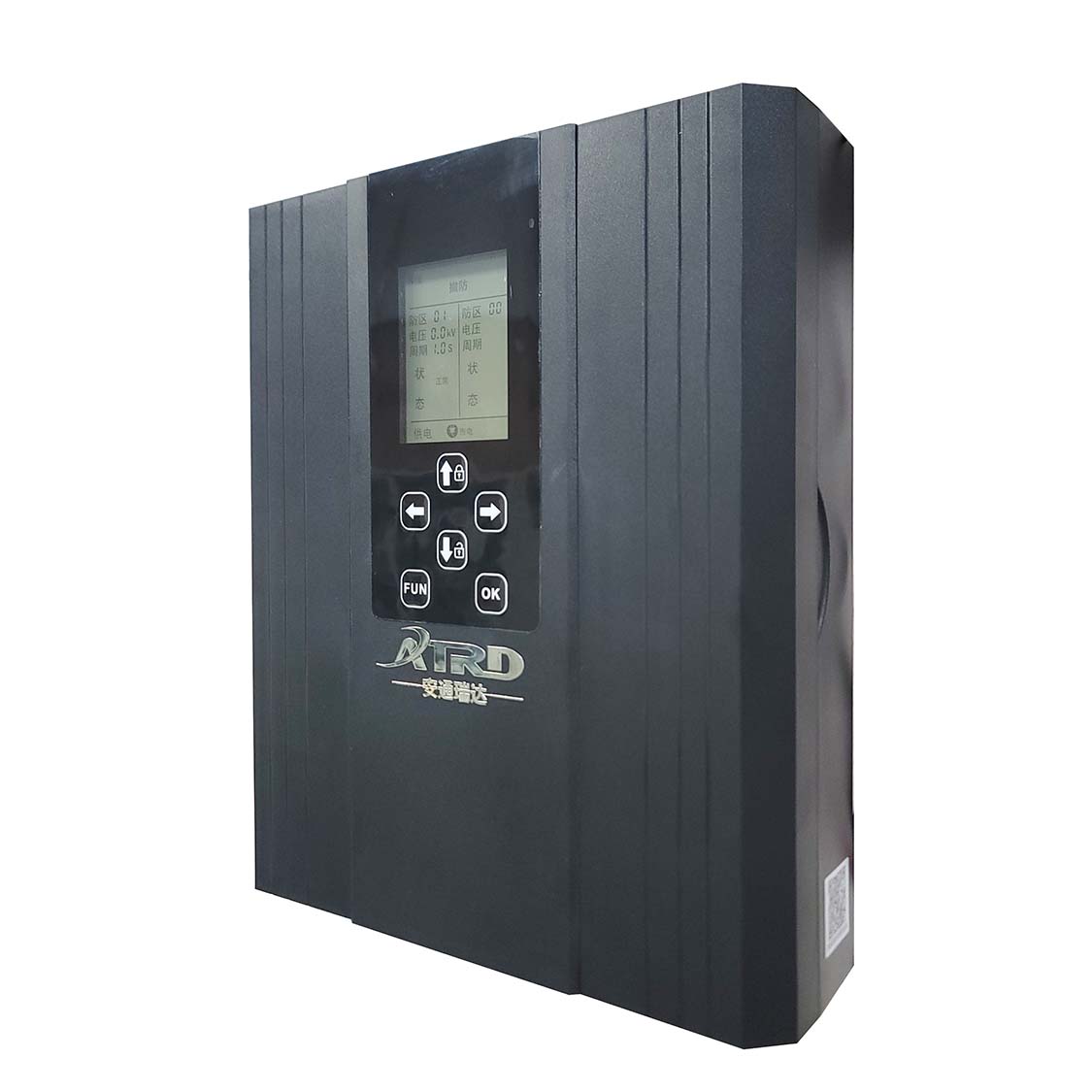

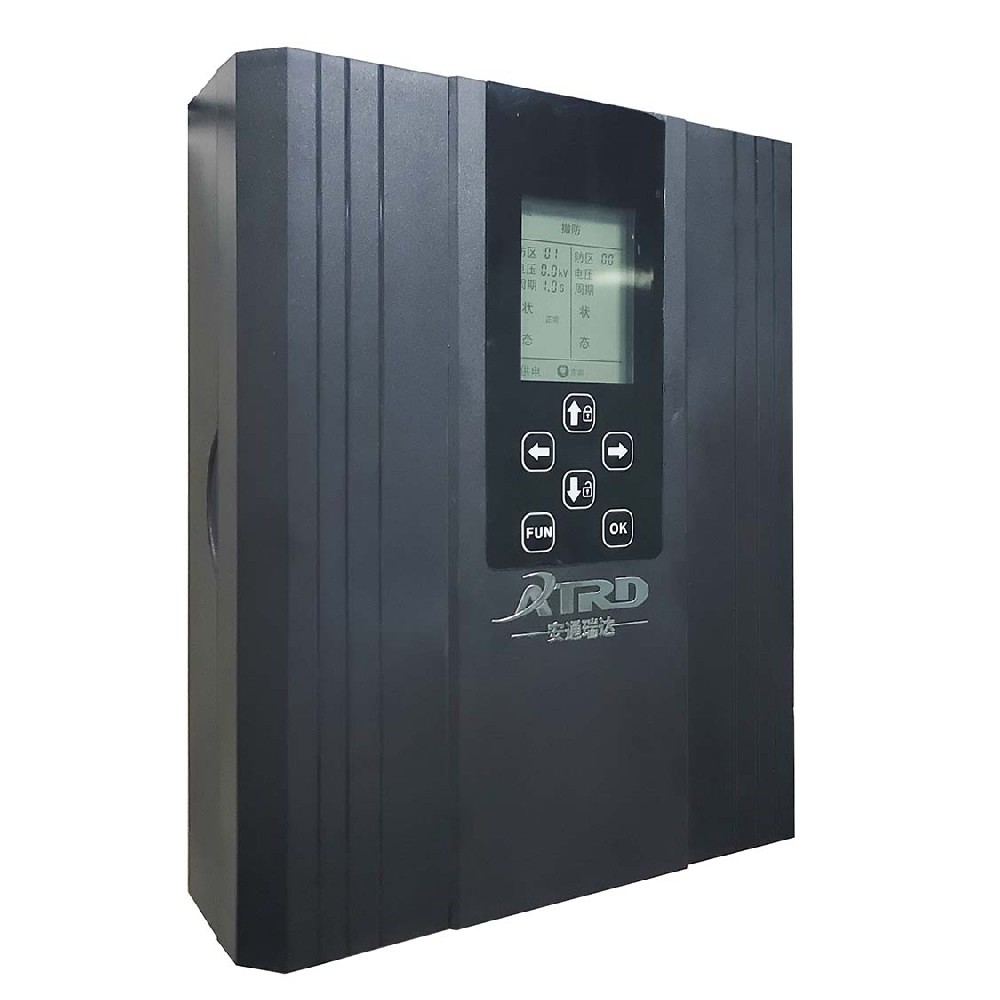

- Photos & Details
- Specifications
Main Functions: ● Equipped with a 3.3-inch LCD screen, featuring intuitive and clear display, precise indication, energy saving and enhanced functions. ● Capable of displaying: 4-wire / 6-wire mode, remote control status, voltage waveform, arming / disarming status, zone ID, output voltage value, output voltage cycle, alarm status and power supply status. ● Separate high-voltage and low-voltage design: high-voltage terminals on the left side of the main unit, low-voltage terminals on the right side. ● Differential voltage output: 1-channel positive voltage and 1-channel negative voltage. ● Output voltage amplitude: 500V～6000V, stepless adjustable (accuracy: 1V). ● Output voltage cycle: 1.0～3.0S, stepless adjustable (accuracy: 0.1S). ● Directly compatible with multiple models: 4-wire main unit, 6-wire main unit, single-zone main unit, dual-zone main unit, which can be used freely according to on-site project requirements. ● Only two models available: RS485 version and Ethernet version. ● 【RS485 Version】Equipped with communication interface: RS485 interface. ● 【Ethernet Version】Equipped with 2 communication interfaces: RS485 interface and Ethernet port (both interfaces can be used simultaneously). ● 【Ethernet Version】Supports 4 centers and can send data to 4 center terminals at the same time, enabling highly flexible networking. ● Alarm types: short-circuit alarm, wire-break alarm, tamper alarm, dry contact input alarm, power failure alarm, etc. ● Remote control function (optional): able to learn 9 wireless remote controllers. ● Multiple alarm output interfaces: 2-channel DC12V alarm siren output, 2-channel dry contact output (COM, NC, NO). ● 2-channel alarm input interfaces: 2 zones, each zone equipped with 1-channel dry contact alarm input. ● Zone ID range: 0-120; when zone ID is set to 0, the corresponding zone is disabled. ● Alarm output duration: adjustable from 5 seconds to 600 seconds. ● Alarm sensitivity: adjustable from 1 to 60 (smaller value indicates higher sensitivity). ● 2-channel battery input interfaces (both available); users can choose 1 or 2 battery packs according to backup power requirements. ● 1-channel power output interface with DC12V/1A output. ● 6 control keys: Function, Confirm, Left, Right, Up, Down. ● Supports one-touch quick arming, one-touch quick disarming, one-touch quick alarm reset via [Up], [Down] and [OK] keys. ● Supports remote configuration: arming, disarming, alarm reset, pulse voltage setting, pulse cycle setting, 4-wire / 6-wire setting, alarm output duration setting, alarm sensitivity setting, zone ID modification, factory reset, tamper alarm function, input alarm function, alarm input signal type, etc.
电气特性：
● 电源输入： DC12V/2A (AC110～AC220V 电源适配器)，DC 插头；
● 脉冲电压输出幅值： 500～6000V，无极可调（精度：1V）；
● 脉冲电压输出周期： 1.0～3.0S，无极可调（精度：0.1S）；
● 脉冲电流峰值： ＜10A；
● 脉冲持续时间： ≤0.1S；
● 脉冲输出电量： ≤2.5mC；
● 脉冲输出能量： ≤5J；
● 警号输出接口： 电压 DC12V, 最大电流 800mA；
● 开关量输出接口： NC（常闭），NO（常开），COM（公共端）；
● 电源输出接口： DC12V/1A；
● 备用电池参数： DC12V，带充电保护板的锂电池组；
● 无线遥控器参数： 433MHz, Ev1527 编码，接收灵敏度: -107dBm；
● 网口： RJ45, 10M/100M 自适应；
● RS485 口： 波特率 4800bps，1 个起始位，1 个停止位，无校验位；
● 尺寸： 外观尺寸：292*252*85mm； 背面挂孔距离：181.2mm。
