Locating-type Vibration Optical Fiber Intrusion Alarm Control Panel
Locating-type Vibration Optical Fiber Intrusion Alarm Control Panel
Locating-type Vibration Optical Fiber Intrusion Alarm Control Panel
Brand: Antongruida
Model: TDZ-G2000
Features: Adopts the most advanced precision locating fiber-optic intrusion detection system for long-distance, full-area continuous micro-disturbance sensing and locating;
High warning sensitivity with anti-vandalism function; adapts to various terrains without blind spots;
Advanced pattern recognition precisely identifies intrusion behavior and filters harmless signals from strong wind, heavy rain, small animals, trains and vehicles;
Functional linkage with video systems and third-party platforms;
Integrates audible, visual and electrical linkage for multi-means all-round coordinated warning;
On-site electronic map combined with video linkage for real-time online monitoring;
The external sensing component is just one optical cable — high reliability and low maintenance.
  • Photos & Details
  • Specifications


Product Introduction

This system is based on DFVS optical fiber sensing technology and uses standard single-mode optical cable as the sensing medium. Laid along perimeter fences and walls, it senses in real time the vibration signals caused by intrusion events such as climbing, crossing or damaging the fence, and locates and identifies the intrusion events to achieve perimeter security. Meanwhile, the system can be linked with the video surveillance system to obtain video information of the alarm location in time, forming a comprehensive and three-dimensional anti-theft and anti-intrusion monitoring network.

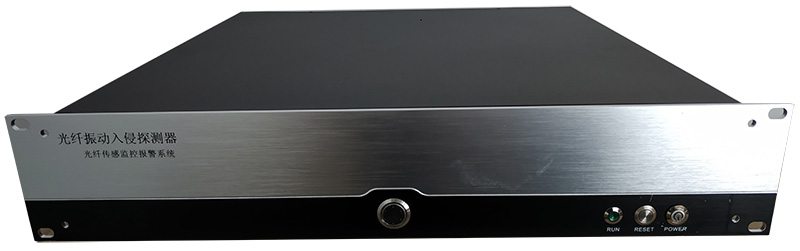

Locating front view 2.jpg

Product Functions

Ø Alarm function: the system can effectively provide instant alarm and accurate location for intrusion or illegal entry behaviors such as damaging the perimeter, crossing the perimeter, or cutting the sensing optical cable, with a locating accuracy better than ±1m;

Ø High disturbance detection sensitivity, long detection distance, short response time, and simultaneous multi-point alarm;

Ø Electronic map display, capable of loading renderings and GIS maps; electronic zones can be set arbitrarily, with flashing prompts at alarm locations.

Ø Distributed monitoring over the entire sensing section, with continuous monitoring and no blind spots;

Ø Video linkage function.

Ø 7*24-hour real-time online monitoring, truly achieving unattended operation;

Ø Intelligent pattern recognition and disturbance signal pattern analysis identify the type of intrusion source, with strong anti-false-alarm and anti-miss-alarm capability. It features unique multi-dimensional feature extraction technology that comprehensively analyzes signal features in the time, frequency and spatial domains, and adopts an intelligent pattern classification algorithm based on deep learning;

Ø Optical cable is used throughout monitoring, requiring no power supply, with simple installation and maintenance;

Ø Permission management: according to project requirements, different permissions can be assigned, such as administrator and operator.

Ø Data management: data management, data analysis, historical data query, etc.

Ø Device self-check function: box-open alarm, fault alarm, fiber-break alarm, etc.

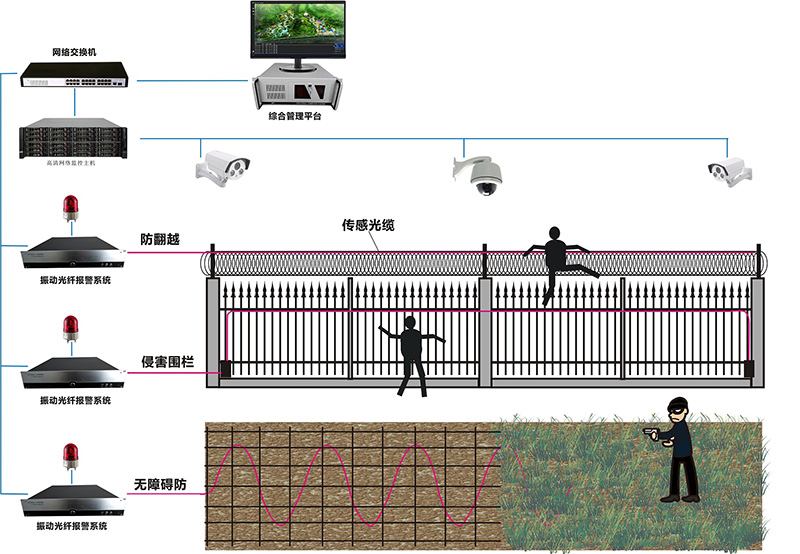

System schematic diagram:





技术参数:


产品型号:TDZG2000

探测范围:5km  10km

通道数量:1 / 2

定位精度:±1米

空间分辨率: 0.4米~2米

频响范围: 0.2~2KHz

误报率: ≦1次/公里/月

报警相应时间: ≦1S

传感光缆: 推荐铠装架空光缆GYTA/GYTS,单模G652D

敷设方式: 护栏围栏敷设、实体墙+网片敷设

数据接口: RJ45,RS485

现场温度: -40°~ 70°C

工作温度: -10°~ 55°C

功耗: 35W

供电: AC220V
