Single/Dual-Channel Vibration Optical Fiber Collector
Single/Dual-Channel Vibration Optical Fiber Collector
Single/Dual-Channel Vibration Optical Fiber Collector
Brand: Antongruida
Model: AT-Z01D
Features: The single/dual-zone vibration optical cable energizer (acquisition unit) has a built-in network module for direct network communication, more stable and reliable than external network modules.
Alarm output: normally-open/normally-closed common signal.
Built-in splice tray for simpler installation.
  • Photos & Details
  • Specifications

Features:

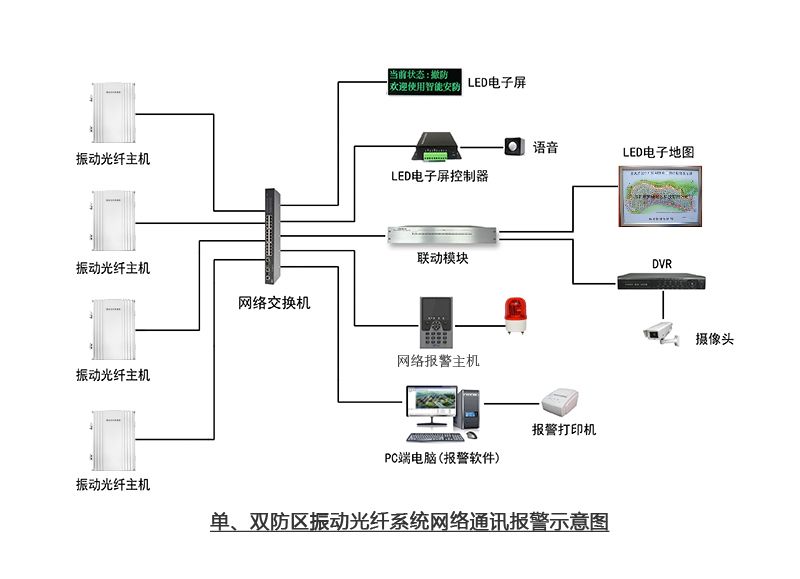

1. Multi-level networking: the host can form a multi-level management system with smart keypads and management platform software, providing customers with an overall solution.

2. Functions: it can intelligently analyze wind, rain, other vibrations and human intrusion.

3. Parameter adjustment: its output parameters and configuration can be adjusted through smart debugging software.

4. Working principle: optical fiber interferometer principle.

5. Management mode: it can work independently to meet different customer needs;

6. Vibration cable signal interface: FC/APC; sensitivity: 100% intrusion alarm.

7. Vibration sensing cable: single-mode armored vibration sensing cable; allowable bending radius: static 10 times the cable outer diameter, dynamic 20 times the cable outer diameter; cable life: 25 years; operating temperature (℃): -40~+70; fiber core: national standard G652D fiber core.

8. The host is installed outdoors on a wall or on a fence; single-zone and dual-zone detectors are distinguished, and the dual-zone has left and right cable exits.

9. Each channel independently outputs NO/NC relay signals.

10. A three-core optical cable must be used, with a terminal box configured at the tail end.

11. The collector has a 3.5-inch screen for setting the zone number, IP parameters, vibration parameters and sensitivity parameters.


Application scope of the Vibration Optical Fiber alarm system:

  The vibration cable perimeter alarm system can be applied in places prone to fire, explosion and strong magnetic interference, such as liquefied gas plants, hazardous materials warehouses, chemical plants and military goods depots. It can also be used for the protection of key facilities and areas, such as anti-theft protection of electronic equipment, anti-sabotage protection of oil and gas pipelines, anti-theft protection of urban rail transit signal cables, perimeter protection of Olympic villages, airport perimeter protection, and border intrusion prevention. Meanwhile, it can replace traditional protection methods for ordinary perimeter locations such as water plants, residential communities and villa compounds!


产品参数:

设备名称:单路、双路振动光纤采集器

设备型号:AT-Z01D(单防区)、AT-Z02D(双防区)

通讯方式: RJ45(网络)

报警方式:振动、断纤、输出开关量信号

屏幕尺寸:3.5寸

设备尺寸:304*184*78MM

设备供电:DC12V

设备功率:≤5W

使用环境:温度-40℃~+70℃

相对湿度:小于95%

接入报警键盘: 根据要求适配

外壳材质:铸铝外壳
