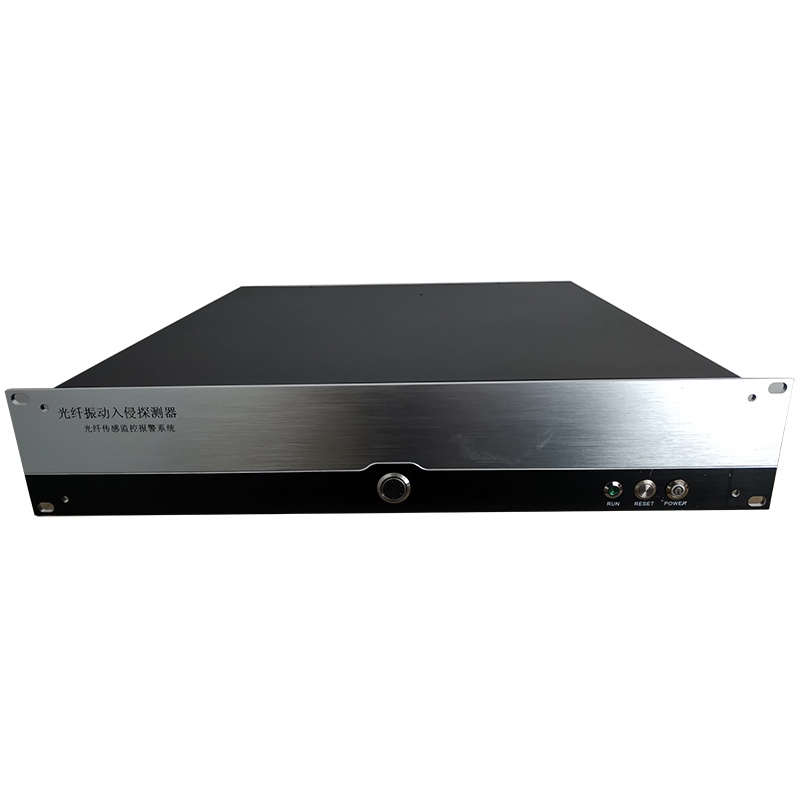

Zone-type Vibration Optical Fiber Intrusion Alarm Control Panel
Zone-type Vibration Optical Fiber Intrusion Alarm Control Panel
Zone-type Vibration Optical Fiber Intrusion Alarm Control Panel
Brand: Antongruida
Model: TDZ-F2000
Features: Adopts the most advanced precision locating fiber-optic intrusion detection system for long-distance, full-area continuous micro-disturbance sensing and locating;
High warning sensitivity with anti-vandalism function; adapts to various terrains without blind spots;
Advanced pattern recognition precisely identifies intrusion behavior and filters harmless signals from strong wind, heavy rain, small animals, trains and vehicles;

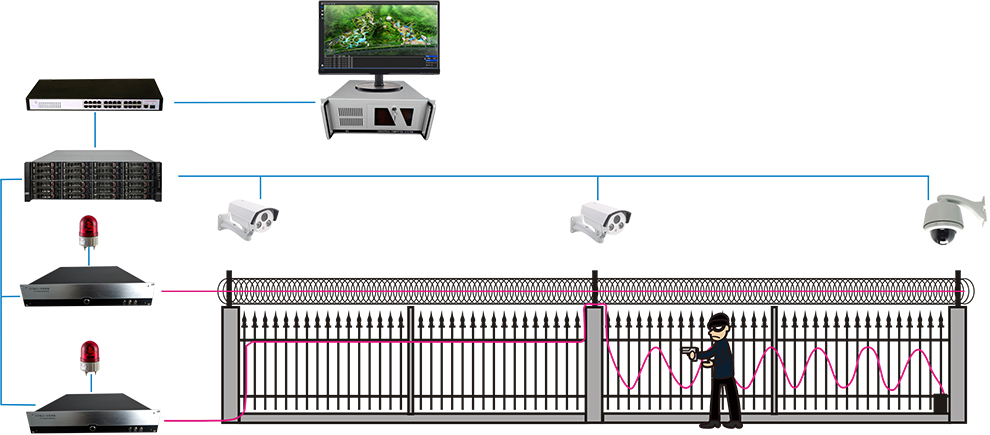

Functional linkage with video systems and third-party platforms;
Integrates audible, visual and electrical linkage for multi-means all-round coordinated warning;
On-site electronic map combined with video linkage for real-time online monitoring;
The external sensing component is just one optical cable — high reliability and low maintenance.
  • Photos & Details

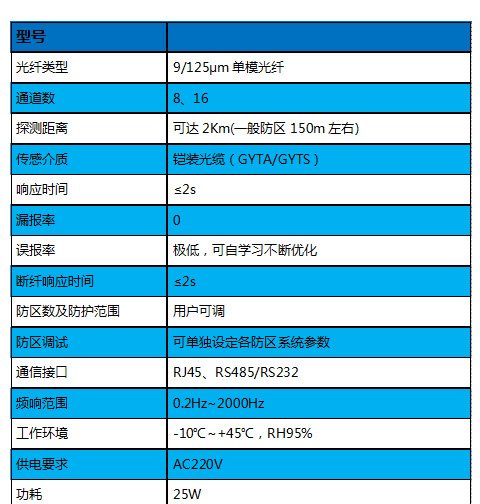

  • Specifications

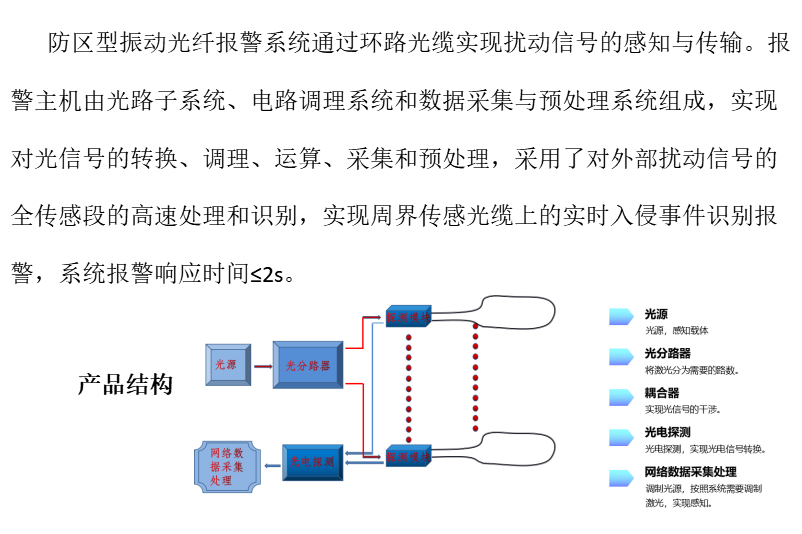

Product Introduction

  The sensing optical cable adopts a black high-density polyethylene outer sheath with anti-UV and anti-rat-bite functions. Internally it uses 4 vibration sensing optical fibers, 1 for vibration detection and 3 as spares. Structurally it adopts layer-stranded and central-tube designs to protect the fibers and effectively prevent the influence of harsh environments.

  This vibration optical cable has the following performance advantages: sensitive vibration response, and resistance to tension, abrasion, flattening, impact and repeated bending, twisting, curling and folding (bending angle not exceeding 90°) and gunshots, with good mechanical properties; stable temperature cycling, intact sheath, water seepage resistance and flame retardancy for good environmental performance. The optical cable features fast signal transmission, long distance, electromagnetic interference resistance, good insulation, good chemical stability, small size, light weight, long life and low loss, with excellent characteristics and economic benefits.

Zone-type Vibration Optical Fiber Intrusion Alarm Control Panel
