System advantages:
Waveform display:Extracts the characteristic values of the vibration signal during intrusion, analyzes and converts them into recognizable and quantifiable square-wave graphics displayed directly on the device.
Full-spectrum detection:Collects the characteristics of vibration signals in different frequency bands at the installation site, makes comprehensive judgments to distinguish intrusion signals from interference signals, and improves the alarm ****** rate.
Intelligent learning:Stores characteristic data of environmental interference signals, automatically compares them, and intelligently identifies and filters out environmental interference signals.
Optical cable inspection:The system has an optical cable inspection function and still tests the fiber loop even in disarmed state; a broken-fiber alarm in one zone does not affect the normal operation of other zones.
Ultra-long distance:Using ordinary communication optical cable as the sensing unit, it exploits changes in optical characteristics caused by external vibration to achieve long-distance, wide-area perimeter zone detection.
Passive zones:Using optical fiber as a passive detection cable, except for the power supply required by the main unit, the entire outdoor zone is passive and effectively avoids lightning interference, and is highly adaptable to various indoor and outdoorharsh natural environments and electromagnetic interference. It is especially suitable for flammable, explosive and strong electromagnetic interference locations.
Energy saving and environmental protection:Achieves copper-free signal transmission; power consumption is only 60W-80W per 100 km, meeting energy-saving and environmental protection requirements.
Service life:The outdoor service life of the optical cable is up to 20 years, so the whole system has a long service life, stable performance and low after-sales maintenance cost.
Easy commissioning:Multi-level sensitivity adjustment, intelligent graphical display and quantized square-wave signal settings; adjusting the sensitivity adapts to various complex installation environments.
Easy installation:The optical cable is a passive distributed system with simple, convenient and flexible wiring; it suits various complex terrain and can detect irregular perimeter zones. It can be laid directlyon various iron mesh, wrought-iron, plastic-steel, brick walls and irregular fences, or directly buried under various ground surfaces to form a concealed protection system.
Applications:Using optical cable as the sensing detector, it achieves high-sensitivity, long-distance, wide-area perimeter protection, and is ideal for airports, oil pipelines, high-speed railway lines,chemical plants, military facilities, prisons, cultural relics and historic sites, water conservancy and electric power, villa communities, and schools.

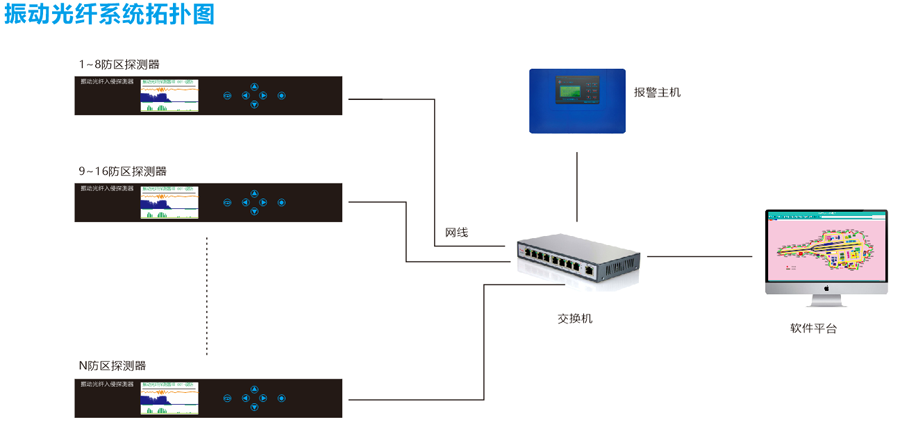

Compatibility:As a front-end device of the IoT, it is equipped with multiple data connection ports, compatible with other integrated platforms to achieve data docking and therebyachieve system linkage, such as with other Alarm Control Panels, digital matrix, DVR, and on-site audible and visual alarms (the Alarm Control Panel's overallresponse speed is not affected by the linkage).
Management software:Features include multi-level login permissions, electronic map, video linkage (4 sets of video pictures can be linked per zone), video matrix, alarm zone display, alarm-receiving processing, human voice announcement, and camera embedding on the electronic map.
Flexible configuration:It can form either a small perimeter alarm system or a large alarm system, and can build a multi-level alarm-receiving center or stand alone as an independent alarm system.
产品名称: 振动光纤周界报警系统
产品型号: TDS-ZDK4/K8
通讯模式: CAN总线/RS485总线/TCP网络
报警方式: 攀爬/摇晃/断纤/挖掘/打桩/拖拽
响应时间 : ≤1S
振动光纤: 单模国标通讯光纤
光纤接口: FC/APC
安装方式: 挂网/地埋/嵌墙
系统防区数: 4/8/16/32,设备叠加平台管理,扩展更多防区
工作波长: 1550nm,每路输出功率小于等于10mw
激光光源: 光源使用寿命>10年
恢复时间: ≤1S
警戒长度: ≤1000米(防区光缆长度)
工作环境: -40℃~+70℃,0~95%相对湿度、无冷凝
防区警号: 外接警号模块,实现防区声光报警联动功能
供电方式: AC110~240V
消耗功率: ≤7W
产品尺寸/重量: 430× 88 ×300mm/5Kg
防水等级: 室外IP67
安装环境: 各种铁网、铁艺、塑钢、砖墙等建成的围栏围墙上
联动兼容: 支持,防区报警开关量独立输出
