16-Zone One-Cable Vibration Optical Fiber Host
16-Zone One-Cable Vibration Optical Fiber Host
16-Zone One-Cable Vibration Optical Fiber Host
Brand: Antongruida
Model: AT-Z16D
Features: The vibration optical fiber alarm system consists of the alarm energizer, alarm software, signal acquisition devices, linkage devices, fiber transfer boxes, switches, zone-splitting packages, guide optical cables and vibration sensing optical cables.
  • Photos & Details
  • Specifications

Features:

1. Multi-level networking: the host can form a multi-level management system with smart keypads and management platform software, providing customers with an overall solution.

2. Functions: it can intelligently analyze wind, rain, other vibrations and human intrusion.

3. Parameter adjustment: its output parameters and configuration can be adjusted through smart debugging software.

4. Working principle: optical fiber interferometer principle.

5. Management mode: it can work independently to meet different customer needs;

6. Vibration cable signal interface: FC/APC; sensitivity: 100% intrusion alarm.

7. Vibration sensing cable: single-mode armored vibration sensing cable; allowable bending radius: static 10 times the cable outer diameter, dynamic 20 times the cable outer diameter; cable life: 25 years; operating temperature (℃): -40~+70; fiber core: national standard G652D fiber core.

8. The host is placed indoors with a one-cable wiring method, and the front-end zone kits do not require power supply.

9. Each channel outputs NO/NC relay signals and can be linked with video or lighting.

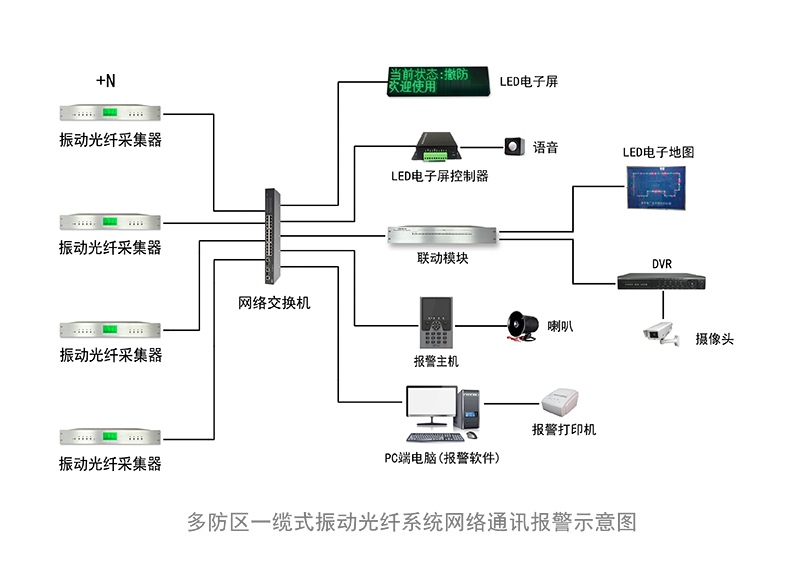

10. Multiple 4-channel and 8-channel vibration fiber signal collectors can be cascaded; 2U installation; system management platform mode; based on TCP/IP protocol.

11. The collector has a 3.5-inch screen for setting the zone number, IP parameters, vibration parameters and sensitivity parameters.

12. The vibration fiber collector is placed in the main control room with an integrated vibration-sensing structure; only one optical cable is needed in each direction for higher sensitivity. The outdoor zone kits require no power supply.

Application scope of the Vibration Optical Fiber alarm system

The vibration cable perimeter alarm system can be applied in places prone to fire, explosion and strong magnetic interference, such as liquefied gas plants, hazardous materials warehouses, chemical plants and military goods depots. It can also be used for the protection of key facilities and areas, such as anti-theft protection of electronic equipment, anti-sabotage protection of oil and gas pipelines, anti-theft protection of urban rail transit signal cables, perimeter protection of Olympic villages, airport perimeter protection, and border intrusion prevention. Meanwhile, it can replace traditional protection methods for ordinary perimeter locations such as water plants, residential communities and villa compounds!


产品参数:

设备名称:16区振动光纤采集器

设备型号:AT-Z16D

通讯方式: RJ45(网络)

报警方式:振动,断纤,输出开关量信号

屏幕尺寸:3.5寸

设备尺寸:485*250*68MM

设备供电:AC110V-220V

设备功率:≤7W

使用环境:温度-40℃~+70℃

相对湿度:<95%

接入报警键盘: K7 K9 K10

 外壳材质:2U架构,拉丝铝面板

安装方式:放置室内,机架安装
