8-Zone IP Module (ES668E)
8-Zone IP Module (ES668E)
8-Zone IP Module (ES668E)
Brand: Antongruida
Model: ES668E
Features: Module has 8 wired zone inputs
Each zone has 2 wiring terminals
Module reports to 2 IP centers via network interface
  • Photos & Details
  • Specifications

The ES668E 8-zone IP module is an alarm expansion device with IP communication, with 8 zone inputs and 2 linkage outputs.


Product advantages:

● 8 wired zone inputs built in

● 2 wiring terminals per zone

● The module can report to 2 IP centers via the network interface

● 2 relay outputs built in

● Controls this device via the monitoring center and WeChat platform

● Supports software programming and remote program upgrades



Product features

Alarm status monitoring: comprehensively monitors via LEDs the alarm, arming/disarming, output, network communication, device running and power status of each zone

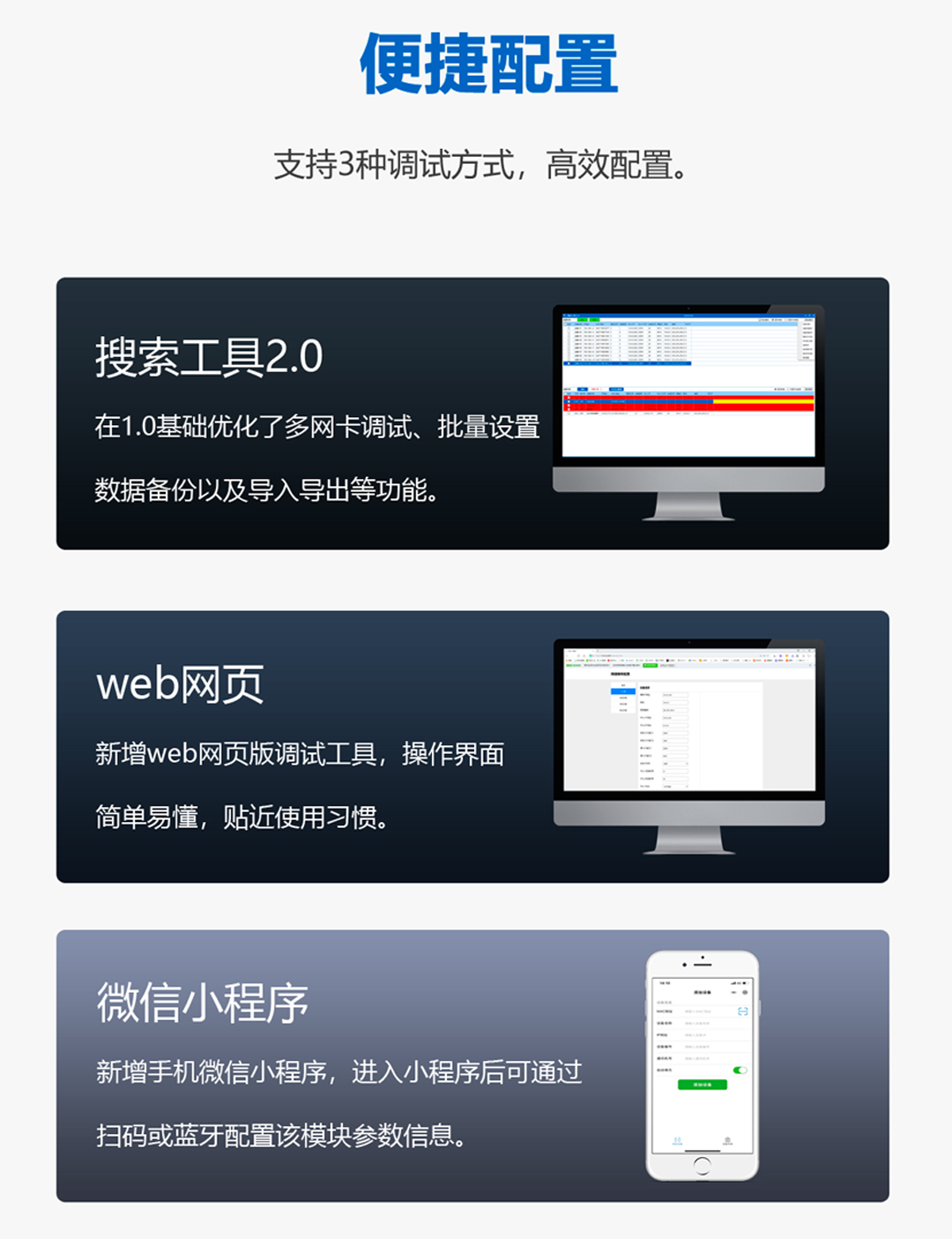

Convenient configuration: supports Web and Bluetooth programming of system configuration, device status query, arming/disarming and relay output control

Protocol support: supports UDP and MQTT communication protocols, with flexible protocol selection

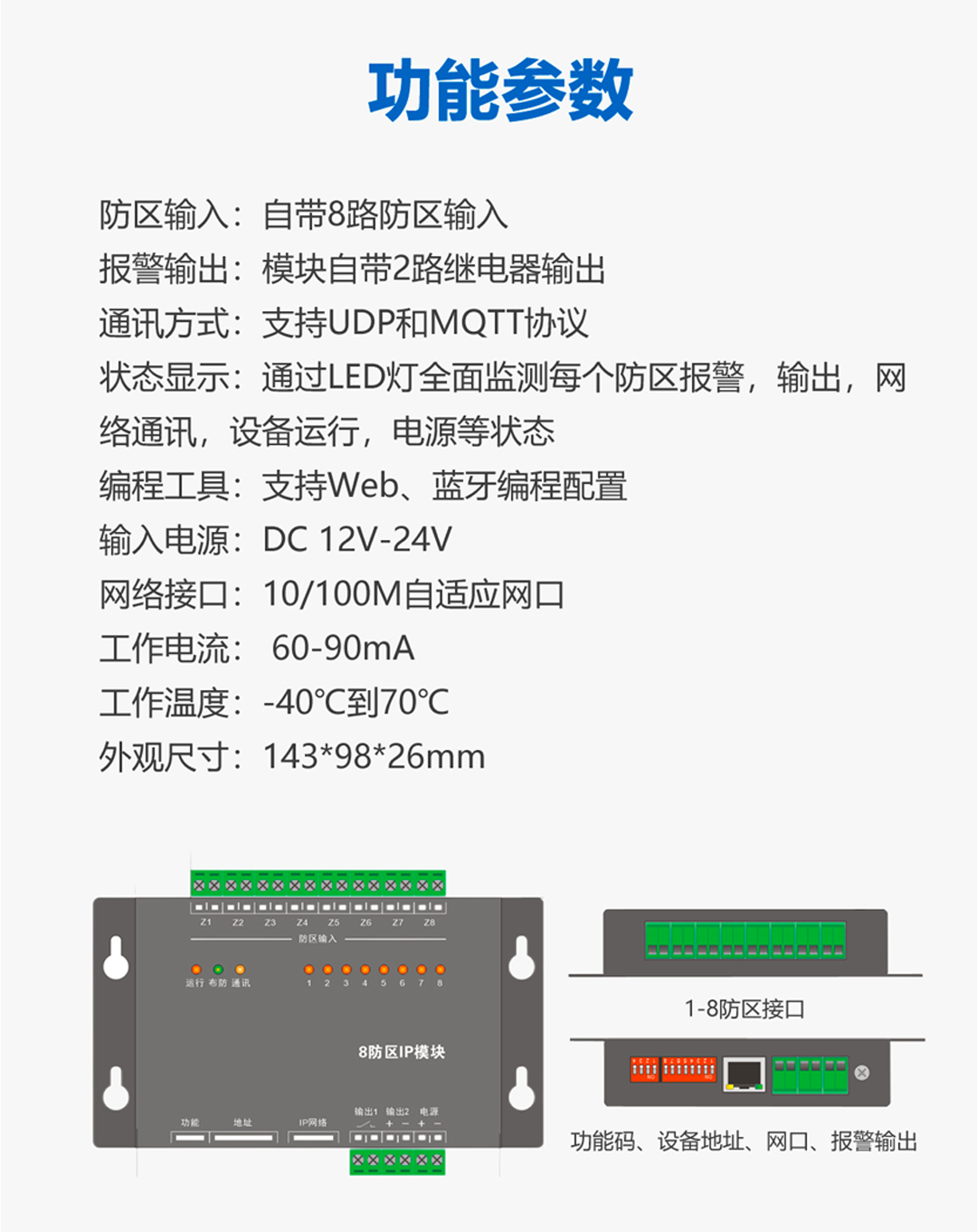

Technical parameters:

Zone inputs: 8 built-in zone inputs

Alarm output: 2 built-in relay outputs

Communication: supports UDP and MQTT protocols

Status display: via LEDs it comprehensively monitors each zone's alarm, output, network communication, device running and power status. Programming tool: supports Web and Bluetooth programming. Input power: DC12V-24V

Network interface: 10/100M auto-negotiation port

Operating current: 60-90mA

Operating temperature: -40℃ to 70℃

Dimensions: 143*98*26 mm
