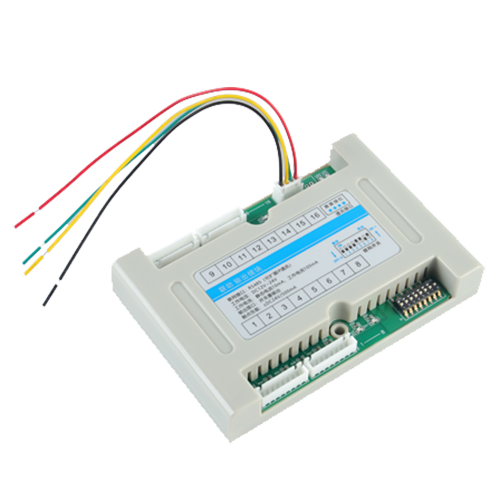

Linkage Output Module
Linkage Output Module
Linkage Output Module
Brand: Antongruida
Model: ES6709
Features: 16 channels of switch output (passive)
1 RS485 bus communication interface or network communication via IP expansion module
LED2 power [steady on] normal power supply
Networking: RS485, IP communication (network module required)
  • Photos & Details
  • Specifications

  The linkage output module has 16 relay outputs (passive) and one RS485 bus communication interface for connecting to the communication host. One-to-one, many-to-one and one-to-many linkage outputs are realized through host programming. It is suitable for alarm-linked video pop-up and electronic map (sand table) creation.


Product advantages:

●16 relay outputs (passive)

●1 RS485 bus communication interface, or network communication via an IP network expansion module

●LED2 power [steady on] indicates normal power supply

●Networking: RS485 and IP communication (network module to be purchased separately)


Product features:

Overload protection: short-circuit / overload protection

Linkage output: one-to-one, many-to-one and one-to-many linkage outputs realized through host programming

Ultra-thin body: ultra-thin appearance; DIP switches and wiring without removing the enclosure


 Technical parameters:

Product name: Linkage Output Module

Product dimensions: 13cm x 9 cm x 2.4 cm

Operating temperature: -10℃ ~ +50℃

Operating voltage: DC 12 ~ 24 V

Operating current: static 10 mA, operating 100 mA (all 16 relays closed)

Contact load: ≤DC24V/500mA (for devices over 500mA, an external high-power relay is required)

LED run: [slow flash] normal 485 communication; [fast flash] 485 communication fault

Linkage output: 16 LED indicators, one per output channel; [steady on] when outputting
