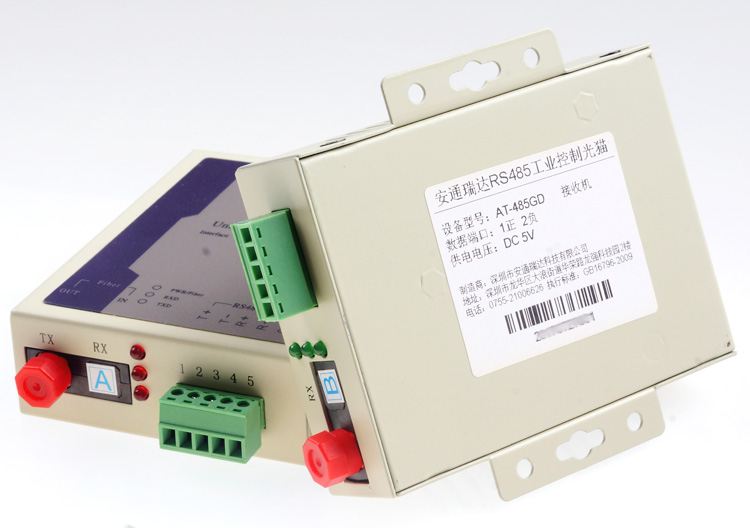

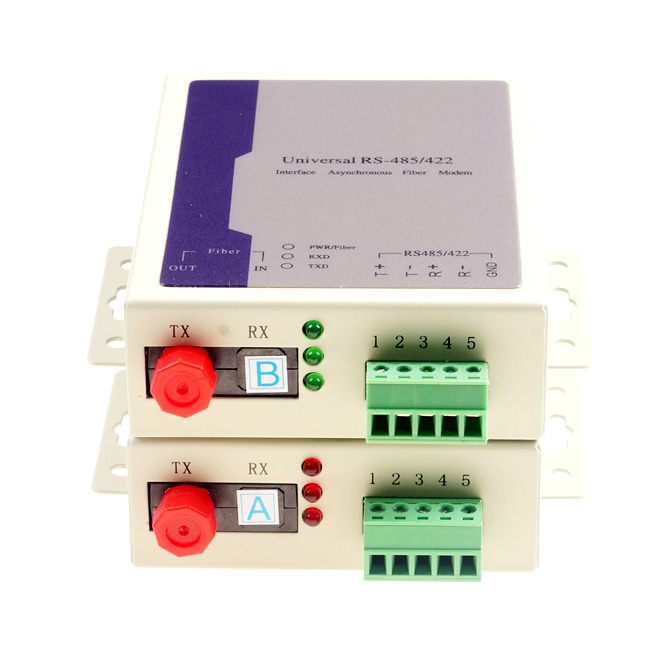

Electronic Fence RS485 Data Fiber Optic Transceiver
电子围栏RS485数据光端机
电子围栏RS485数据光端机
Electronic Fence RS485 Data Fiber Optic Transceiver
电子围栏RS485数据光端机
电子围栏RS485数据光端机
Electronic Fence RS485 Data Fiber Optic Transceiver
Brand: Antongruida
Model: AT-485GD
Features: Supports 1-channel bidirectional half-duplex RS-485 data
Adaptive single/multi-mode fiber
Zero-delay automatic forwarding
Asynchronous transmission, point-to-multipoint application, RS-485 to fiber conversion
Auto-detects serial rate, determines and controls data transmission direction
Max communication rate >500Kbps
5VDC voltage input, external power supply
SC/FC interface optional, SC by default
Working wavelength: 1310nm/1550nm
1500W surge protection and 15KV ESD protection on interface
Multi-mode communication up to 2km, single-mode up to 20km
RS-485 supports 32-point polling
Applications: industrial automation control, access control, one-card systems, parking lots, etc.
  • Photos & Details
  • Specifications

Product name:

Bidirectional RS485 data fiber optic transceiver, 485 fiber extender, bidirectional 485 optical modem / fiber transceiver, model: AT-485GD


Product features:

▲ Simultaneously supports 1-channel bidirectional half-duplex RS-485 data

▲ Auto-adaptive single/multi-mode fiber

▲ Zero-delay automatic forwarding

▲ Asynchronous transmission, point-to-multi-point application, RS-485 interface to fiber conversion

▲ Automatically detects serial port baud rate and judges and controls data transmission direction

▲ Maximum communication rate>500Kbps

▲ 5VDC voltage input, external power supply

▲ SC/FC interface optional, default SC interface

▲ Operating wavelength: 1310nm/1550nm

▲ The interface provides 1500W surge protection and 15KV electrostatic protection

▲ Multi-mode communication reaches 2km, single-mode reaches 20km

▲ RS-485 supports 32-point polling

▲ Application range: industrial automation control, access control, all-in-one card, parking lot and other systems


通讯参数

 RS-485信号:    T+,T-,GND

 RS-422信号:    R+,R-,T+,T-,GND

 光纤信号:     IN,OUT

 工作方式:     异步工作,点对点

 方向控制:     采用数据流向自动控制技术,自动判别和控制数据传输方向

 波特率:      0-500Kbps,自动侦测信号速率

 光纤波长:     1310nm/1550nm

 电口传输距离:  RS-485口1000米

 光口传输距离:  多模2公里,单模20公里

 接口保护:     600W浪涌保护、1500V静电保护

 负载能力:     RS-485口支持32个节点(可定制128点)

 电口形式:     5位接线端子

 工作温度:     -25℃到70℃

 存储温度:     -40℃到85℃

 湿度:        相对湿度 5%到95%

 尺寸:        长×宽×高 100mm×69mm×22mm

 外壳:        铁壳

 颜色:        电脑白

 重量:        230g

 输入电源:     AC220V~5VDC宽电源输入

 功耗:       2W
