Product features:

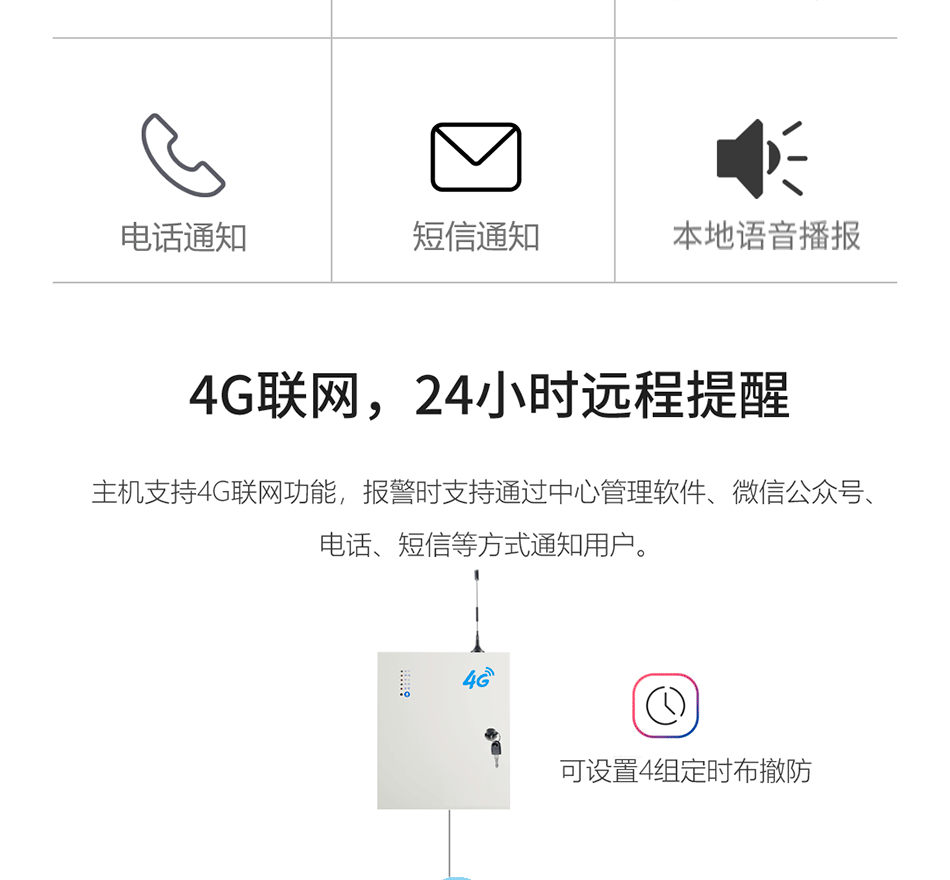

SMS programming: supports voice written by SMS programming, and SMS/phone programming; supports remote control via SMS, phone, WeChat and central software

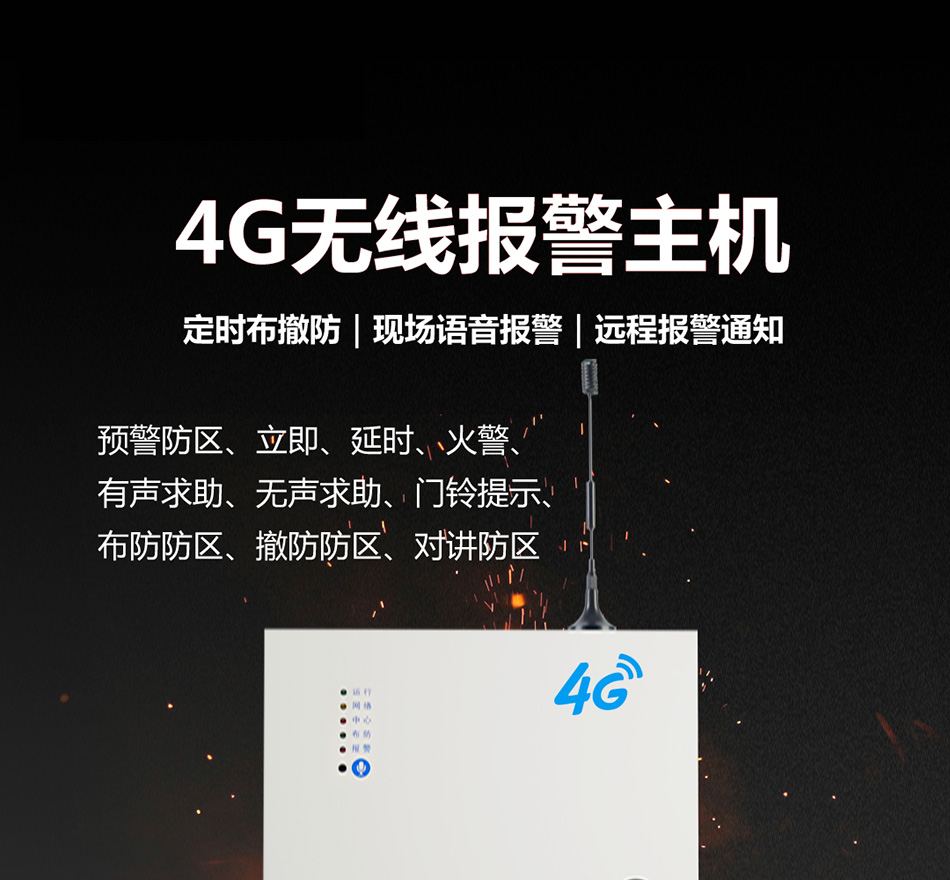

Zone attributes: warning zone, immediate, delayed, fire, audible help, silent help, doorbell prompt, armed zone, disarmed zone, intercom zone
Scheduled functions: supports 4 groups of scheduled arming/disarming, with different scheduled settings for workdays and rest days

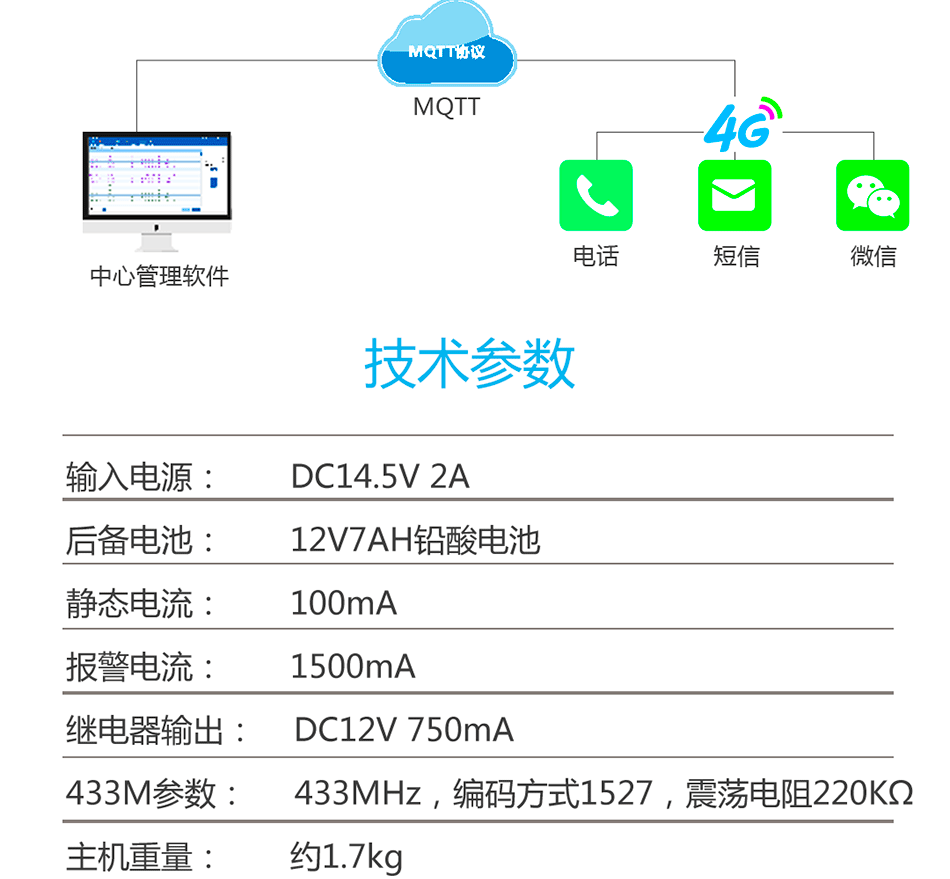

Technical parameters:
Input power: DC14.5V 2A
Backup battery: 12V7AH lead-acid battery (2KG)
Auxiliary output: DC12V 750mA
Alarm status: ≥1500mA (depending on the connected siren and other external devices)
Alarm output: DC12V 500mA
Wired zones: end-of-line resistor 10KΩ
Wireless parameters: 433MHz, 1527 encoding, oscillation resistor 220KΩ

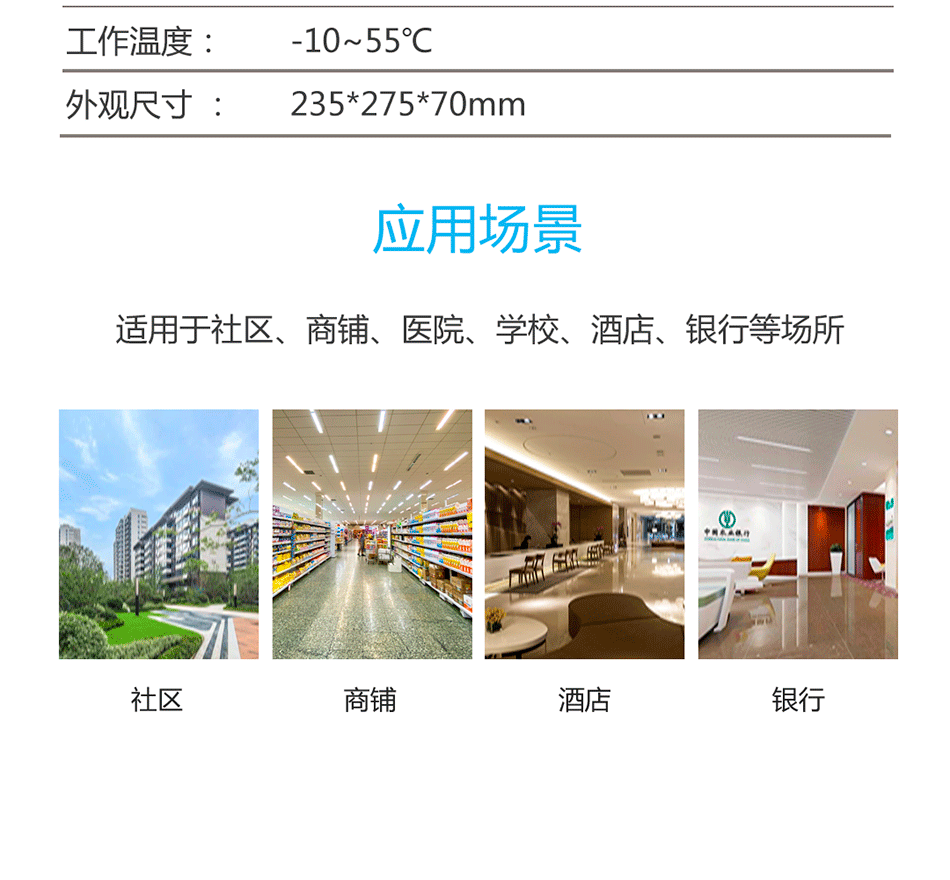

Operating temperature: -10~55℃
Chassis dimensions: 235*275*70 mm
Panel weight: ≥1.7kg
