Brand: QuOwn
Model: ES6800
Features: ● Device zones: up to 500 devices/zones
● Remote controls: up to 16 433M remote controls
● Zone control: up to 16 zones
● Keypads: up to 32 IP network keypads
● Linkage: each zone can independently link 16 zones; zones support linkage operations
  • Photos & Details
  • Specifications

   This device can connect an external display via HDMI. Based on the Linux operating system, it achieves IP alarm receiving through a visual interface, with flexible device connection (based on IP and 433M wireless); it adopts IoT protocols such as UDP and MQTT.


Product advantages:

● Device zones: supports 500 devices/zones

● Remotes: supports up to 16 433M remotes

● Partition control: up to 16 partitions

● Keypads: up to 32 IP network keypads

● Linkage: each zone can individually link 16 zones; partitions support linkage operations

● LED screen: up to 32 (total keypads and LED screens not exceeding 32)

● Alarm prompt: plays through a built-in voice speaker or external audio

● Alarm voice repetitions: 0~5000, configurable

● Alarm type definition: the system provides common alarm types and supports customization

● User permissions: the system can be managed by users with different permissions

● Communication: TCP/IP, supporting UDP and MQTT protocols


Product features:

Operation: supports mouse, keyboard and remote operation; external display via HDMI, resolution 1920 x 1080

Device access: common alarm devices, IP network devices (Electronic Fence, beam detectors, Infrared Gratings, temperature/humidity detectors, leakage cables, magnetic contacts, infrared detectors) and Baidu-cloud access devices

Local maps: up to 64 maps, up to 64 zones per map, up to 64 switches per map

Alarm records: stores up to 1,000,000 records; query over any time period

Data management: supports importing and exporting system data backup via USB drive

Scheduled functions: scheduled functions for time groups, device groups and switch groups, up to 64 groups and no more than 6 time periods per day



Technical parameters:

Processor: ARM, 1.8GHz, 4 cores

System resolution: 1920*1080

System memory: 2GB

Storage capacity: 8GB

Operating system: Linux

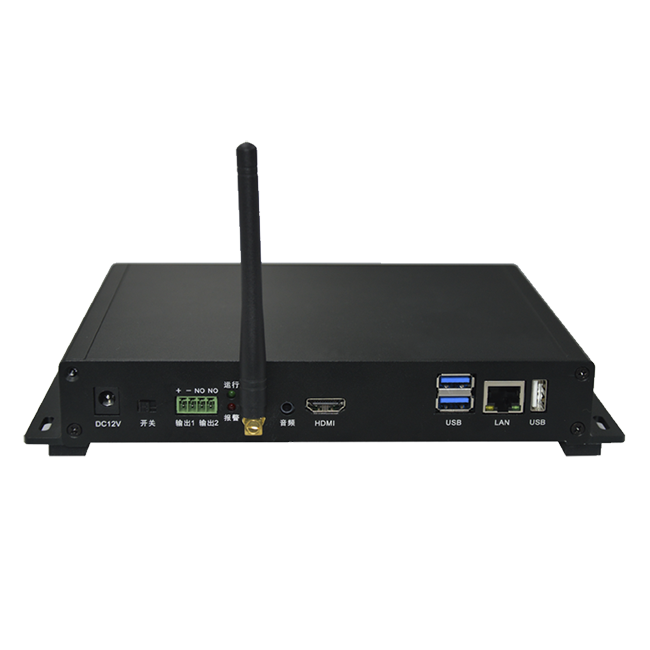

Power interface: DC12V 3A

USB interfaces: 3

Network interface: 1 RJ45

Audio interface: 1 standard 3.5mm audio jack

Antenna interface: 1 433M antenna connector

Video output: 1 HDMI video output

System outputs: 1 active and 1 passive output

Dimensions: 23.5cm x 15.5cm x 4.0cm


Standard accessories:

1 remote (433MHz);  1 antenna;  1 mouse;  1 power adapter (DC12V2A)
