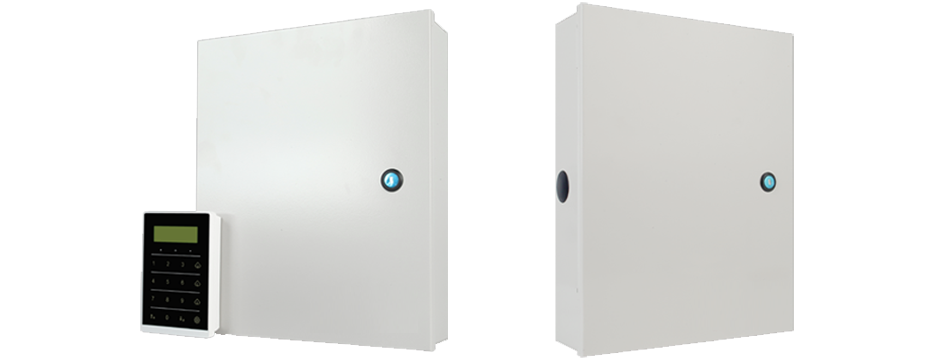

Large Bus Alarm Communication Control Panel

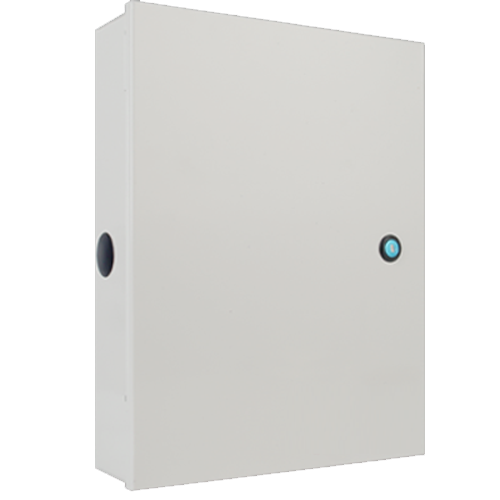

大型总线报警通讯主机
Large Bus Alarm Communication Control Panel
大型总线报警通讯主机
Large Bus Alarm Communication Control Panel
Brand: Antongruida
Model: ES6106C
Features: Supports GPRS, 4G and wired IP network
Supports LORA detector and other terminals
Smartphone control and configuration
Multiple linkage outputs

Low cost, flexible expansion

Supports open protocol
  • Photos & Details
  • Specifications

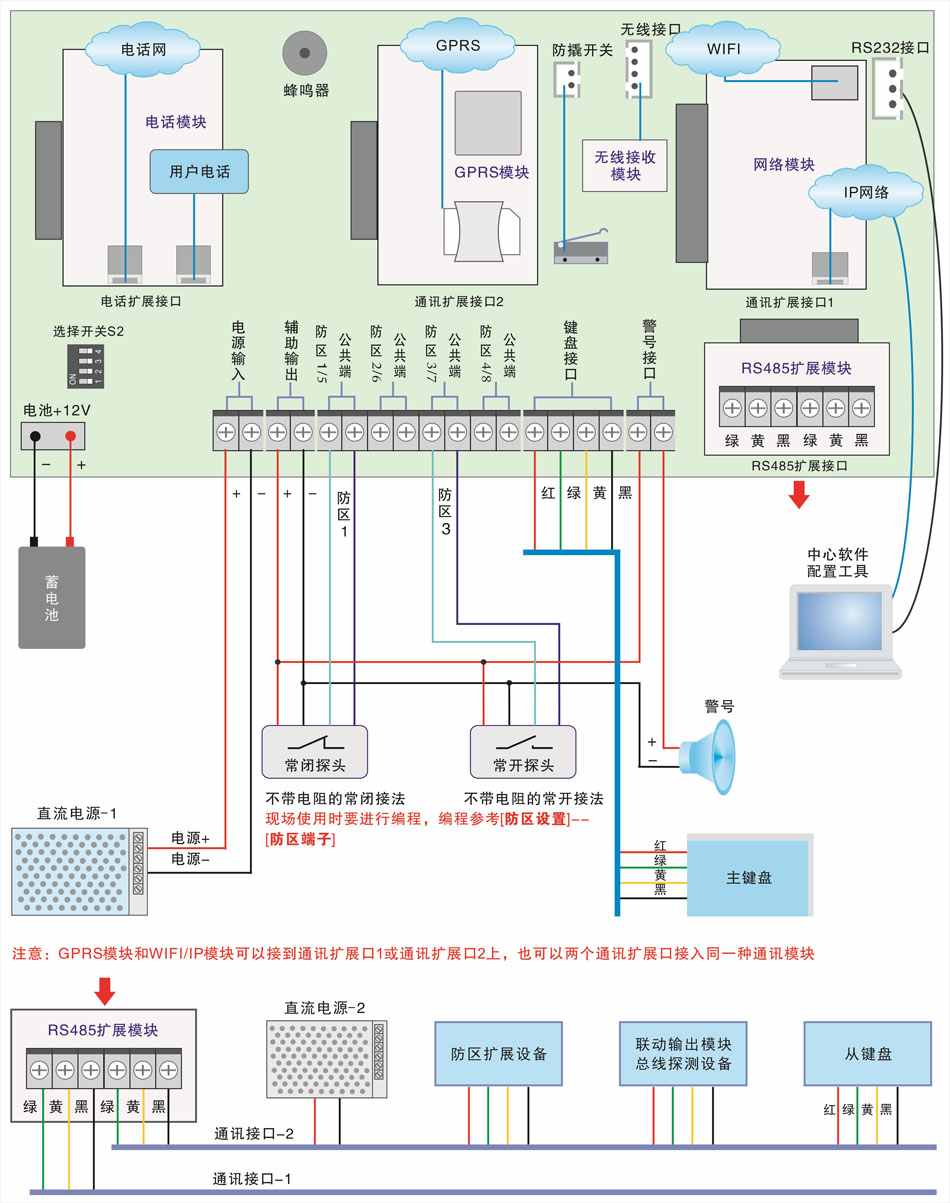

Large Bus Alarm Communication Control PanelLarge Bus Alarm Communication Control Panel wiring diagram

  The Antongruida ES6106C V2.0 alarm system is highly practical and is widely used in villas, residential communities, perimeter alarm systems, office buildings and various large security systems. It supports computer software management, connection to cloud service alarm systems, and easy integration with other systems.


Features

Supports GPRS, 4G and wired IP network

Supports LORA detectors and other terminals

Supports smartphone control and configuration

Supports multiple linkage outputs

Low cost and flexible expansion

Supports open protocols



Function Overview

 Device

The panel has 8 wired zones and can be expanded to 1024 zones; up to 128 linkage devices can be connected, and each linkage output device can drive up to 16 outputs

 Communication

Supports two communication buses, each up to 1.2km. It connects to cloud service alarm systems via WiFi/IP and GPRS modules; external WiFi/IP and GPRS modules can be added, and it connects to central software computers via RS232 or IP.

 Networking

Supports mobile APP and WeChat control. Supports 3 independent telephone alarm receiving centers and 4 IP network alarm receiving centers.


产品参数

※ 报警输入 : 本机自带8个,可总线扩展至1024个

※ 联动输出 :  可扩展至128*16个

※ 分区(子系统) : 8个键盘分区和128个设备分区

※ 报警输出 :  开关量输出(接点容量DC24V1A/AC110V1A)

※ 辅助电源 :  DC 12V/1A

※ 通讯总线 :  2路,RS-485接口

※ 总线设备数 : 128个,每个设备最多8个防区

※ 键盘总线 :  1个,RS485双向半双工

※ 通讯总线 :  2个,RS485双向半双工

※ 打 印 机 :  支持1台,接到键盘接口

※ 电 源 :   AC 220V

※ 工作温度 :  -10℃-- +55℃

※ 工作湿度 :  10%-- 90%

※ 尺 寸 :   335 x2 75 x 80mm

※ 重 量 :   2.1kg
