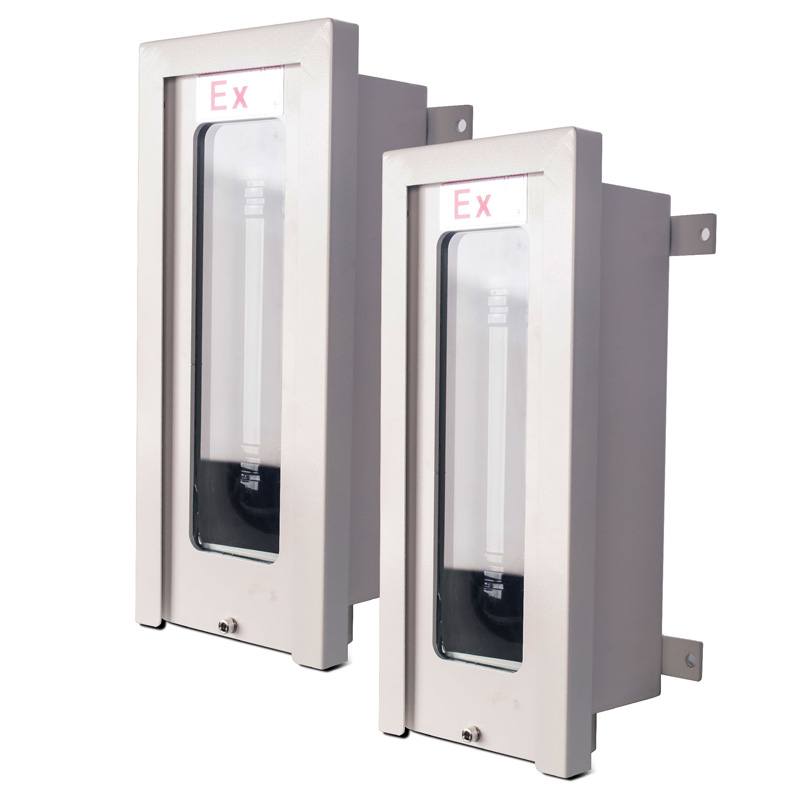

3-Beam Explosion-Proof Infrared Beam Detector
Brand: Quan'an
Model: ABE-EX100
Features: 1. Housing is die-cast from quality aluminum alloy or welded from steel plate, surface treated by high-speed shot blasting then powder electrostatic spraying; bright colors, beautiful appearance;
2. Designed per national standard; wall-mount and ceiling-mount installation available (brackets in wall-mount and pole-mount types);
3. All fasteners use corrosion-resistant 304 stainless steel;
4. Cabling: steel pipe, cable or explosion-proof hose;
5. Special customization available per customer requirements;
6. Compatible with any domestic or international PLC controller or Antongruida alarm control panel.
  • Photos & Details
  • Specifications

Technical parameters:

1. Model: ABE-EX100

2. Detector distance: 40/60/80/100 meters

3. Number of beams: 3 beams

4. Blocking mode: simultaneous interruption of 3 beams

5. Explosion-proof type: flameproof

6. Explosion-proof grade: ExdIICT6Gb

7. Protection grade: IP66

8. Thread specification: DN15-DN-100

9. Rated operating voltage (V/DC/AC): 12V-24VDC AC220V, minimum power: 3W

10. Sensing speed: 50-700ms (adjustable)

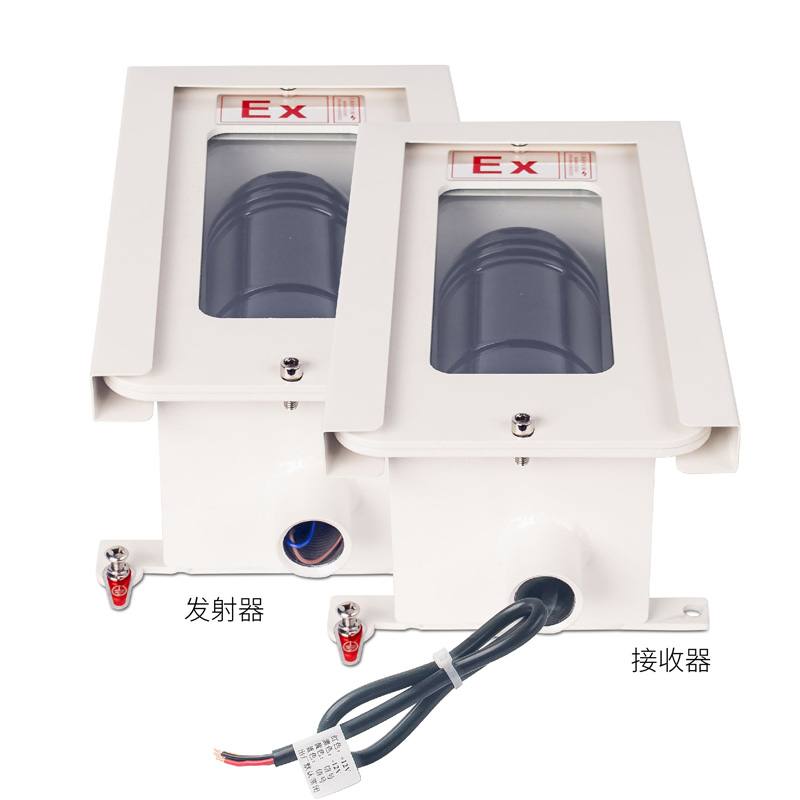

11. Current consumption: transmitter + receiver <=85mA

12. Operating temperature (deg C): -25 to +55 deg C

13. Alarm output: relay contact 1C (COM, NC, NO)

14. Tamper output: normally closed, opens when the housing is removed

15. Dimensions (mm): 250*163*115mm (with housing)


Product features:

1. This product's housing is die-cast from high-quality carbon steel, and its surface is shot-blasted at high speed then powder-coated, with vivid color and a beautiful appearance;

2. Designed according to national standards, it can be wall-mounted or ceiling-mounted (brackets are available in wall-mounted and pole-mounted types);

3. All fasteners are made of highly corrosion-resistant 304 stainless steel;

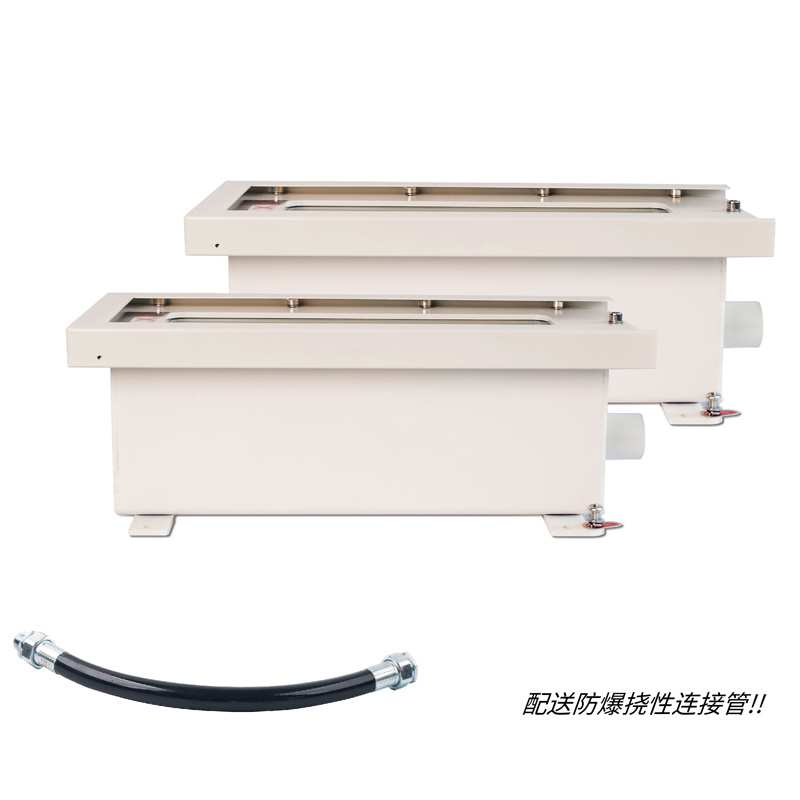

4. Wiring method: steel conduit, cable or explosion-proof flexible conduit are all acceptable;

5. Can be specially customized according to customer requirements;

6. Can be used with controllers of any domestic or foreign PLC manufacturer, or with the Alarm Control Panel produced by Antongruida;



Application scope:

1. Suitable for hazardous locations of Zone 1 and Zone 2 in explosive gas atmospheres;

2. Suitable for Class IIC explosive gas atmospheres;

3. Suitable for combustible dust Zone 20, 21, 22;

4. Suitable for environments with temperature class T6;


1、本产品外壳采用优质铝合压铸或钢板焊接成型,表面经高速抛丸后粉尘静电喷塑,颜色鲜明,外观美丽;

2、采用国家标准设计,可选择壁挂式安装和吊顶式安装(支架分为壁挂式和立杆式);

3、所有紧固件均采用抗强腐蚀的304不锈钢材质;

4、布线方式,钢管或电缆、防爆软管均可;

5、可根据客户要求特殊定制;

6、可以和国内外任何一家PLC厂家控制器或者安通瑞达公司出品的报警控制主机配套使用;
