1. The industry's first pulse host with a color display showing the host's working status; the screen size is 4.3 inches, intuitive and elegant, highlighting bidding advantages;
2. The LCD uses a screen-saver mode: after 2 minutes of no operation the host turns off the LCD, greatly reducing power consumption and improving efficiency, in line with national energy-saving and environmental-protection requirements for electronic products. It can also mislead intruders into thinking the host is powered off when acting illegally, achieving a better deterrent effect.
3. Host parameters (such as zone number, high-voltage output amplitude, period, etc.) can be modified via the host control panel;
4. The power supply adopts a wide-voltage input range, adapting to usage environments worldwide (AC 100~260V), superior to the power input requirement of traditional electric fence hosts (AC 180~220).
5. The high-voltage output levels are adjustable: 0.7KV, 2.5KV, 3.0KV, 3.5KV, 4.0KV, 4.5KV, 5.0KV, allowing users to set a suitable pulse high voltage according to different environments; the host can also be set to output timed voltages in different time periods via the remote control terminal;
6. The pulse period is freely adjustable, with a minimum of 1s (national standard requirement);
7. The host's high-voltage output adopts New Zealand stafix technology, so that every wire on the front-end fence carries high-voltage pulse electricity, leaving intruders no opportunity. This technology has the following advantages: 1. At the same output voltage, the shock intensity is stronger than with traditional BI-Polar technology (per actual customer experience); 2. Higher high-voltage output efficiency;
8. The LCD shows rich content: host working status, pulse period, pulse amplitude, alarm status, output high-voltage waveform, zone number, power supply status, real-time system time, etc.;
9. The host has a built-in alarm siren; when the host triggers an alarm, the siren sounds to prompt staff to handle the alarm, superior to traditional hosts.
10. The host provides switch output and DC12V2A auxiliary power output interfaces. Traditional fence hosts are DC12V1A and can connect only one alarm, while DC12V2A means two alarms can be connected.
11. The host has a built-in 12V 4AH battery interface, with an endurance of up to 10 hours; higher-capacity batteries can also be equipped as needed.
12. Reasonable wiring design for construction and easy installation;
13. The (4-wire, 6-wire) host can arm and disarm independently internally, industry-leading;
14. Communication uses the traditional 485 bus method; multi-level networking can be achieved through the control keypad or control software;
15. The appearance adopts unique patented technology, concise, elegant and beautiful.

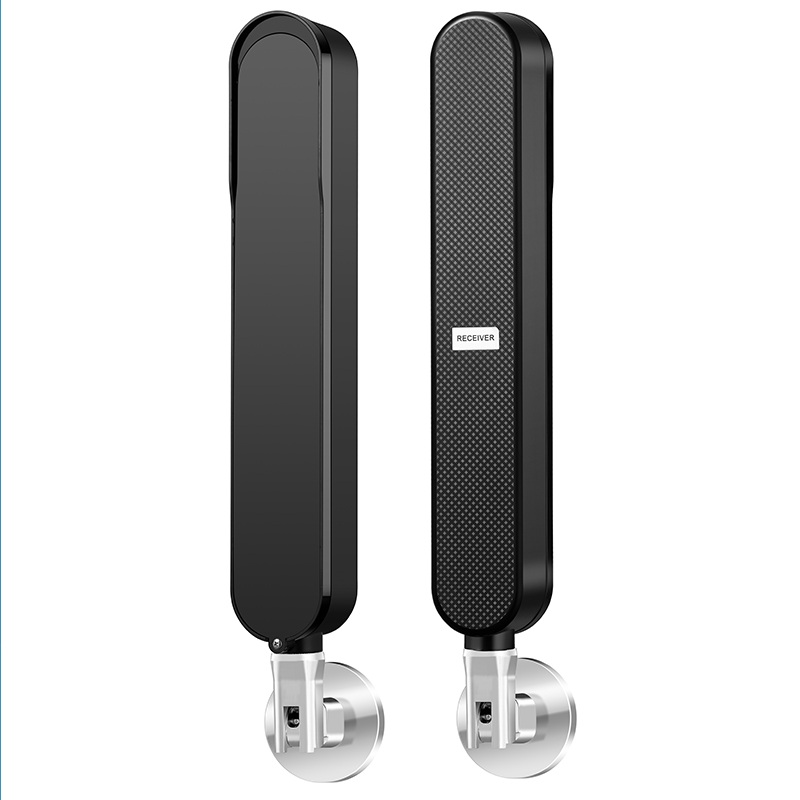

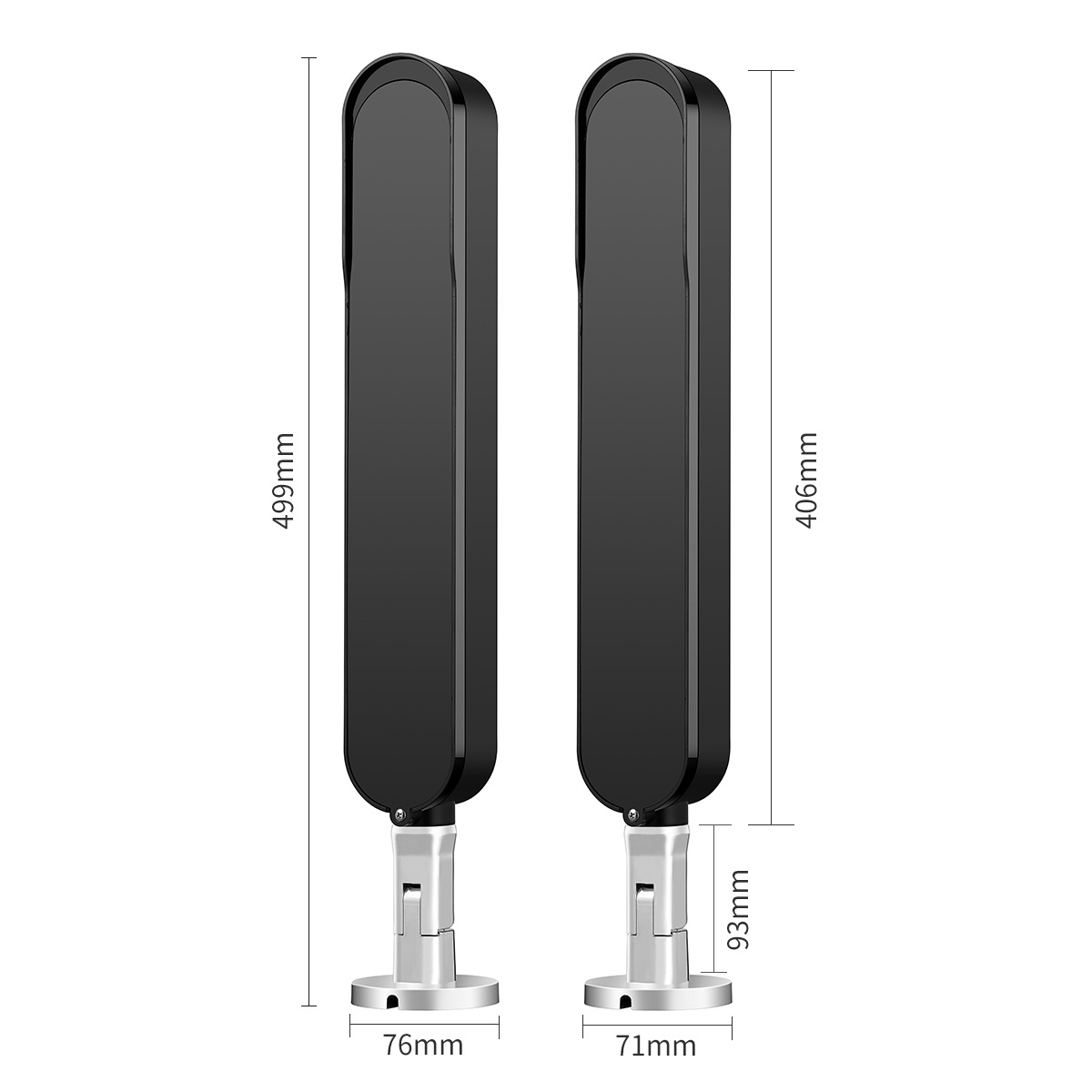

4光束一体化数码光电探测器（ABF4-50,ABF4-100,ABF4-150,ABF4-200,ABF4-250)全新结构设计，自带安装支架，安装方便快捷;
■数字变频功能，采用行业领先的4段变频数码光电技术，彻底解决了红外对射在复杂条件下安装时相互干扰的行业难题;
■设计红外信号三次处理功能(可媲美AGC功能)，确保功率余度达90%以上，应对风、雨、霜、雪、雾、潮、太阳直射等恶劣天气更加游刃有余;
■纯正数字CPU控制电路通过CPU控制发射与接收，大功率光电发射、接收管，低功耗数字变频处理技术、减少误报、杜绝漏报;
■宽电压设计，真正解决线路降压问题，供电电压值在DC12~24V/AC9~16V之间，便于集中供电;
■防拆开关，外壳移去时打开;·高度密封防水:IP65
■广角光学校准范围:水平360°(土180° )，垂直90°
