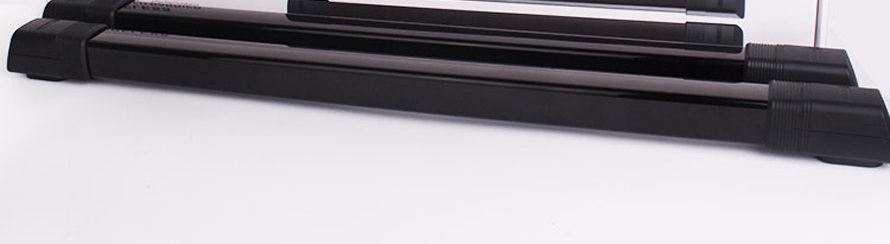

Wireless Infrared Grating Detector
Wireless Infrared Grating Detector
Wireless Infrared Grating Detector
Brand: Antongruida, Quan'an
Model: ABI10-482W
Features: 1. Fully wireless design, opening a new era of active infrared; breaks free from traditional design and boldly "removes wires".
2. One-step installation: say NO to complex wiring! Easier installation!
3. Ultra-long battery life: one battery lasts 4 years. Ultra-low-power wireless grid, working current down to microamp level.
4. Million-level encoding chip, no loopholes: million-level wireless encoding, 1 million pairs without code duplication, 433MHz frequency, secure and loophole-free.
5. Intelligent fuzzy control: industry-leading signal processing and intelligent fuzzy logic analysis, smart sensing of human signals — no more false alarms.
  • Photos & Details
  • Specifications

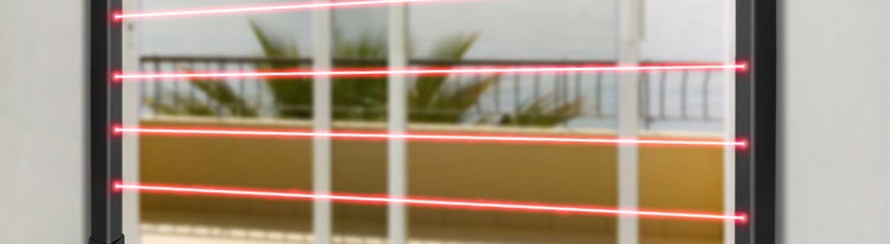

1. Pure wireless design, opening a new era of active infrared. With original craftsmanship, it breaks free from traditional design, boldly removes wiring, and opens a new era of active infrared.

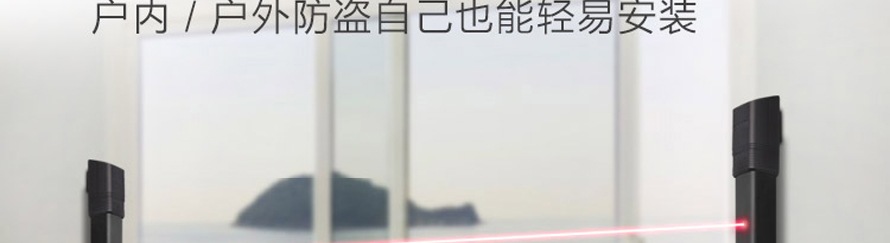

2. Simple one-step installation: say NO to complex wiring, making installation easier!

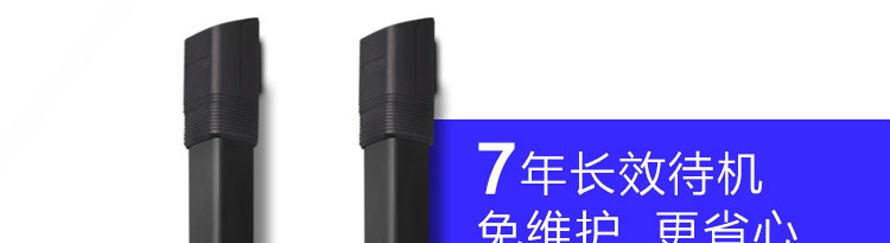

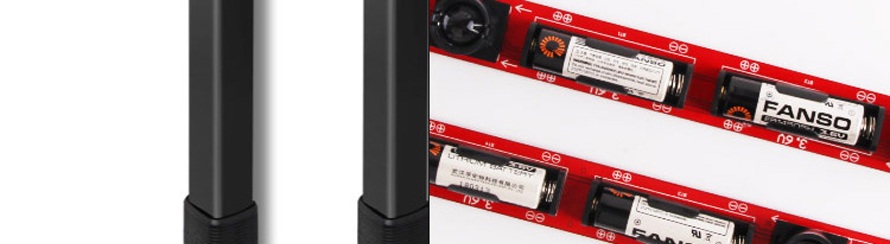

3. Ultra-long battery life, one battery lasts 4 years

The wireless grating adopts an ultra-low-power design with operating current as low as the microampere level; one battery for 4 years of peace of mind.

4. Million-code chip, secure without loopholes

Data is encoded through million-level wireless coding; 1 million pairs of gratings have no duplicate codes, with 433MHz wireless frequency, secure without loopholes.

5. Intelligent fuzzy control technology, saying goodbye to false alarms

Adopts industry-leading signal processing technology and intelligent fuzzy logic analysis to intelligently sense human signals, saying goodbye to false alarms from now on.


无线红外光栅探测器产品参数:

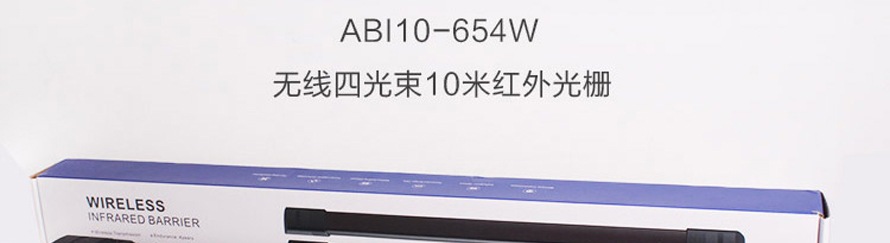

型号:        ABI10-482W             ABI10-654W

光束:        二光束                四光束

探测方式: 两光束同时遮断               单组二光束或四光束同时遮断

尺寸:        39*39*462.3mm           39*39*648.3mm

触时时间:≥40ms

最大探测距离:10米

无线频率:433MHz

无线距离:空旷100米

待机电流:从机<60uA 主机<100uA

续航时间:4年

防水等级:IP66

报警电流:0.3mA
