1. The industry's first pulse host with a color display showing the host's working status; the screen size is 4.3 inches, intuitive and elegant, highlighting bidding advantages;
2. The LCD uses a screen-saver mode: after 2 minutes of no operation the host turns off the LCD, greatly reducing power consumption and improving efficiency, in line with national energy-saving and environmental-protection requirements for electronic products. It can also mislead intruders into thinking the host is powered off when acting illegally, achieving a better deterrent effect.
3. Host parameters (such as zone number, high-voltage output amplitude, period, etc.) can be modified via the host control panel;
4. The power supply adopts a wide-voltage input range, adapting to usage environments worldwide (AC 100~260V), superior to the power input requirement of traditional electric fence hosts (AC 180~220).
5. The high-voltage output levels are adjustable: 0.7KV, 2.5KV, 3.0KV, 3.5KV, 4.0KV, 4.5KV, 5.0KV, allowing users to set a suitable pulse high voltage according to different environments; the host can also be set to output timed voltages in different time periods via the remote control terminal;
6. The pulse period is freely adjustable, with a minimum of 1s (national standard requirement);
7. The host's high-voltage output adopts New Zealand stafix technology, so that every wire on the front-end fence carries high-voltage pulse electricity, leaving intruders no opportunity. This technology has the following advantages: 1. At the same output voltage, the shock intensity is stronger than with traditional BI-Polar technology (per actual customer experience); 2. Higher high-voltage output efficiency;
8. The LCD shows rich content: host working status, pulse period, pulse amplitude, alarm status, output high-voltage waveform, zone number, power supply status, real-time system time, etc.;
9. The host has a built-in alarm siren; when the host triggers an alarm, the siren sounds to prompt staff to handle the alarm, superior to traditional hosts.
10. The host provides switch output and DC12V2A auxiliary power output interfaces. Traditional fence hosts are DC12V1A and can connect only one alarm, while DC12V2A means two alarms can be connected.
11. The host has a built-in 12V 4AH battery interface, with an endurance of up to 10 hours; higher-capacity batteries can also be equipped as needed.
12. Reasonable wiring design for construction and easy installation;
13. The (4-wire, 6-wire) host can arm and disarm independently internally, industry-leading;
14. Communication uses the traditional 485 bus method; multi-level networking can be achieved through the control keypad or control software;
15. The appearance adopts unique patented technology, concise, elegant and beautiful.
电性参数：

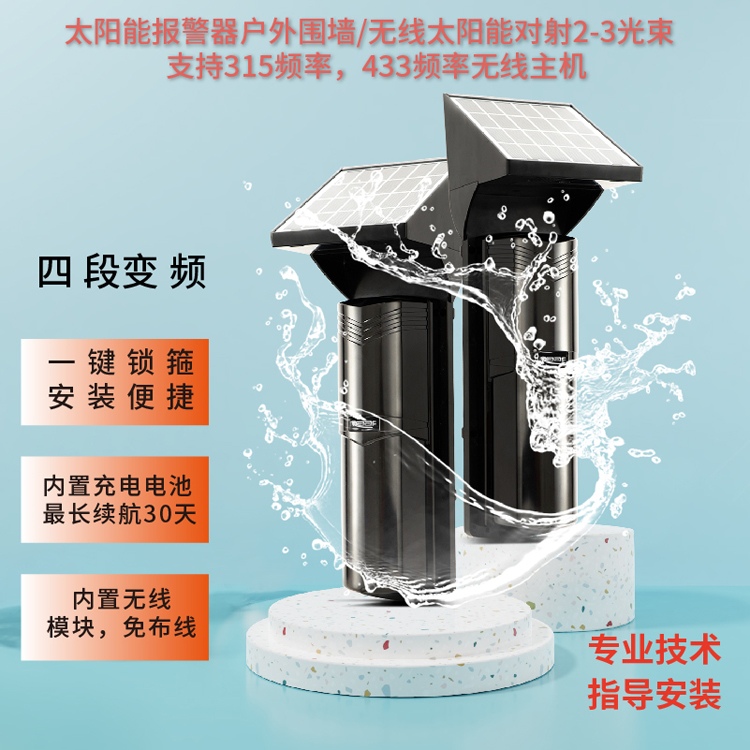

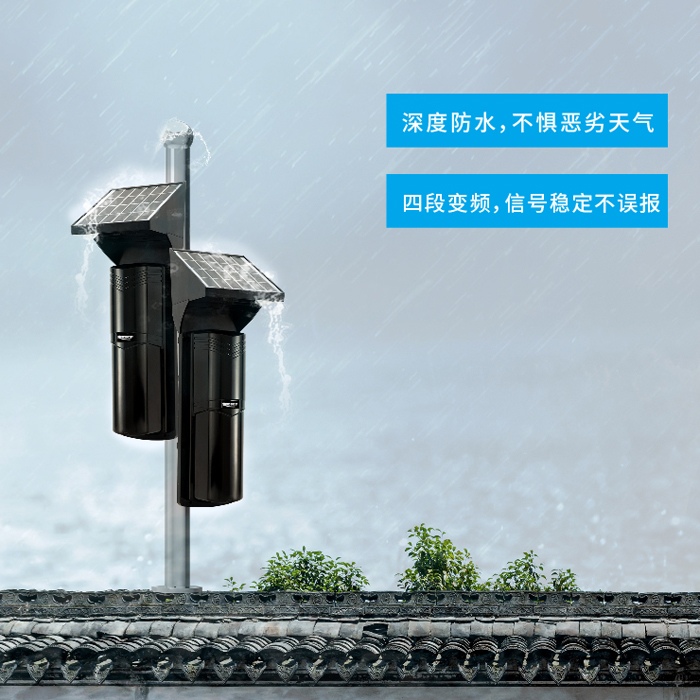

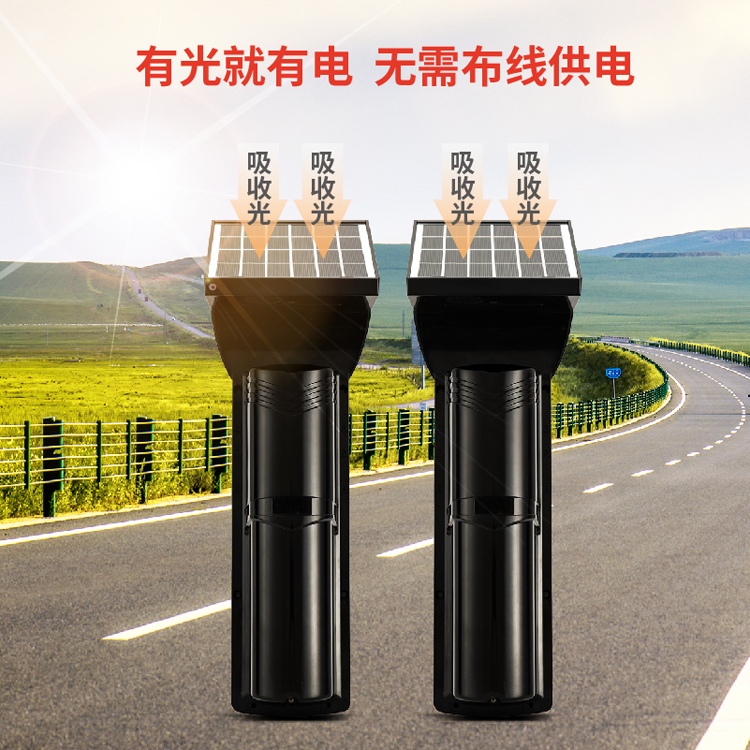

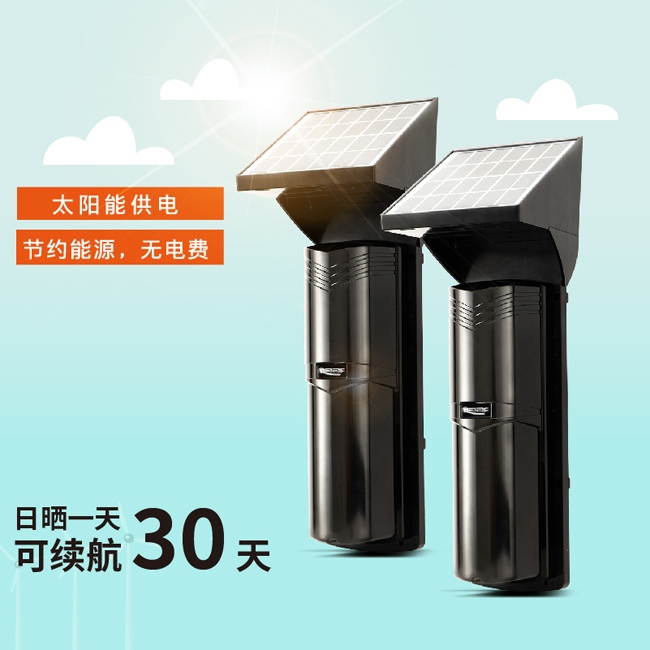

产品名称：①2光束、②3光束太阳能无线红外对射
室外警戒距离：①60-100米、②50-200米
红外光束数量：①2光束-型号ABT-60/100、②3光束-型号ABE-50/100/200
探测报警方式：红外光遮挡报警（无线315频率，1527芯片，330振荡电阻）
光源：普通数字滤波式光源
感应速度：35-700m/sec
报警输出：常开/常闭可选
工作电流：200mA/对
工作电压：DC12-18V
工作温度：-20℃~55℃
工作湿度：相对湿度≤95% 非凝露
重量：1.2Kg
变频太阳能无线对射，变频功能，四段频率可调，适合更多种应用的C型继电器，太阳能供电及微功耗节能设计，有效节约电能，高度密封防水：IP65，数字滤波，环境自适应功能，误报率降至最低，射束干扰最低化，可适合用于各种复杂环境。高容量储存电池，采用单晶太阳能板，大功率无线发射频率（433/315）可选。复杂远距离环境可选配LORA模块。
