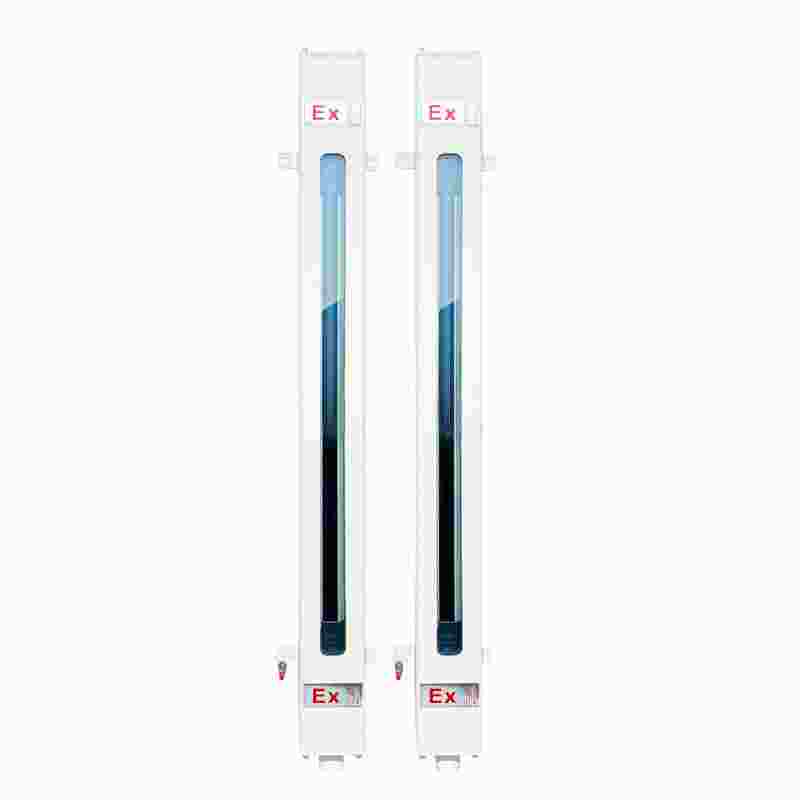

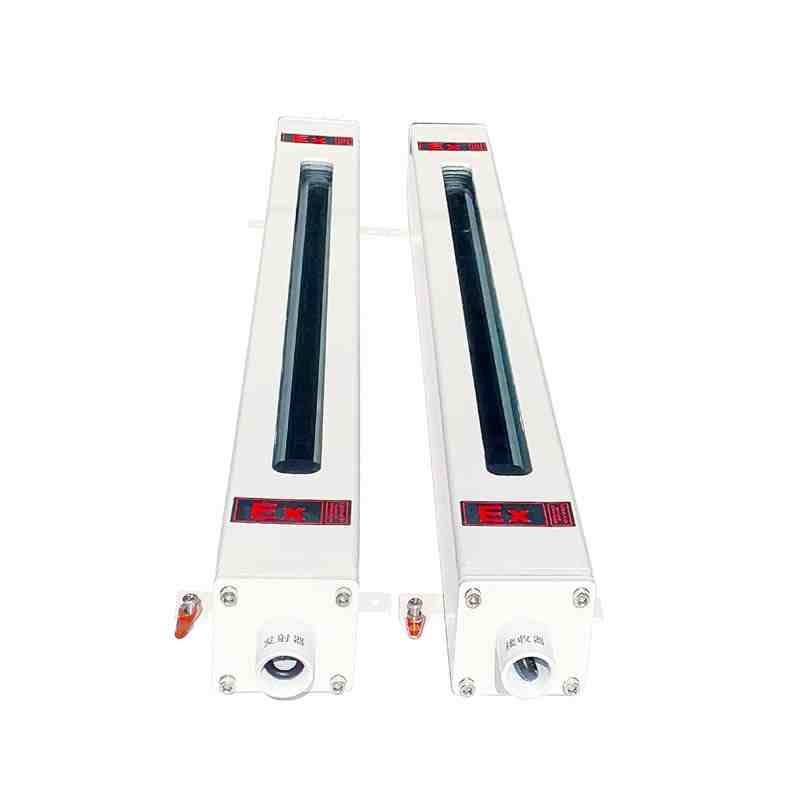

Four-Beam Explosion-Proof Infrared Grating Barrier
Four-Beam Explosion-Proof Infrared Grating Barrier
Four-Beam Explosion-Proof Infrared Grating Barrier
Brand: Quan'an
Model: ABI-EX4
Features: Protection rating: IP66
Cable outlet hole: DN20, G-3/4, 6分, ф10-ф14
Suitable for explosive gas atmospheres Zone 1 and Zone 2;
Suitable for IIA, IIB, IIC explosive gas atmospheres;
Suitable for temperature groups T1-T6;
Complies with national standard GB3836-2010;
Explosion-proof rating Ex d IIC T6Gb;

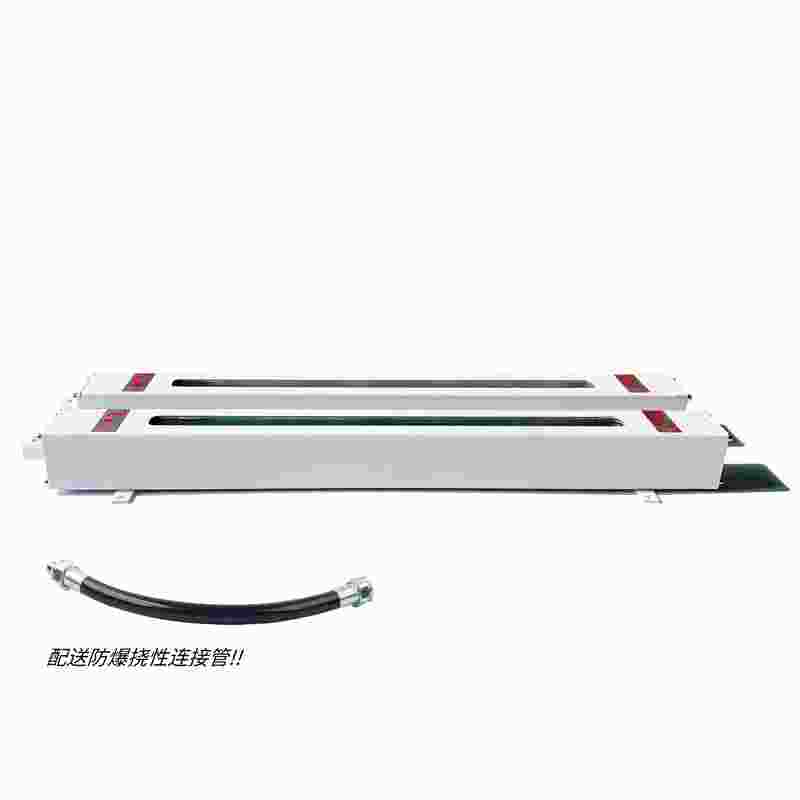

Includes 50cm explosion-proof conduit
Suitable for installation in explosive gas environments with IIC T6 temperature group (urban underground utility tunnels, hazardous chemical warehouses, military strategic reserve warehouses, petrochemical tank farms, military facilities, etc.)
  • Photos & Details
  • Specifications

Protection rating: IP66

Cable entry specification: DN20, G-3/4, 6 points, phi10-phi14

Suitable for hazardous locations of explosive gas zones 1 and 2;

Suitable for IIA, IIB and IIC explosive gas atmospheres;

Suitable for temperature classes T1-T6;

Compliant with national standard GB3836-2010;

Explosion-proof grade Ex d IIC T6Gb;

Includes a 50-cm explosion-proof tube

Suitable for installation in explosive gas atmosphere locations with IIC T6 temperature class (urban underground utility tunnels, hazardous chemical warehouses, military strategic reserve depots, petrochemical tank farms, military facilities, etc.)



防护等级:IP66

出线孔规格:DN20,G-3/4,6分,ф10-ф14

适用于爆炸性气体环境1区、2区危险场所;

适用于IIA、IIB、IIC级爆炸性气体环境;

适用于温度组别为T1-T6的环境;

符合国家标准《GB3836-2010》;

防爆等级Ex d IIC T6Gb;

含50公分防爆管

适用于安装在含有IIC级T6温度组别的爆炸性气体环境场所(城市地下综合管廊、危化品仓库、军队战略储备库、石油化工罐区、军工设施等场所)
