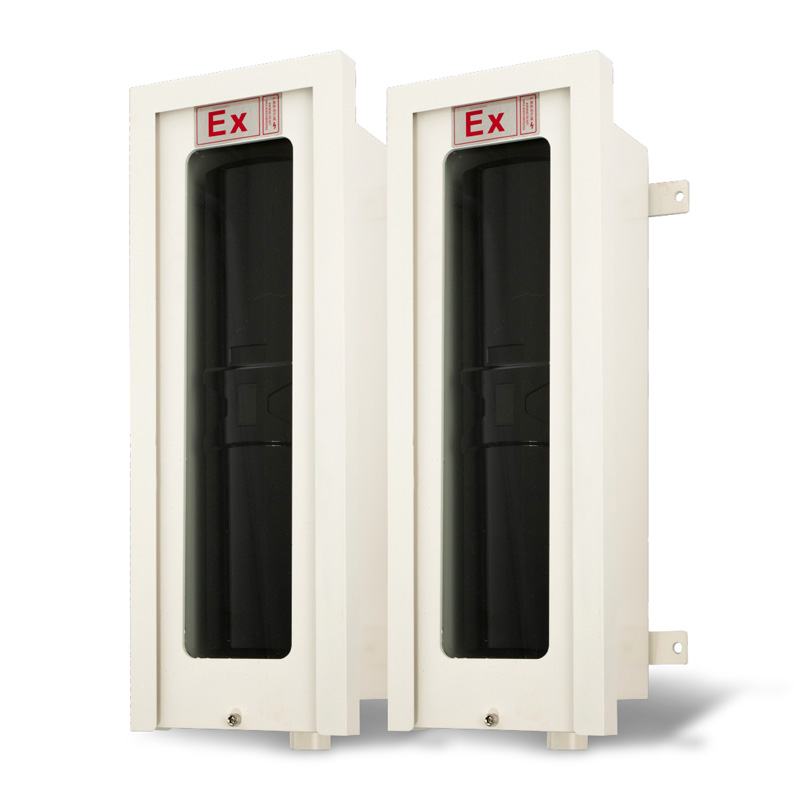

- Photos & Details

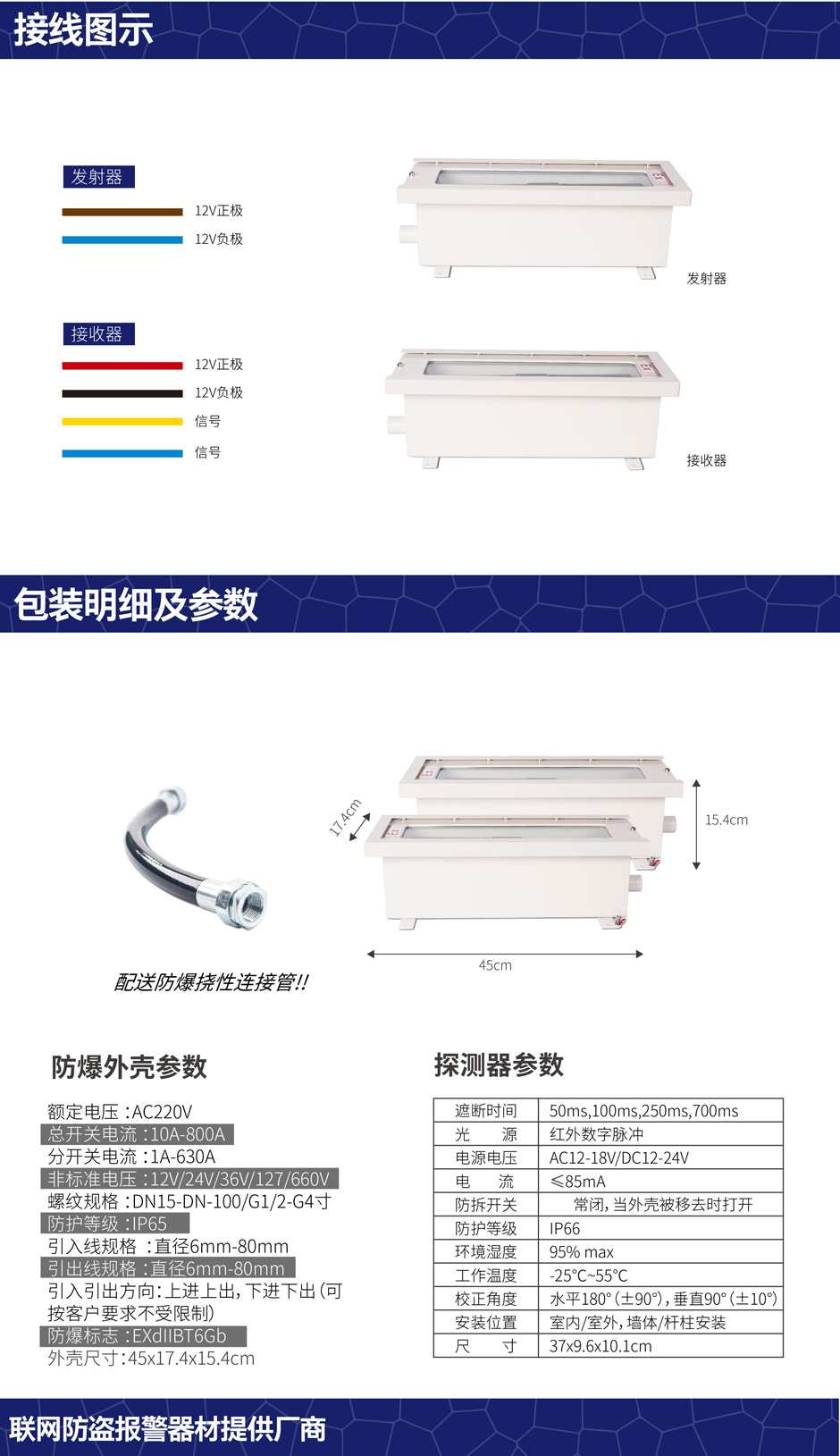

- Specifications

Technical parameters:
1. Model: ABH-EX100
2. Detector distance: 40/60/80/100 meters
3. Number of beams: 4 beams
4. Blocking mode: simultaneous interruption of 4 beams
5. Explosion-proof type: flameproof
6. Explosion-proof grade: ExdIICT6Gb
7. Protection grade: IP66
8. Thread specification: DN15-DN-100
9. Rated operating voltage (V/DC/AC): 12V-24VDC AC220V, minimum power: 3W
10. Sensing speed: 50-700ms (adjustable)
11. Current consumption: transmitter + receiver <=85mA
12. Operating temperature (deg C): -25 to +55 deg C
13. Alarm output: relay contact 1C (COM, NC, NO)
14. Tamper output: normally closed, opens when the housing is removed
15. Dimensions (mm): 450*174*154mm (with housing)
Product features:
1. This product's housing is die-cast from high-quality carbon steel, and its surface is shot-blasted at high speed then powder-coated, with vivid color and a beautiful appearance;
2. Designed according to national standards, it can be wall-mounted or ceiling-mounted (brackets are available in wall-mounted and pole-mounted types);
3. All fasteners are made of highly corrosion-resistant 304 stainless steel;

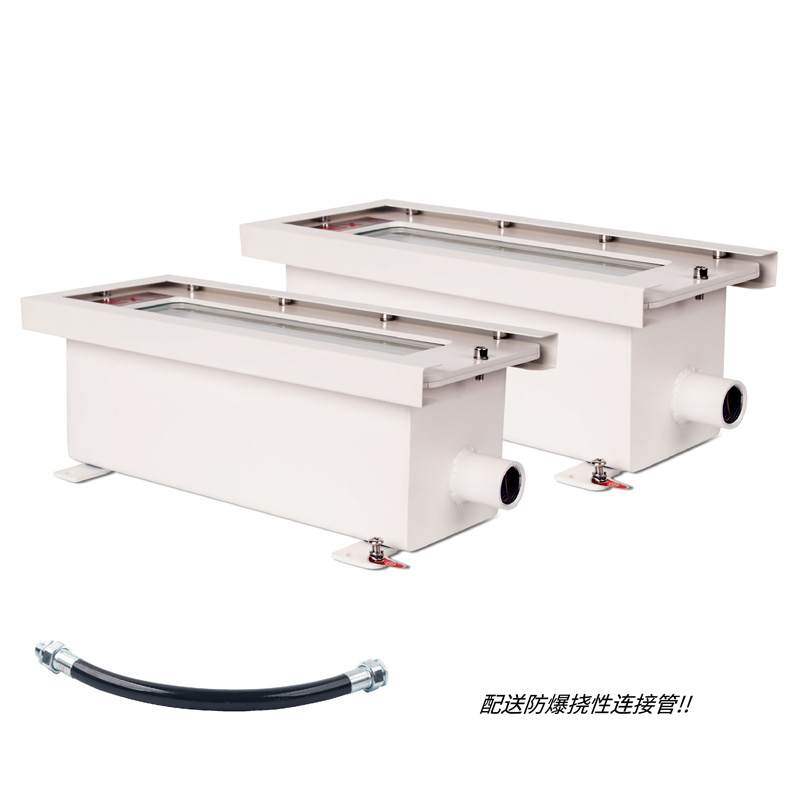

4. Wiring method: steel conduit, cable or explosion-proof flexible conduit are all acceptable;
5. Can be specially customized according to customer requirements;
6. Can be used with controllers of any domestic or foreign PLC manufacturer, or with the Alarm Control Panel produced by Antongruida;
Application scope:
1. Suitable for hazardous locations of Zone 1 and Zone 2 in explosive gas atmospheres;
2. Suitable for Class IIC explosive gas atmospheres;
3. Suitable for combustible dust Zone 20, 21, 22;
4. Suitable for environments with temperature class T6;
1、本产品外壳采用优质铝合压铸或钢板焊接成型,表面经高速抛丸后粉尘静电喷塑,颜色鲜明,外观美丽;
2、采用国家标准设计,可选择壁挂式安装和吊顶式安装(支架分为壁挂式和立杆式);
3、所有紧固件均采用抗强腐蚀的304不锈钢材质;
4、布线方式,钢管或电缆、防爆软管均可;
5、可根据客户要求特殊定制;
6、可以和国内外任何一家PLC厂家控制器或者安通瑞达公司出品的报警控制主机配套使用;
