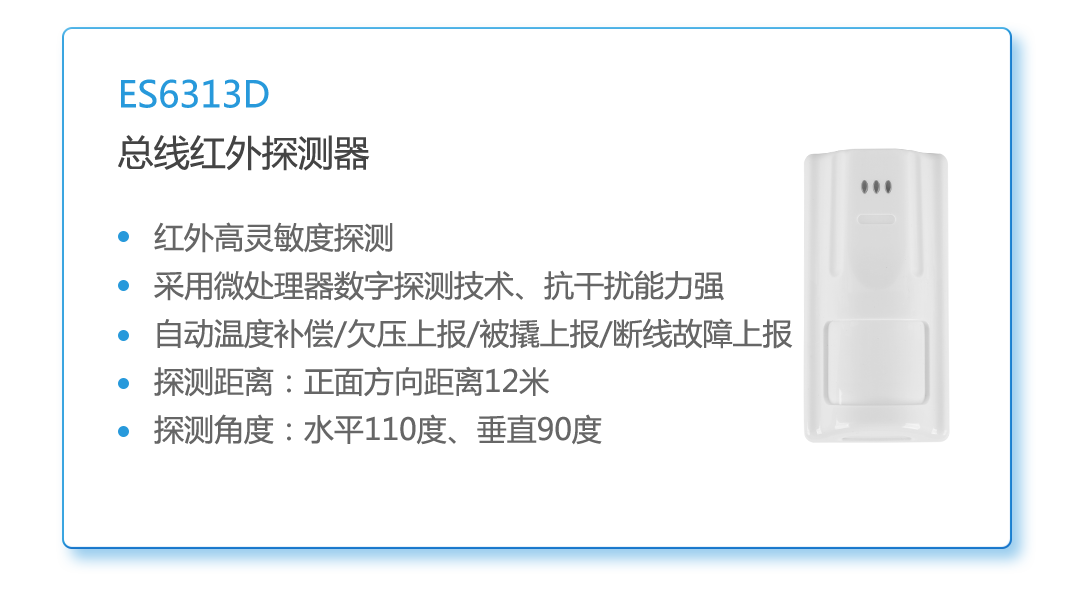

The ES6313D is an infrared detector that combines bus communication and standalone operation. Using infrared technology plus microprocessing, it ensures accurate alarms. It features fast response, high accuracy and wide coverage; it can connect to a remote bus Alarm Control Panel via the bus, with bus communication protection circuits and under-voltage and anti-tamper functions. The product is suitable for high-end homes, offices, shopping malls, banks, schools, libraries, warehouses and other important places.
Product features:
Detection range: 12 m straight ahead of the detector
Data reporting: under-voltage reporting, tamper reporting
Temperature compensation: automatic temperature compensation
Strong anti-interference: anti-white-light interference, surface-mount technology, anti-EMI/RFI and anti-RF interference (22 V/m at 10 MHz-1 GHz)
No blind zone: with a lower viewing window, no blind zone
Selectable mode: bus mode / standalone mode selectable

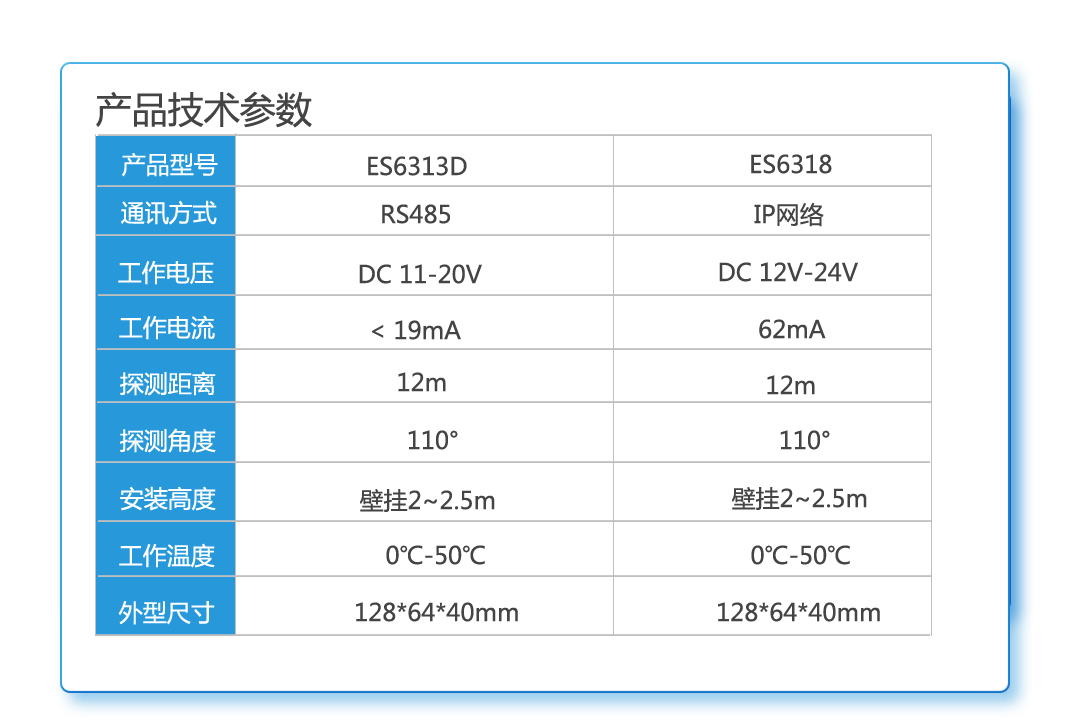

Technical parameters:
Operating voltage: DC 11-20V
Operating current: < 19mA
Operating temperature: 0℃-50℃
Operating humidity: 0-95% (no condensation)
Dimensions: 128 x 64 x 40 mm
Installation:
Basic installation requirements
1) Avoid installing outdoors, near air conditioners or heat sources, or where objects block the detection area.
2) The mounting surface should be solid and free of vibration.
3) The wall temperature at the installation point should preferably be the same as or close to the temperature of the monitored area and the floor.
4) Install the detector where intruders are likely to pass.
5) Detector installation height: 2.1-2.7 m
