Tri-tech Explosion-proof PIR Detector
三鉴防爆红外探测器
三鉴防爆红外探测器
Tri-tech Explosion-proof PIR Detector
三鉴防爆红外探测器
三鉴防爆红外探测器

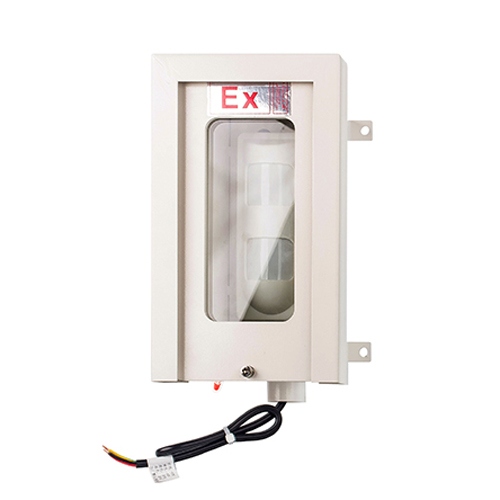

Tri-tech Explosion-proof PIR Detector
Brand: Antongruida
Model: ABT-EX3

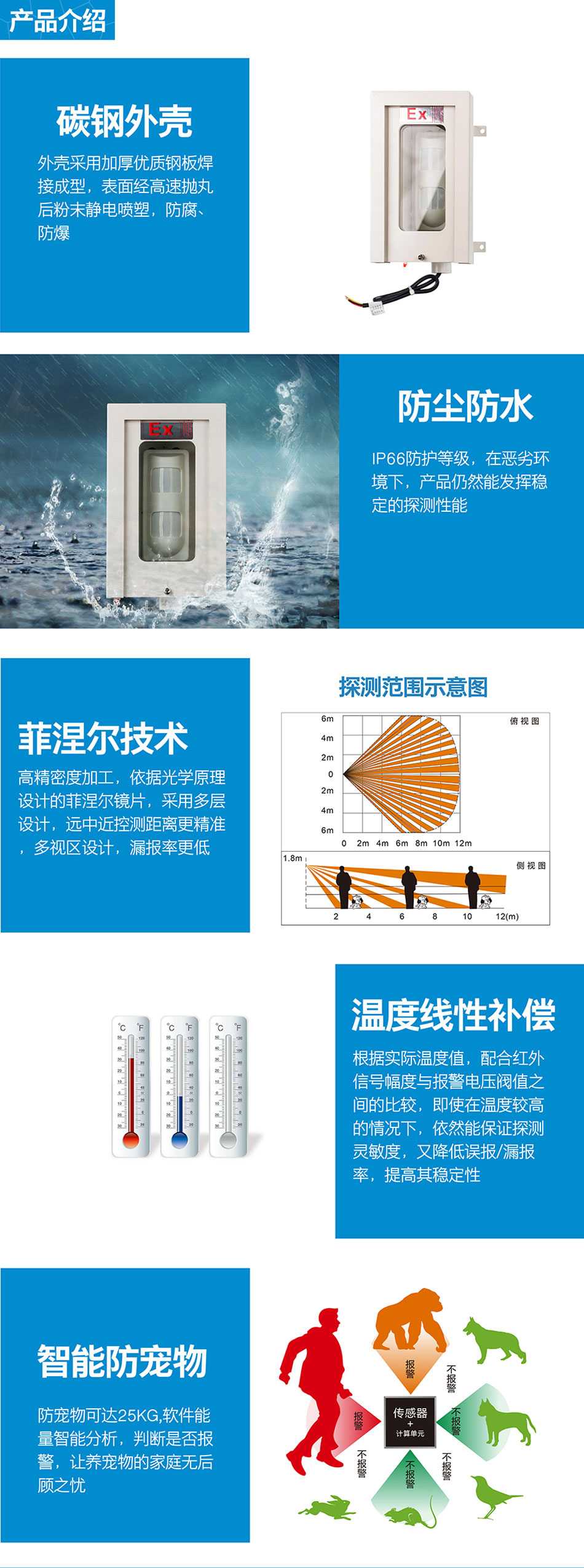

Features: Carbon steel housing
Thickened quality steel plate welded housing, surface treated by high-speed shot blasting then powder electrostatic spraying — corrosion-proof and explosion-proof.
  • Photos & Details
  • Specifications

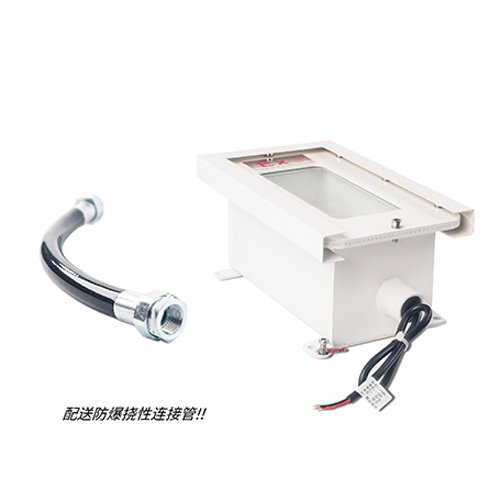

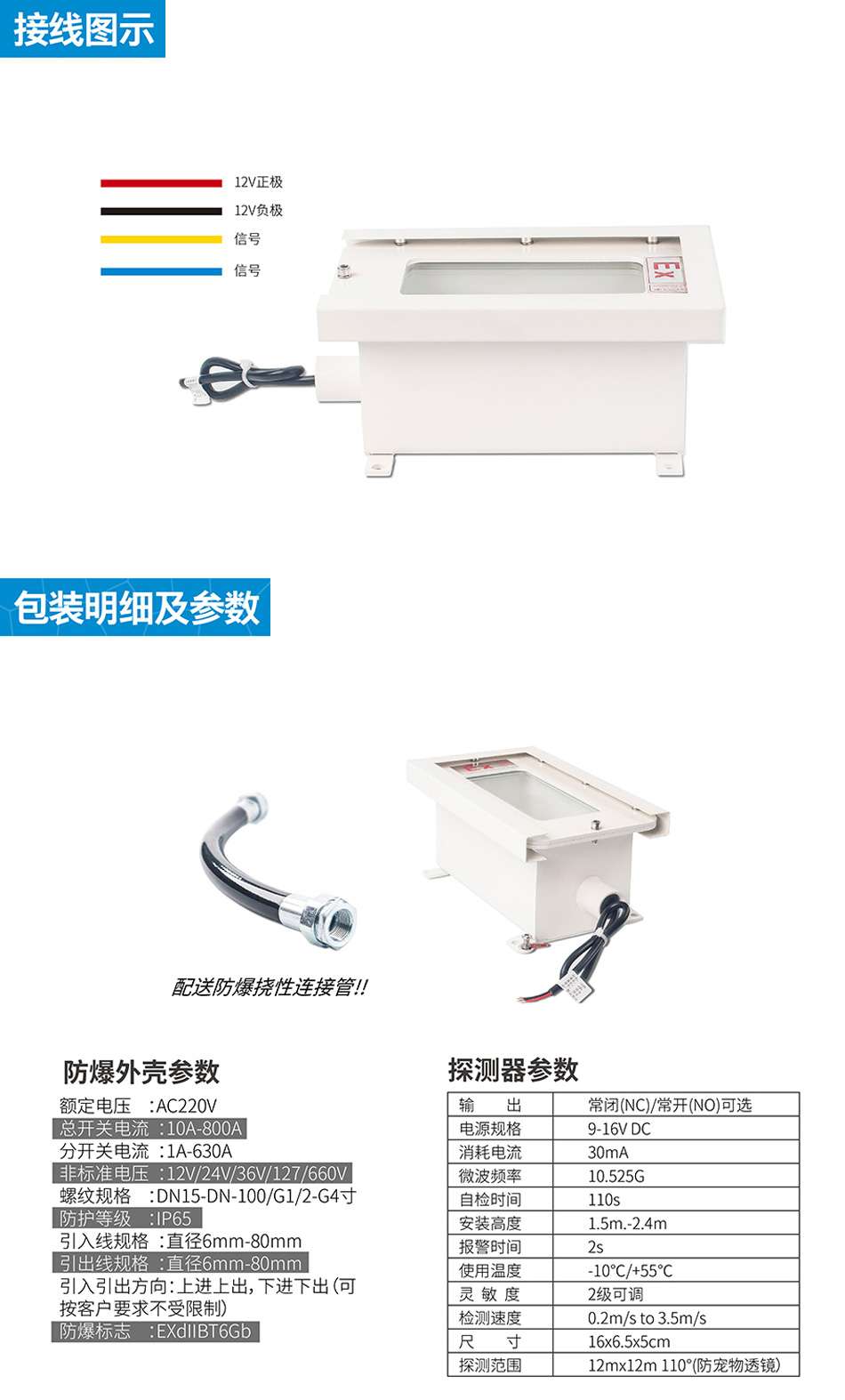

Explosion-proof Housing Parameters:

Rated voltage: AC220V

Main switch current: 10A-800A

Branch switch current: 1A-630A

Non-standard voltage: 12V/24V/36V/127/660V |

Thread specification: DN15-DN100/G1/2-G4 inch

Protection rating: IP65

Cable entry specification: diameter 6mm-80mm

Cable exit specification: diameter 6mm-80mm

Entry/exit direction: top-in top-out, bottom-in bottom-out (can

be customized per customer requirements without restriction)

Explosion-proof mark: EXdIIBT6Gb


Detector Parameters:

Output: normally closed (NC) / normally open (NO) optional

Power supply: 9-16V DC

Current consumption: 30mA

Microwave frequency: 10.525G

Self-check time: 110s

Installation height: 1.5m-2.4m

Alarm time: 2s

Operating temperature: -10°C/+55°C

Sensitivity: 2 levels adjustable

Detection speed: 0.2m/s to 3.5m/s

Dimensions: 16x6.5x5cm

Detection range: 12m x 12m, 110° (pet-immune lens)


防爆外壳参数:

额定电压:AC220V

总开关电流:10A-800A 1

分开关电流:1A-630A

非标准 电压: 12V/24V/36V/127/660V |

螺纹规格:DN15-DN- 100/G1/2-G4寸

防护等级:IP65

引入线规格: 直径6mm-80mm

引出线规格: 直径6mm-80mm

引入引出方向:上进上出,下进下出(可

按客户要求不受限制)

防爆标志:EXdIIBT6Gb


探测器参数:

输出:常闭(NC)/常开(NO)可选

电源规格:9-16V DC

消耗电流:30mA

微波频率:10.525G

自检时间:110s

安装高度:1.5m.-2.4m

报警时间:2s

使用温度:-10*C/+55°C

灵敏度:2级可调

检测速度:0.2m/s to 3.5m/s

尺寸:16x6.5x5cm

探测范围:12mx12m 110*(防宠物透镜)
