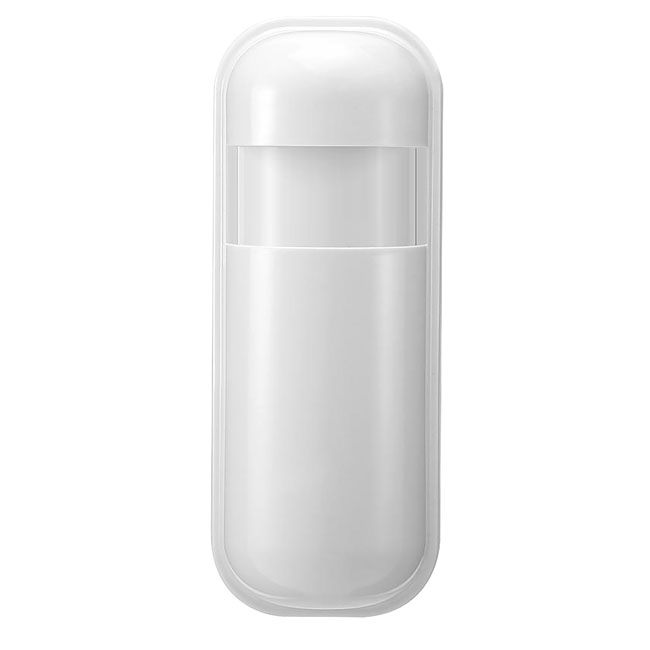

PIR Motion Detector
Brand: Quan'an
Model: TD-H03
Features: PIR human infrared detector
Model: TD-H03
  • Photos & Details
  • Specifications

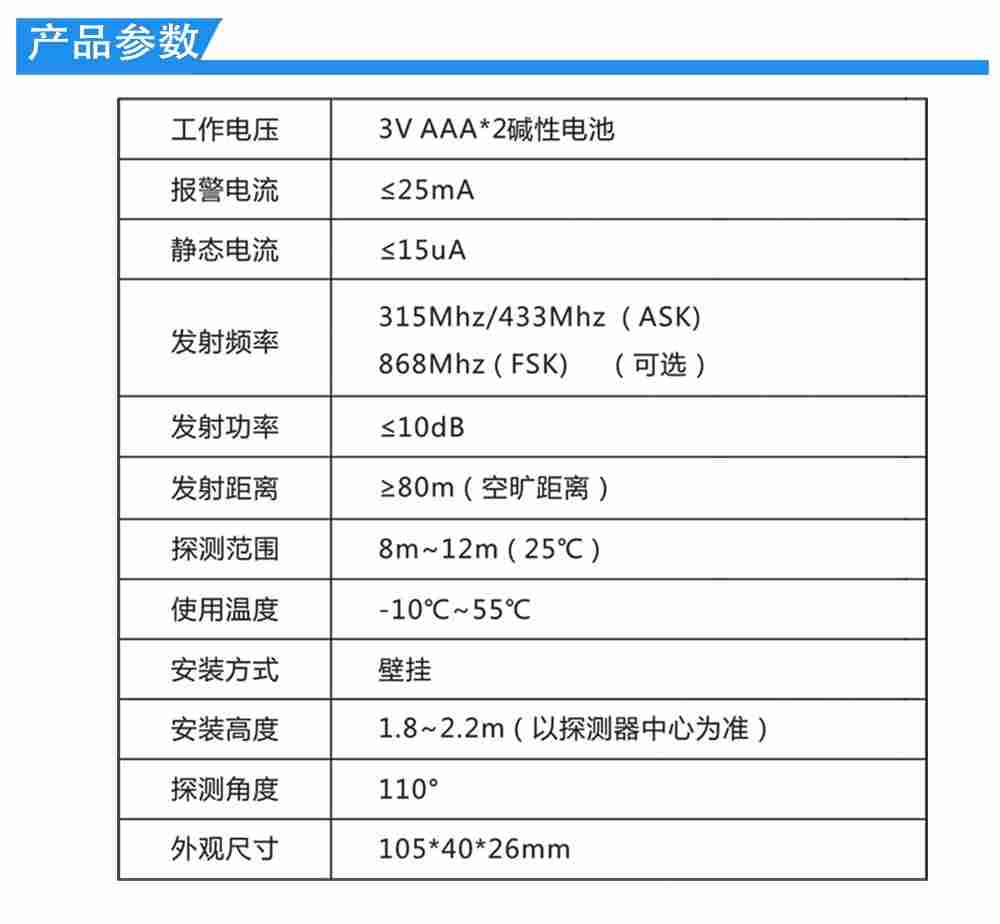

产品参数

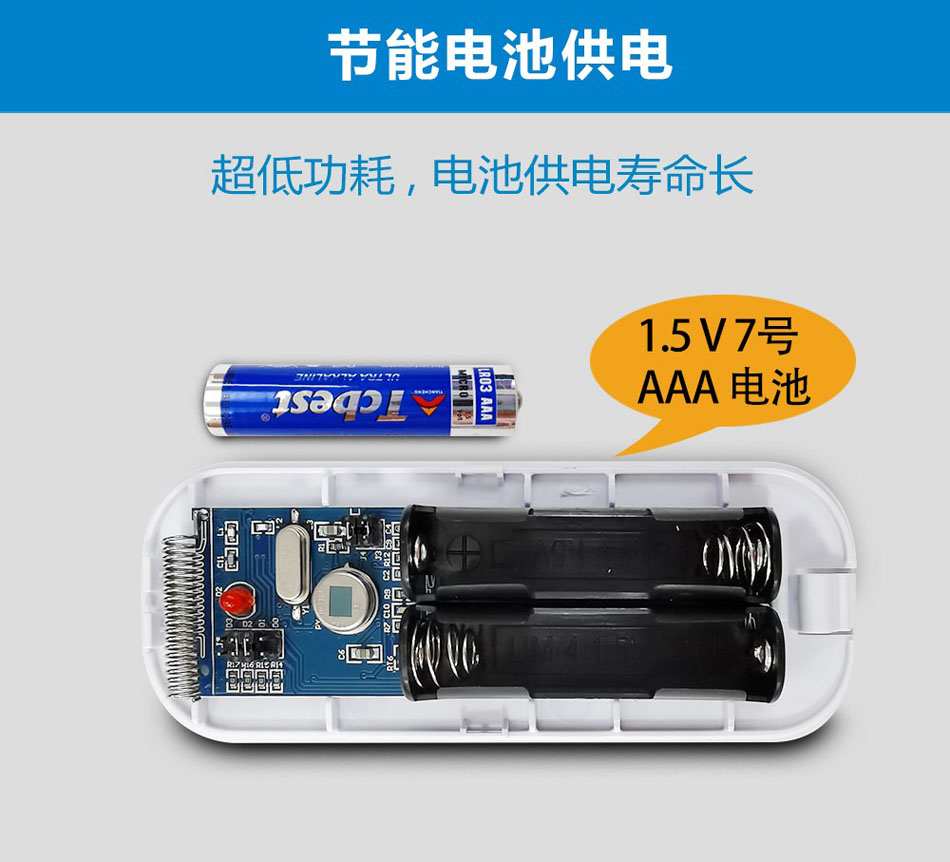

>工作电压:3V AAA*2 碱性电池

>发射功率:≤ 10dB

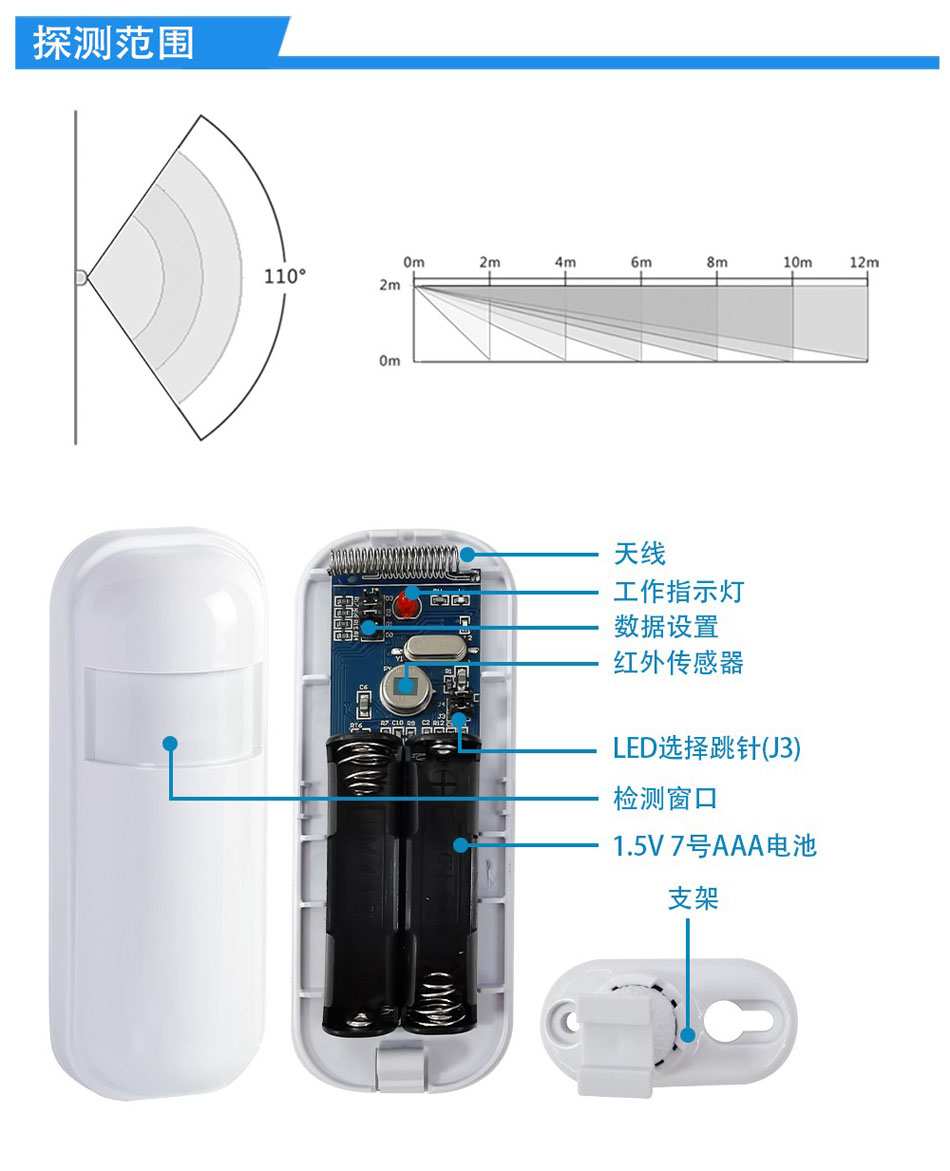

>探测范围:8m~12m (25℃ )

>使用温度:-10℃ ~55℃

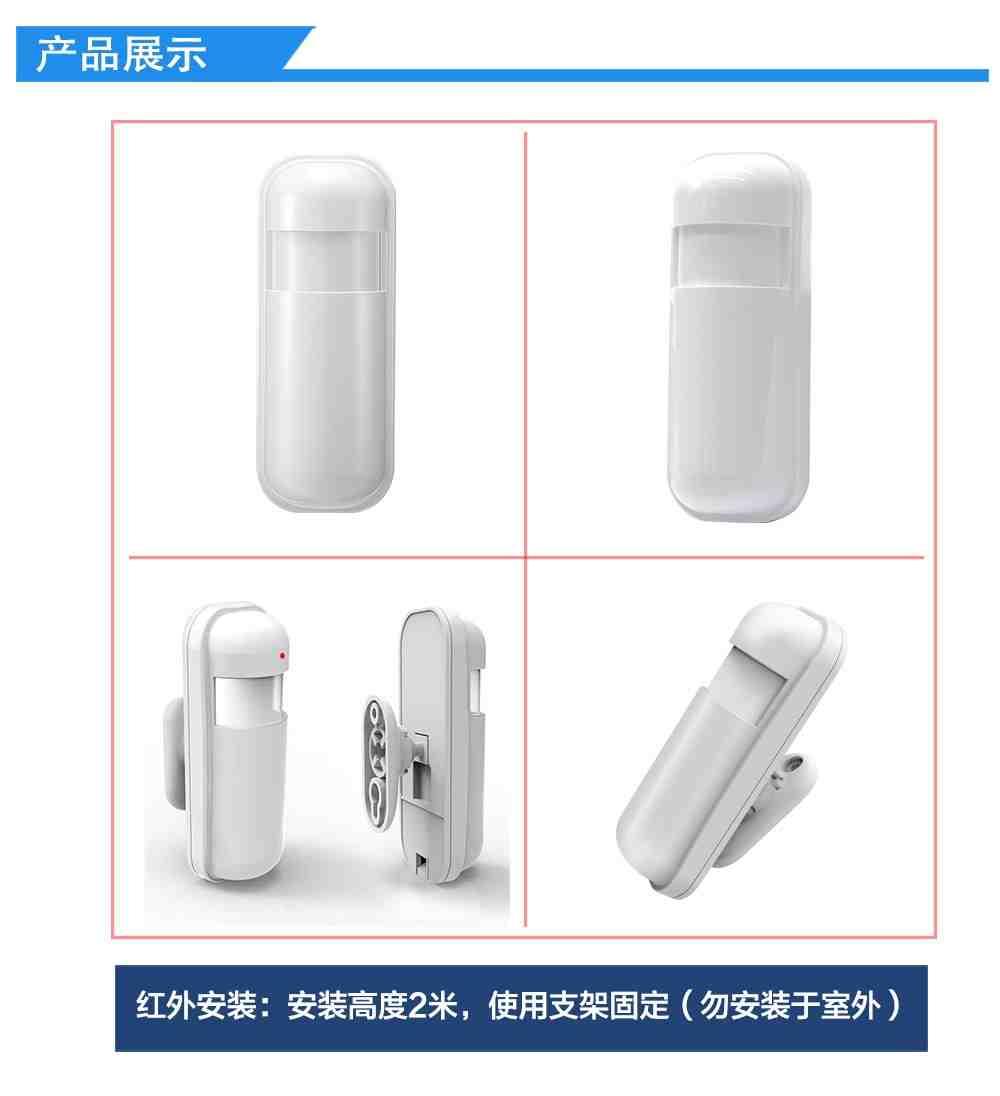

>安装高度:1.8~2.2m

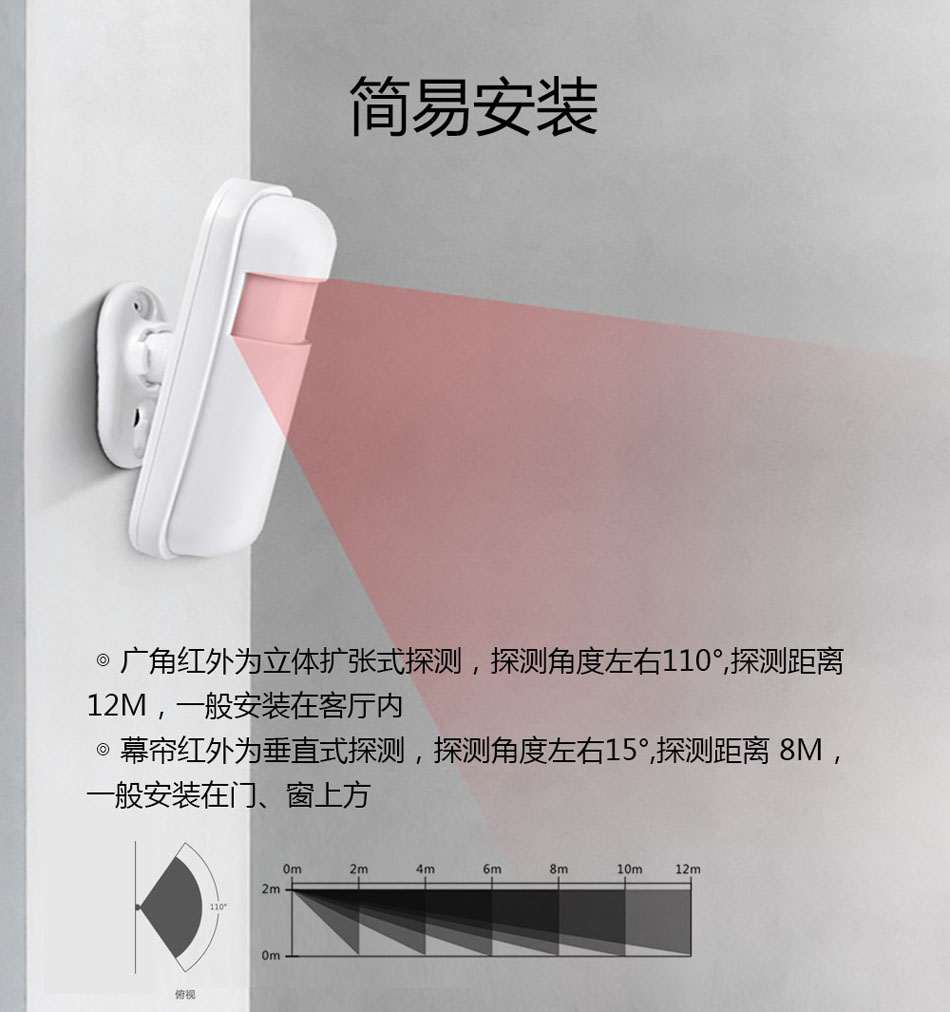

>探测角度:110°

>报警电流:≤ 25mA

>静态电流:≤ 30uA

>发射距离:≥ 80m( 空旷距离 )

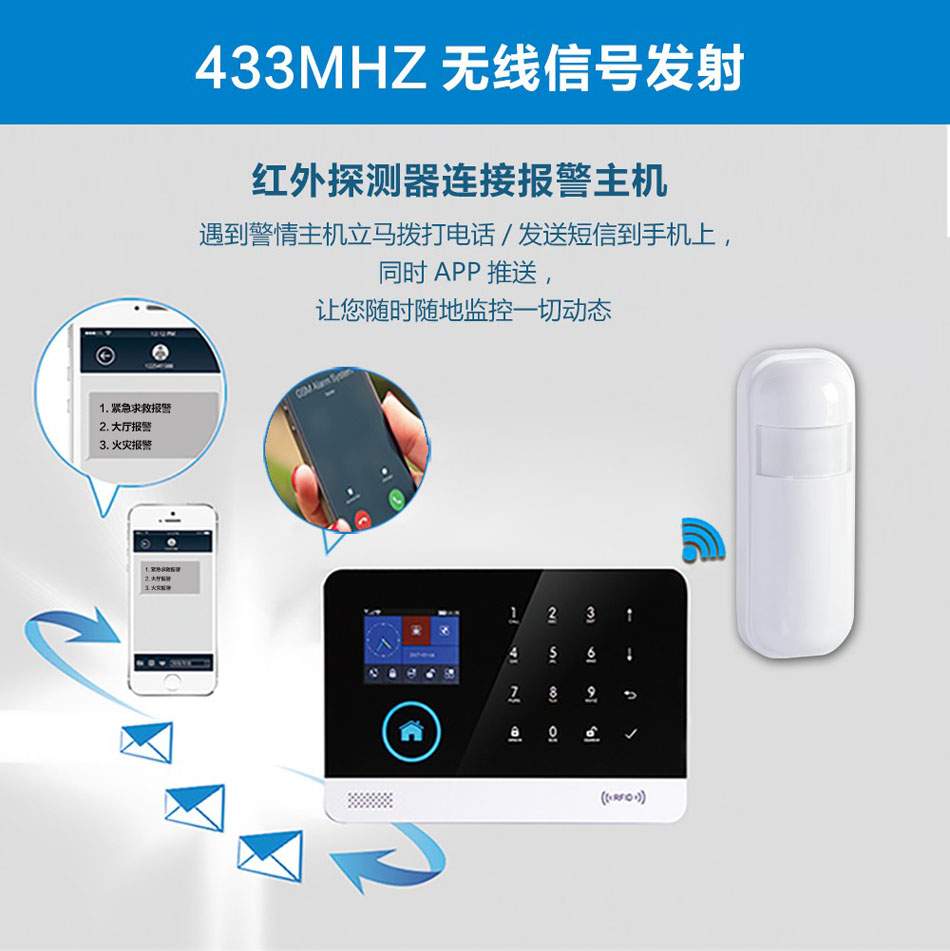

>发射频率:315MHz/433MHz (ASK) 868MHz (FSK) ( 可选 )

>产品尺寸:40x105x26(宽x高x厚)
