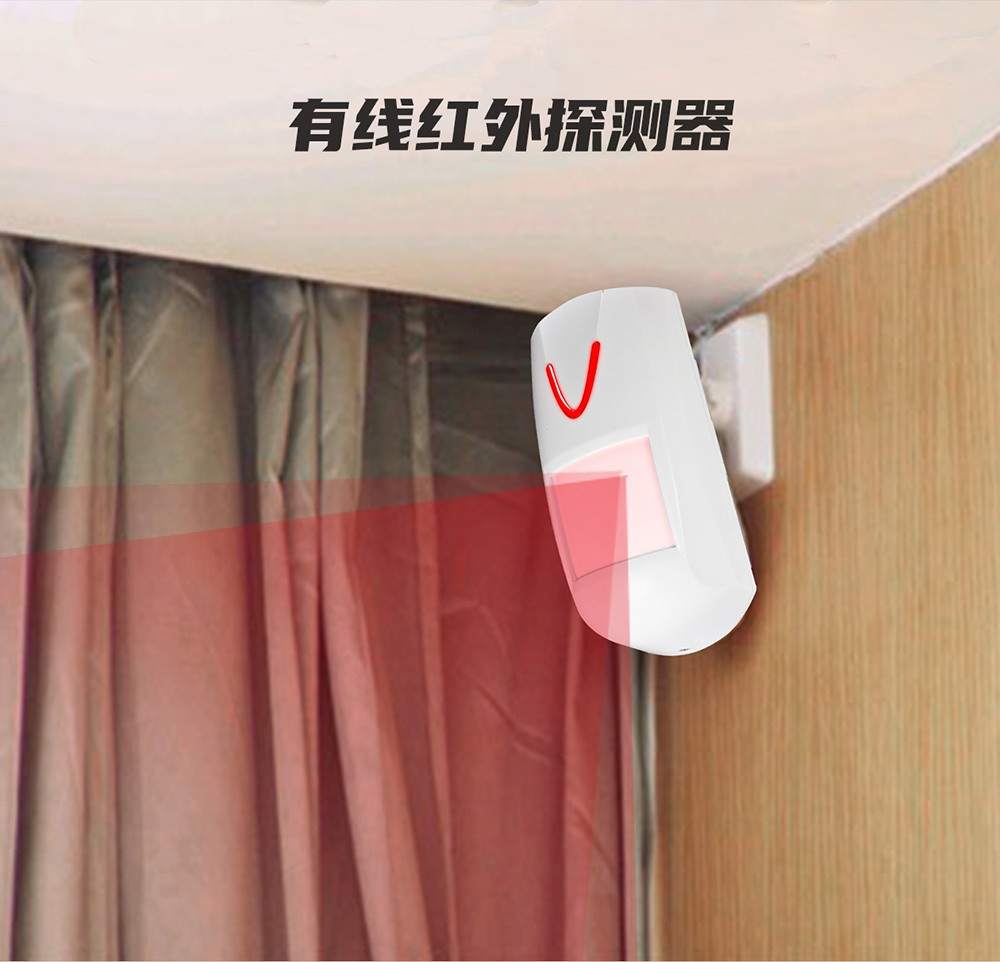

Wired Infrared Detection Alarm
有线红外探测报警器
Wired Infrared Detection Alarm
有线红外探测报警器
Wired Infrared Detection Alarm
Brand: Quan'an
Model: TD-H02
Features: Anti-white-light and anti-RF interference;
Automatic temperature compensation, adjustable pulse count;
Tamper alarm for enhanced anti-vandalism;
LED switch optional to enhance concealment;
Power interface polarity protection;
Alarm output NC/NO optional.
  • Photos & Details
  • Specifications

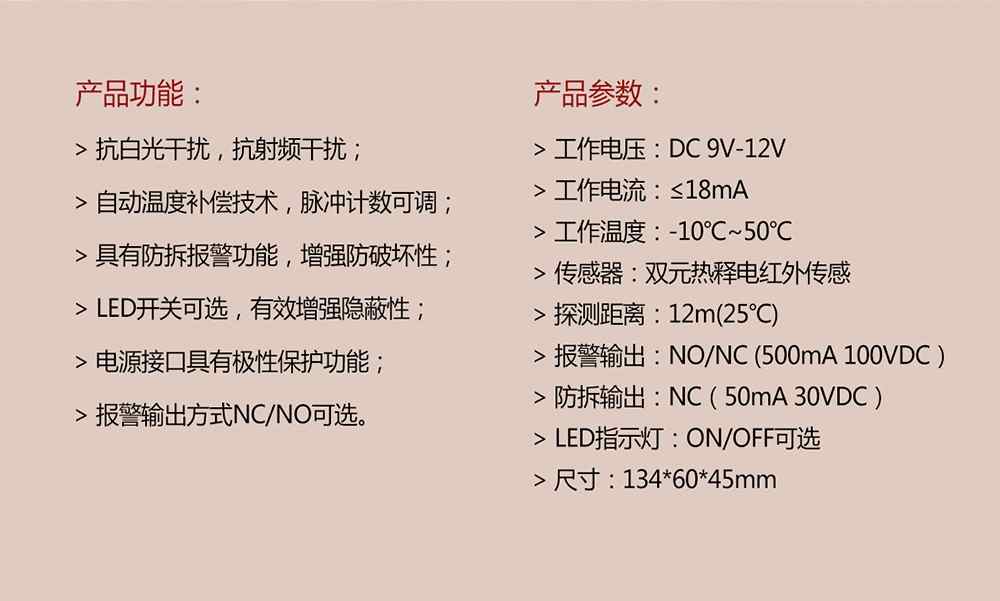

产品特点

抗白光干扰,抗射频干扰;

自动温度补偿技术,脉冲计数可调;

具有防拆报警功能,增强防破坏性;

LED开关可选,有效增强隐蔽性;

电源接口具有极性保护功能;

报警输出方式NC/NO可选。


产品参数:

>工作电压: DC 9V-12V

>工作电流:≤18mA

>工作温度: -10°C~50°C

>传感器:双元热释电红外传感

>探测距离: 12m(25°C)

>报警输出: NO/NC (500mA 100VDC )

>防拆输出:NC(50mA30VDC)

> LED指示灯: ON/OFF可选

>尺寸: 134*60*45mm
