Razor Fence Alarm System
Razor Fence Alarm System
Razor Fence Alarm System
Brand: Antongruida
Model: TDS-DPWL
Features: The alarm blade protection system perfectly combines traditional ordinary walls (wrought-iron fences) with an intelligent alarm system: an 80cm-high alarm blade protection mesh is added on top of the ordinary wall (or wrought-iron fence). On one hand, the sharp alarm blades themselves provide excellent blocking; on the other hand, if the alarm blade mesh is damaged, an alarm sounds immediately.
  • Photos & Details
  • Specifications

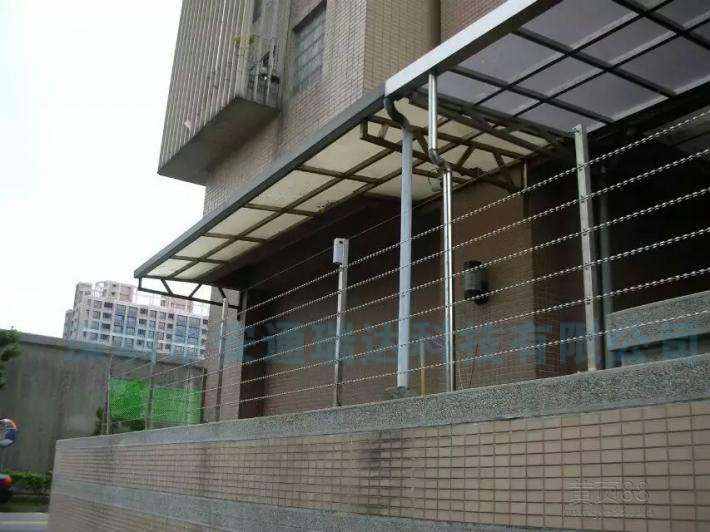

  The alarm razor fence protection system is a perfect combination of a conventional wall (or wrought-iron fence) and an intelligent alarm system. An 80 cm high alarm razor mesh is installed on the ordinary wall (or wrought-iron fence). On the one hand, the sharp razor blades themselves provide excellent physical blocking; on the other hand, if the alarm razor mesh is tampered with, an alarm sound is immediately triggered. The greatest advantage that distinguishes the alarm razor fence system from all other types of perimeter alarm systems is that the false alarm rate is zero, meaning the system never produces false alarms and works very stably. Therefore, the alarm razor fence protection system features a physical barrier, strong blocking, deterrence, intrusion alarm, zero false-alarm rate, high detection rate, and intrinsic safety as it carries no electricity (it cannot give anyone an electric shock).


  Applications: industrial and mining enterprises, warehouses, substations, private villas, national-defense concealed works, farms, airports, prisons, farms, military facilities, residential communities, villa compounds, national borders, military bases, etc.


The razor fence alarm system has the following features:

  Another major feature of the alarm razor fence protection system is that the alarm razor mesh can be installed inside dense trees (or green belts). Trees, vines, flowers, plants and wild animals have no impact on the normal operation of the system at all, whereas other perimeter alarm systems such as Infrared Beam Detectors, Pulse Electronic Fences, electrostatic sensing cables, microwave beam detectors and Tension Electronic Fences simply cannot be used in such occasions. Where high requirements are placed on the landscaping of the surroundings (i.e. the protection system must be installed covertly), where there are many trees on site whose branches are difficult to clear completely, and where concealment relying on the surrounding trees is required, installing the alarm razor fence protection system is highly suitable. When the alarm razor fence protection system is damaged, it immediately sends an alarm signal and can realize alarm linkage with the video surveillance system, access control system and lighting system, achieving seamless integration of multiple low-voltage systems.

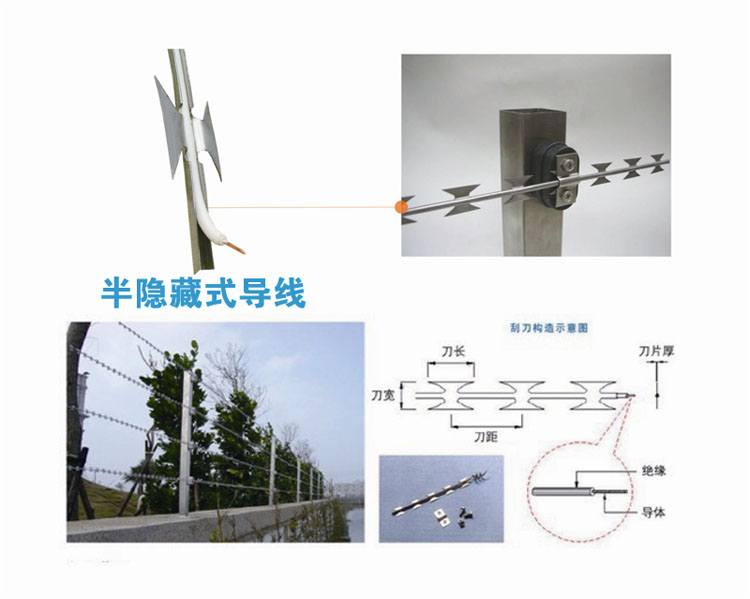

Technical specifications of the alarm razor fence:

◇ Material: 304 stainless steel or hot-dip galvanized steel

◇ Blade thickness: 0.4 mm

◇ Blade length: 18 mm

◇ Blade spacing: 36 mm

◇ Blade width: 14 mm

◇ Outer diameter of the embedded conductor: 2.5~3.0 mm; the conductor sheath is made of special material.

防区长度:最大防区长度200米

报警刀片防护系统线制:4/6/8/10/12线

报警刀片立柱的安装间距:<3米

报警刀片防护系统间距:10~20厘米

报警方式:每条报警刀片被剪断,都触发报警。

使用温度:-40℃~+70℃

智能刀片刺网包装规格:100米/卷

刀片刺网重量:10KG/100米

防旁路报警功能:报警刀片防护系统具有防旁路剪断报警功能,彻底解决了被旁路后,不报警的缺陷和漏洞。

安装方式:可明装,或隐蔽式安装。
