ASA-800: Paging master station features:

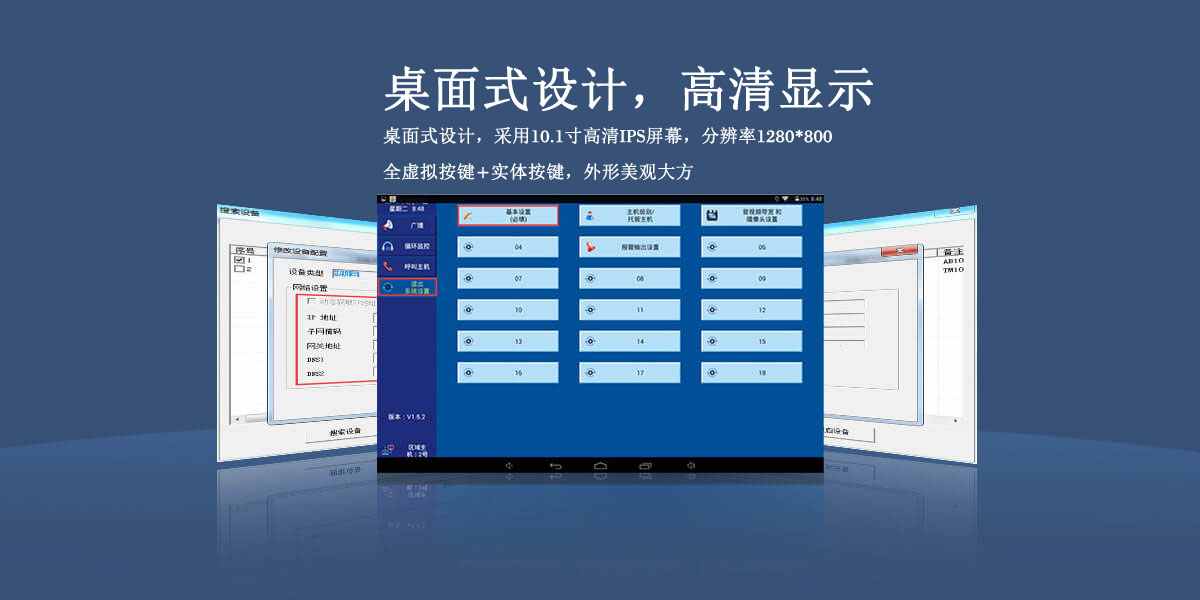

Professional paging master station with a desktop design, using a 10.1-inch high-definition screen with 1280*800 resolution and an attractive, generous appearance.
It uses an industrial-grade 4-core embedded CPU chip with 2G memory to ensure overall system stability.
It remotely manages all extension stations within its jurisdiction and can monitor their online, working and abnormal status.
It supports remote two-way video intercom, monitoring, surveillance, zone-wide and district-wide broadcasting, and scheduled background-music playback.
The master and extension stations use full-duplex one-way video intercom.
With a built-in SD card, it can use the SD card or on-demand MP3 files as an audio source to broadcast to other terminals.
The built-in megapixel camera delivers fine picture quality during calls.
The master station has two call functions: a flexible gooseneck microphone for hands-free calling and a handset for intercom.
You can directly click the extension icon on the screen for a quick call, or dial by the extension ID number.
Status indication: extension alarm and intercom states turn red with voice prompts, and each button shows the device ID and name.
Monitoring: it can monitor extensions; the monitoring function has single-unit monitoring and cyclic monitoring modes, and the cyclic monitoring interval is configurable.
Broadcasting: there are three broadcast modes: MP3 playback, voice paging and external audio source.
Record query: it can record and query call logs, answered calls, missed calls, alarm records, card-swipe records and unlock records.
The paging master station has 16G built-in memory, expandable up to 128G.
Remotely play back and download call recordings and videos of all intercom terminals.
Supports local recording and downloading/playback of call recordings and videos of all intercom terminals.
Supports noise/making-a-scene alarm (used together with intercom terminals).

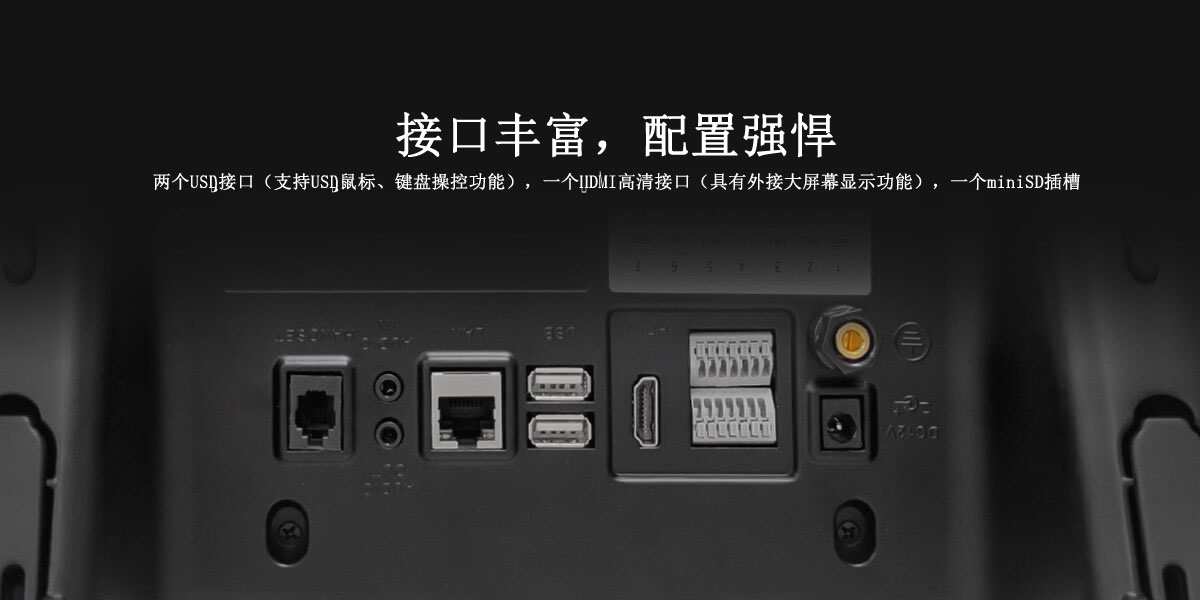

Supports two USB ports, one HDMI high-definition port and one miniSD slot.

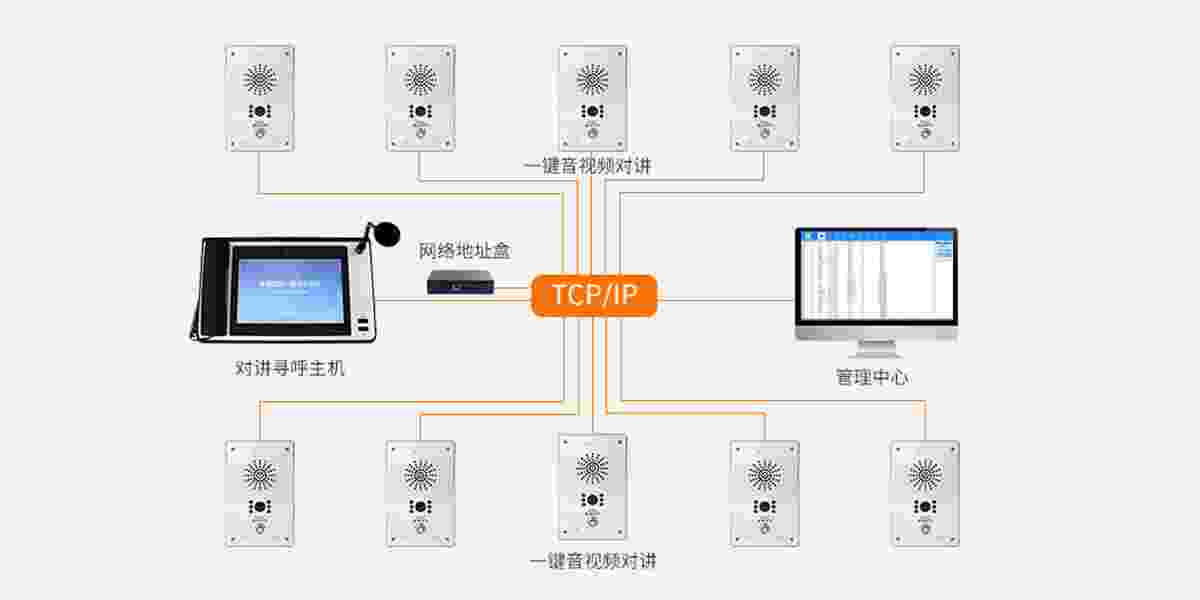

Supports TCP/IP communication, compatible with 10M/100M networks, supporting cross-segment and cross-router applications.
It supports an external large-screen display.
Supports USB mouse control.

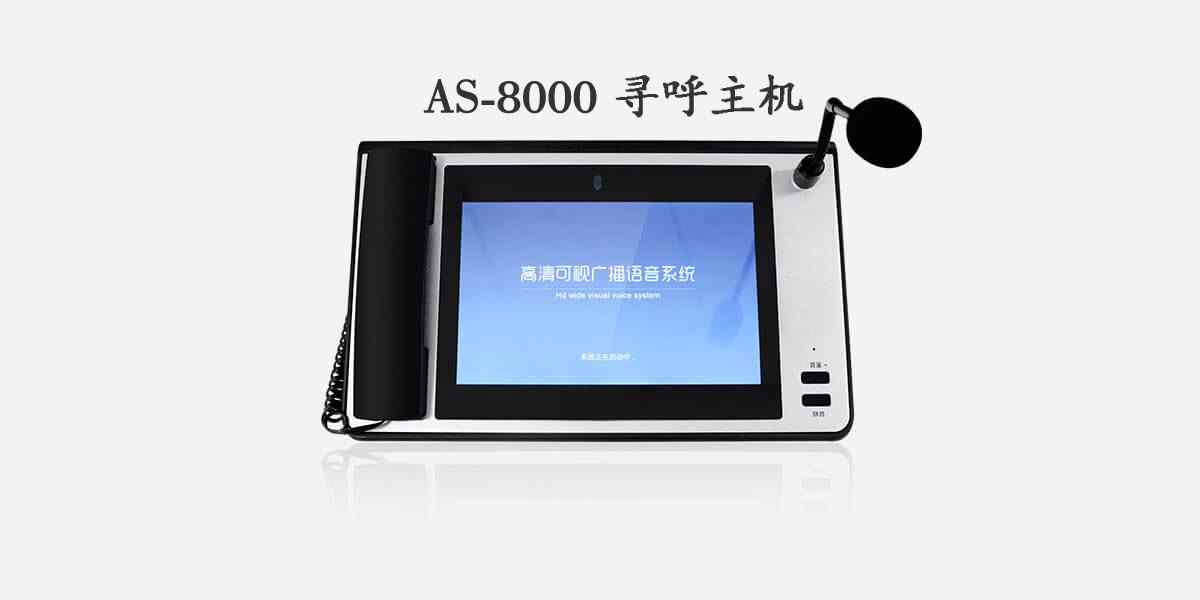

AS-8000:一键紧急报警寻呼主机
电气参数
电源输入:DC12V/2A
功耗大小:≤25W
音频位率:8Kbps~320Kbps
音频参数:MIC:10mV/600Ω、40Hz~20KHz
频率响应:100Hz~16KHz
音视频编码格式:H.264、G.711
视频格式:MP4、AVI
音频格式:MP3、WAV
视频码流:64Kbps~2Mbps
信噪比:≥70dB
环境温度:-25~55℃
工作湿度:10%∽90%(无冷凝)
产品尺寸:365×230×116mm
总重量:3KG
