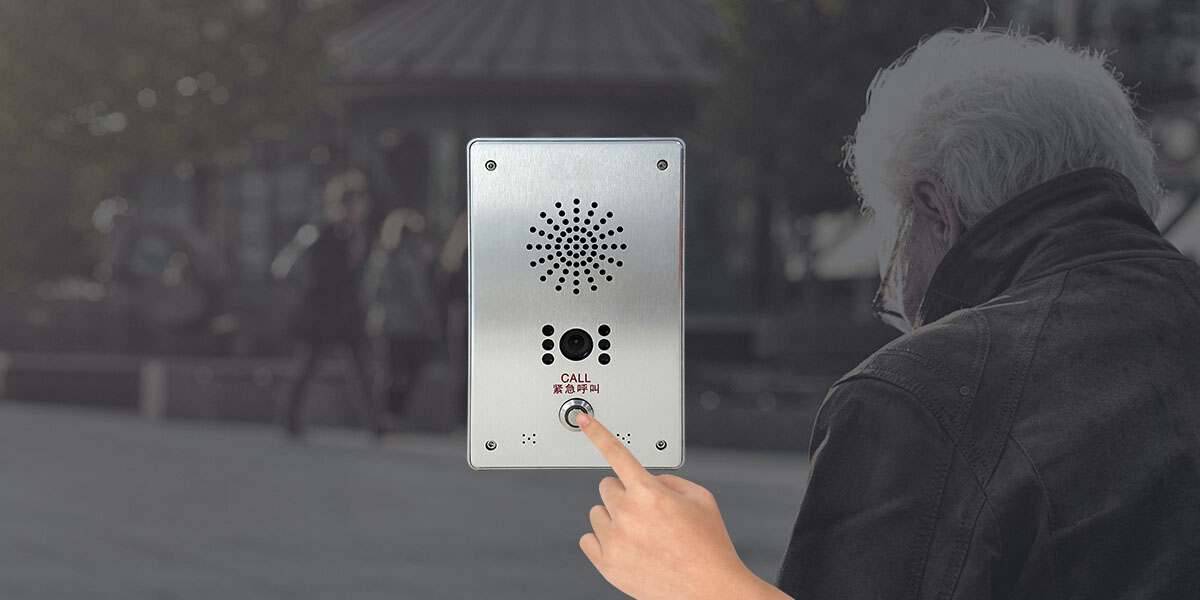

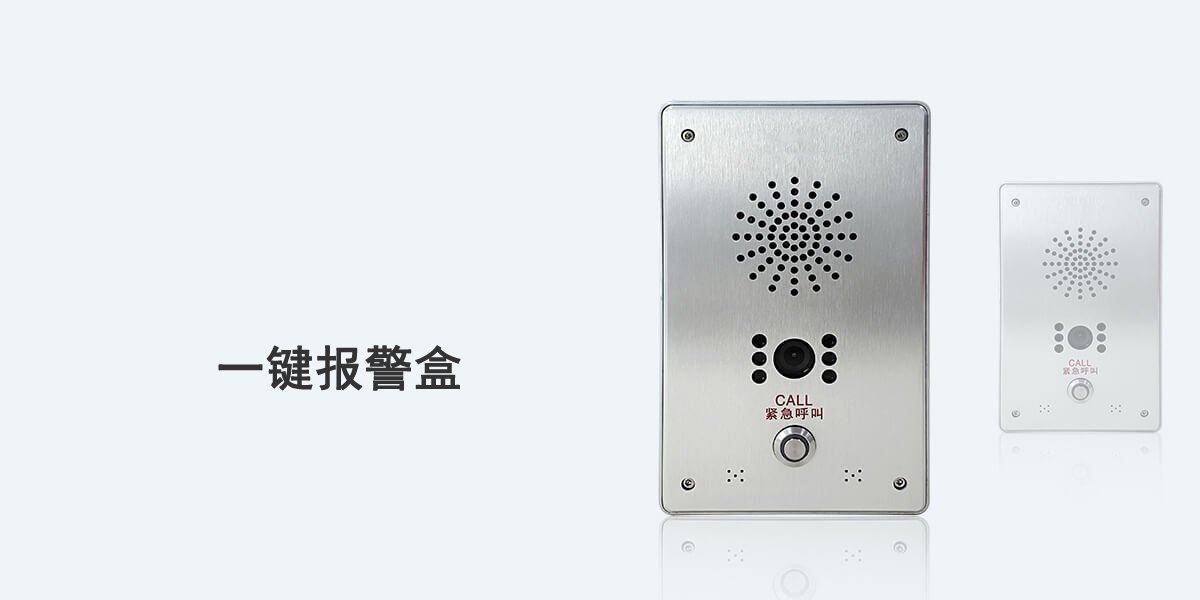

Emergency alarm: AS-530 one-button audio/video alarm unit
Features:
1. All-metal aluminum housing, sturdy and durable, easy to identify;
2. Front 1080P HD camera; the device can link with the customer's existing video (requires configuration software; the paging master station does not support this function);
2. Supports an external audible and visual warning light whose flashing can be controlled by the monitoring center;
3. Supports external DC12V power supply and POE network power supply; a POE switch can be used to supply power;
4. Transmission distance extends without limit; wherever there is a network, intercom can be achieved, building a wider communication system;
5. One-button call; the center can designate the call target to achieve two-way intercom, broadcast paging and monitoring;

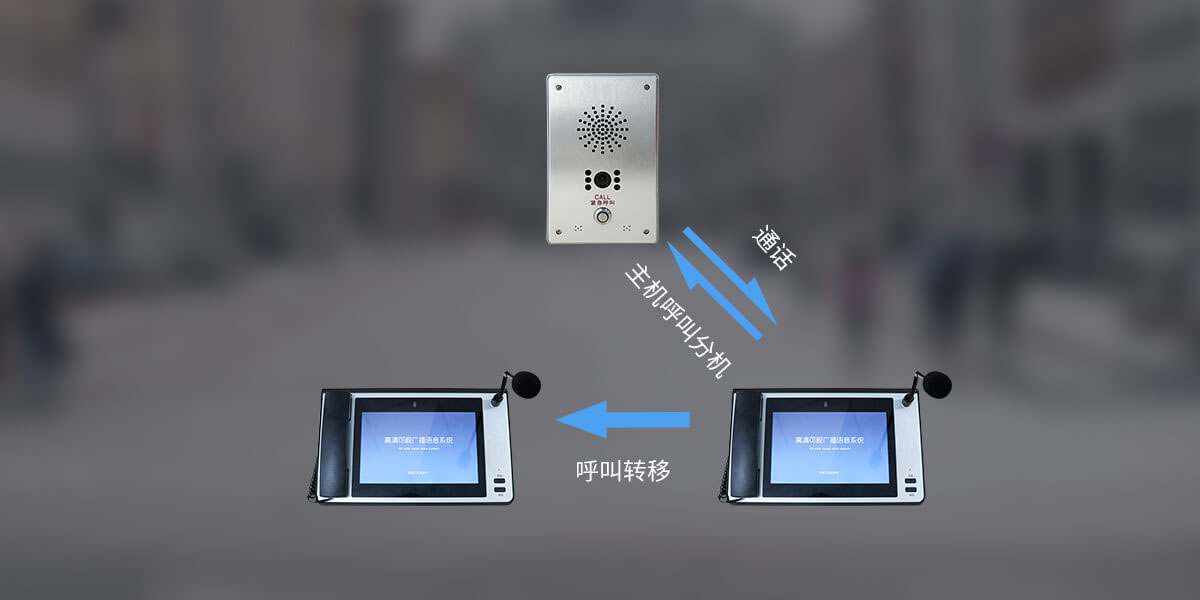

6. Call transfer: when the called regional master station is busy, the call can be transferred to its superior center, i.e. the management master station;
7. Built-in speaker and microphone capsule, with a pickup distance of up to 8 meters;
8. Built-in microphone and camera provide combined audio and video during intercom, and can be remotely monitored; 6 white lights beside the camera automatically turn on during calls to brighten the scene and improve video quality;
9. Digital recording function; audio and video recorded during intercom are saved to the local SD card, the paging master station or the management software;
10. Call data confidentiality: data in transmission is encrypted to prevent eavesdropping and misuse, making calls more secure;
11. Supports TCP/IP communication, compatible with 10M/100M networks, supporting cross-segment and cross-router applications and internet access;
12. Supports 2 independent Ethernet alarm-receiving centers;
13. Supports two switch outputs for on-site linkage and connecting other switching devices;

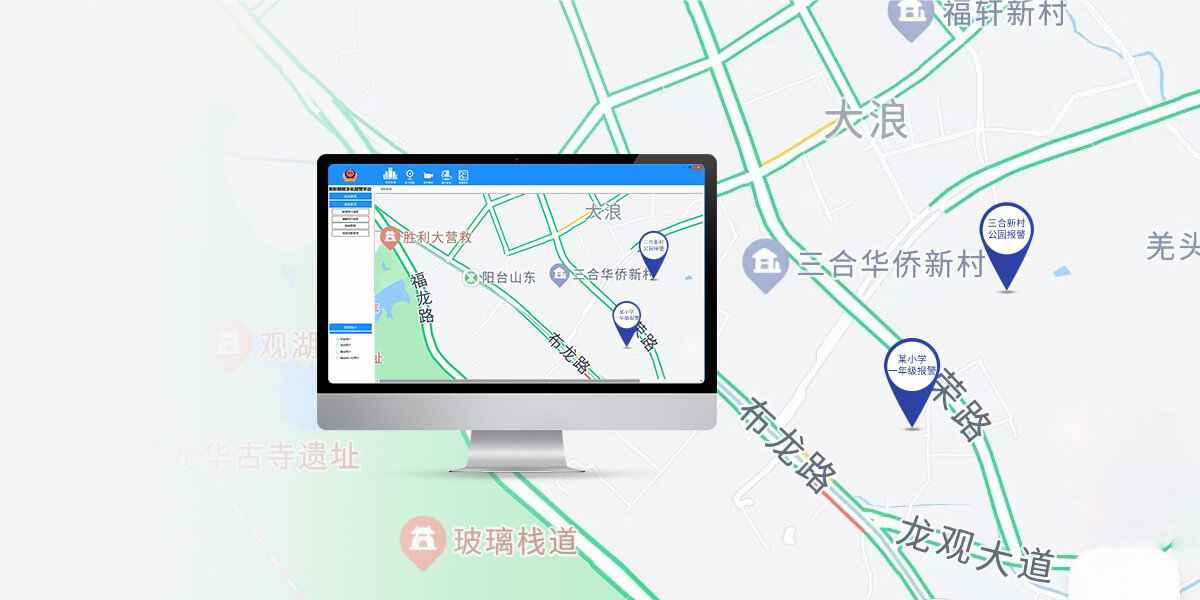

14. Real-time electronic map positioning: supports importing bitmap maps or engineering drawings, freely editing detailed device positions and name parameters; when an alarm occurs the map automatically positions to the corresponding location, with simple and convenient operation (requires configuration software).
电气参数：
供电方式：采用DC12V2A适配器、或者POE交换机供电
操作方式：按键
摄像头分辨率：1080P
网络接口：标准RJ45
通信方式：TCP
网络速率：10/100Mbps自适应
输出：2个报警输出接口，常闭常开可设置
工作温度：-4～113℉/-25～55℃
工作湿度：10～90%(无冷凝）
音频音频采样、位率：8kHz～44.1kHz,16位，8Kbps～320Kbps
音频参数MIC:10mV/1000Ω、40Hz～20KHz
安全性：全金属外壳
