High-Voltage Electric Fence Central Control Host
High-Voltage Electric Fence Central Control Host
High-Voltage Electric Fence Central Control Host
Brand: Antongruida
Model: TDG-ZKJ
Features: Touch screen operation, direct setting of all energizer parameters;
One-key alarm;
Quick operation keys for fast arming/disarming and alarm reset;
Settable as front-end controller or backend linkage controller modes;
Built-in network port, no external converter needed, direct LAN connection for network management;
One switch output and siren output interface;
External printer for printing alarm information;
Wireless remote control for one-key arming/disarming, alarm reset and more.
  • Photos & Details
  • Specifications

Overview: The high-voltage electric fence control cabinet adopts ARM architecture, a Cortex-M3 chip, runs the UC-OSII operating system and features dual-core processing. It is small in size, rich in function, stable in performance, simple in interface, and safe and convenient to use. The high-voltage electric fence control cabinet is also compatible with tension fences, pulse electronic fences, address modules (which can connect other alarm devices with switch outputs) and other perimeter anti-theft alarm equipment.

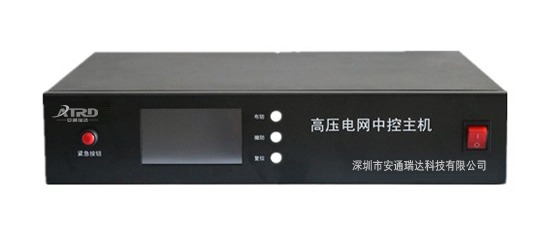

Central Control Host 2.jpg

● Touch-screen operation to directly set various host parameters;

● Equipped with a one-key alarm function;

● Quick operation buttons for fast arming/disarming and alarm reset;

● Can be set to two modes: front-end controller and back-end linkage controller;

● Built-in network port; no external converter needed, directly connecting to the LAN for online management;

● One switch output and siren output interface;

● External printer can be connected to print alarm information;

● Wireless remote control function for convenient one-key arming/disarming and alarm reset;

● Automatic scheduled arming/disarming function; the timing and zone status can be freely set, enabling intelligent automatic arming/disarming control of the zones;

● Mains power failure and recovery prompt function, timely reminding users of the power status of each host;

● Communication failure alarm function, timely alerting users to communication line faults between each host and the control room;

● Can comprehensively control up to 96 zones via the RS485 bus;

● Can close, arm or disarm all or part of the zones;

● Automatically records the latest 255 alarm messages; the alarm information is detailed and clear (including alarm zone number, category (short circuit, open circuit, tamper, fence contact, communication failure) and alarm time);

● When an alarm occurs, the alarming information is automatically highlighted;

● Short polling cycle, quickly reflecting zone status and alarm information;

● Can reset the alarm of the host in each zone;

● The host zone number can be set arbitrarily;

● The whole-system time can be set;

● Real-time display of the status information of enabled zones (including the actual output voltage of the zone or the alarm status of the zone);

● Universal switch alarm output function;

● Smart LCD backlight off for greater energy savings;

● Friendly interface and humanized operation;

● Password login function, safe and reliable, and the password can be changed;

● Permission management function; different users can be assigned different management permissions;


高压电网中控主机技术参数:

1.1工作电源:AC100~260V

1.2主板功耗: <10W

1.3使用环境温度:工业级(-20℃~65℃)

1.4通信接口:

(1)网口通信,10M/100M自适应;

(2)RS485通信接口;

(3)通用的开关量报警输出接口,12伏警号输出接口;

(4)打印机接口(将报警信息输出到打印机);

1.5.显示方式: 4.3寸真彩色LCD显示

1.6 人机交互:电阻屏输入,按键输入

1.7尺寸:440*280*90
