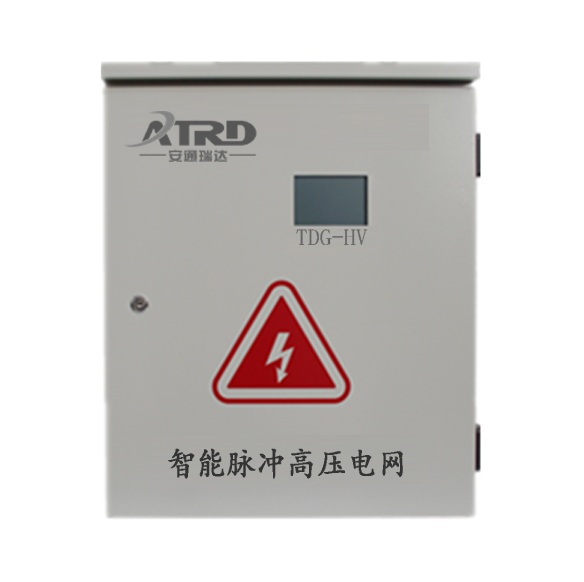

Overview: The HV Smart Pulse High-Voltage Electric Fence is an intelligent perimeter system composed of a pulse generator and a front-end fence. After evolution and improvement, modern public-safety electric fences have become a new type of perimeter alarm product. It replaces the traditional post-event-only alarm approach of earlier perimeter protection, emphasizing a new international perimeter-security concept that uses physical blocking (a tangible barrier creating an intrusion obstacle) as the primary measure, supplemented by alarm (audible and visual alarm that can be linked with other security systems) and deterrence (lowering the intent to commit crime). Meanwhile, the product overcomes the drawbacks of AC electric fences, which are lethal and unsightly. Compared with traditional infrared, microwave and electrostatic induction perimeter-security systems, it offers clear advantages such as a low false-alarm rate, freedom from terrain and environmental limitations, and high safety.It is mainly applied in prisons, detention houses and similar environments.
1. Wire-to-ground voltage AC 5000V, wire-to-wire voltage 10000V;
2. The system can generate alarms for fence contact, short circuit, broken wire, communication failure, abnormal voltage and other events;
3. It can alarm on wire-to-wire short circuit; for single-wire-to-ground short circuit, the fence ensures the output shock energy, and wire-to-wire short circuit also retains the shock capability.
4. The host is equipped with a 4.8-inch color display showing parameters such as host voltage, waveform, output current, shock energy and alarm type, giving users a clear view. The control panel buttons allow setting the host zone ID, reducing setup trouble.
5. It realizes indoor display of the fence high-voltage-to-ground voltage and current, shock energy, alarm category and alarm zone when the system alarms, as well as fence high-voltage-to-ground voltage and zone information in alarm status.
6. It realizes computer display of the fence high-voltage-to-ground voltage and current, alarm category and alarm zone when the system alarms, as well as fence high-voltage-to-ground voltage and current in alarm status.
7. The computer realizes electronic map display of the fence and alarm indication functions.
8. The computer realizes arming/disarming of a single zone, fence control and reset functions.
9. The computer realizes real-time printing of fence operation information, as well as recording, query and printing of alarm information.
10. It realizes hardware and software linkage of the fence.
输入电压：180～240V（50HZ）
额定输出：输出两路5000V高压脉冲。
触网打击电量：40mc
信号灯输出：AC220V≤10A
系统自动恢复时间＜20S
消耗功率：＜50W
报警输出：DC12V、常开/常闭、RS485信号
远程控制端：网络管理、打印机接口
