2J Ranch Energy Controller (LCD Model)

Dimensions: 180*140*54 mm,

Electrical Parameters

Output energy: up to 2.3 J.

Output amplitude: up to 10 kV.

Stored energy: 3.2 J

Power supply: adapter (input voltage range 110VAC-240VAC, DC 12V2A); DC 12V battery; or solar panel.

Panel power consumption: up to 4.3 W

Functions:

The green LED is the power indicator.

The LED (H/L) indicator shows the output amplitude level.

4 red LEDs are pulse output intensity indicators; the more LEDs lit, the stronger the output.

The controller has a built-in output intensity detector that monitors changes in output energy in real time.

Button operation: 1 sets the pulse output amplitude; 2 sets the pulse output period.

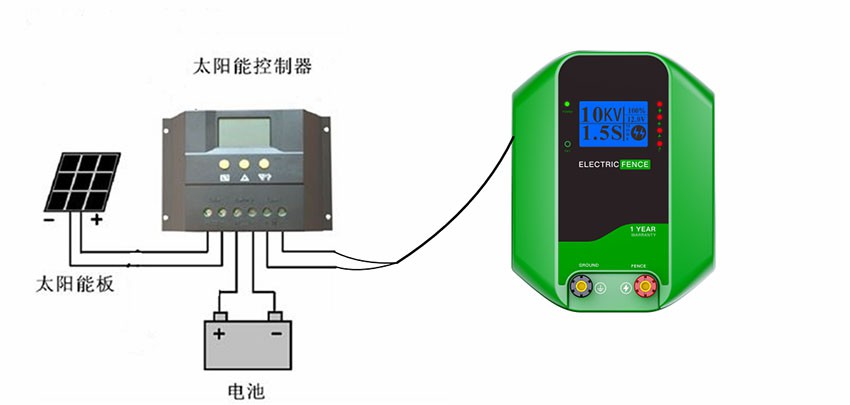

Ranch Solar 1.jpg

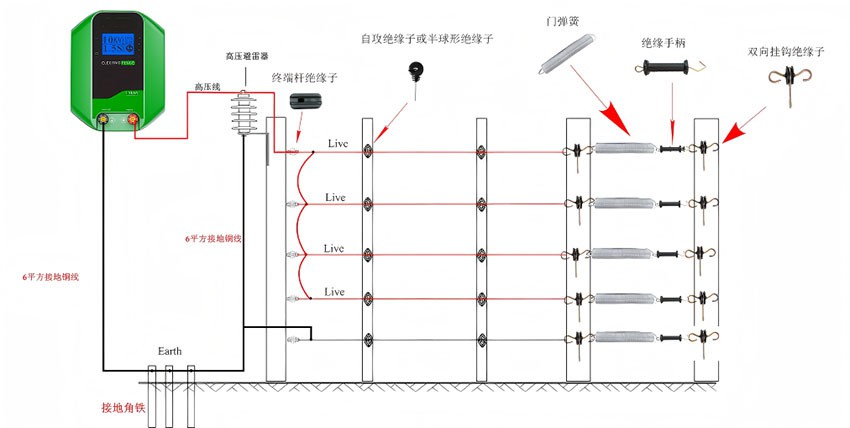

Ranch Solar 2.jpg
