Third-Generation Laser Intrusion Detector
Product Height:
Single beam 25 cm, two beams 40 cm, three beams 55 cm
Four beams 70 cm, six beams 100 cm, eight beams 130 cm
Detection Range:
100 m, 200 m, 300 m, 500 m
Features:
1. Adopts a four-digit digital display that shows the minute changes of each beam signal in real time, for simple and convenient commissioning.
2. Supports intelligent frequency conversion technology; each beam has a unique transmit and receive frequency, effectively solving beam crosstalk interference.
3. Supports alarm mode settings; alarms can be set for blocking any beam, two adjacent beams, or multiple adjacent beams, suiting various environments.
4. Supports beam enable/disable; each beam can be turned on or off individually.
5. Supports switching between working mode and alignment mode, simplifying complex alignment operations.
6. Adopts a visible laser design for easier alignment (visible-light version).
7. Uses carefully selected original imported laser diodes with a service life of >150,000 hours.
8. The laser source rating is Class I; under normal conditions it will not cause harmful optical radiation to the eyes.
9. Stronger laser penetration effectively suppresses interference from harsh natural conditions such as wind, frost, rain, snow and fog, for better stability.
10. Each beam supports vertical and horizontal angle adjustment; optical axis adjustment: horizontal ±15°, vertical ±15°.
11. Beam spacing of 15 cm effectively reduces false alarms and missed alarms (custom beam spacing available on request).
12. Alarm response time adjustable: 50 ms/100 ms/300 ms/700 ms (custom alarm response time available on request).
Second-Generation Laser Intrusion Detector
Electrical Parameters:
Power supply voltage: DC 9～30 V / AC 9～20 V
Operating current: 90～300 mA
Operating temperature: －25℃～70℃
Operating humidity: ≤95% RH
Outdoor detection range: 0～200 m
Alarm mode: adjustable blocking mode for adjacent 1/2/3/4 beams
Alarm output: NC/NO optional; contact rating AC 125V/0.5A, DC 24V/1A max
Laser wavelength: 660 nm (visible), 980 nm (invisible)
Laser source rating: Class I
MTBF: >150,000 hours
Distance between two beams: 15 cm
Transmitter divergence angle: <8′
Receiver acceptance angle: >10°
Optical axis adjustment angle: horizontal ±15°; vertical ±15°
Response time: adjustable 50 ms/100 ms/300 ms/700 ms
Alarm duration: 1.5 s
Beam frequency: each beam has a unique frequency
Material: housing: aluminum alloy (70*65 mm); base: die-cast aluminum (110*105 mm); hood: die-cast aluminum

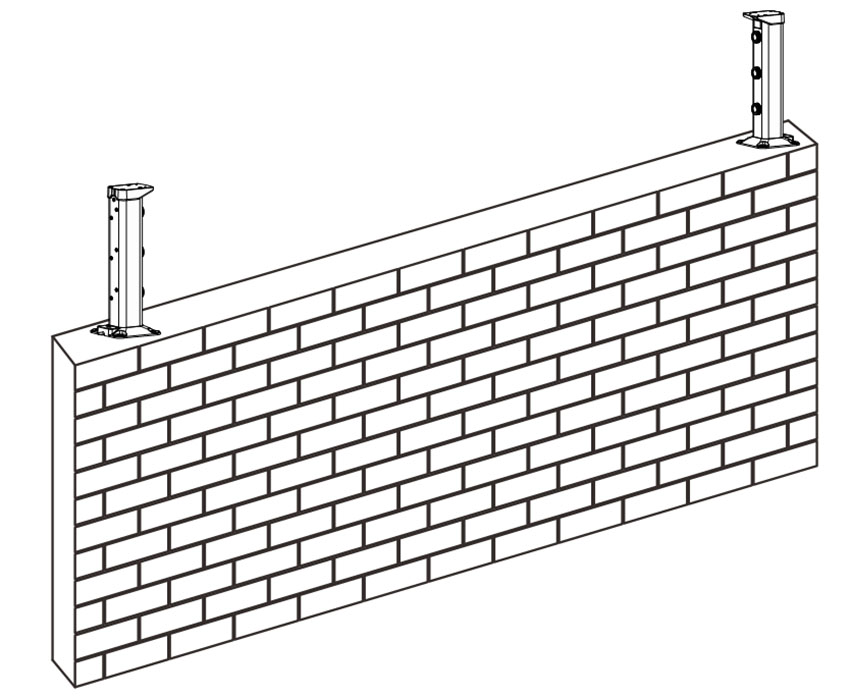

Installation location: indoor / outdoor
