● Digital frequency conversion function, adopting industry-leading 4-stage frequency conversion technology, suitable for long-distance and stacked installation environments, completely solving the industry problem of mutual interference when Infrared
Beam Detectors are installed under complex conditions; our company uses digital photoelectric technology.

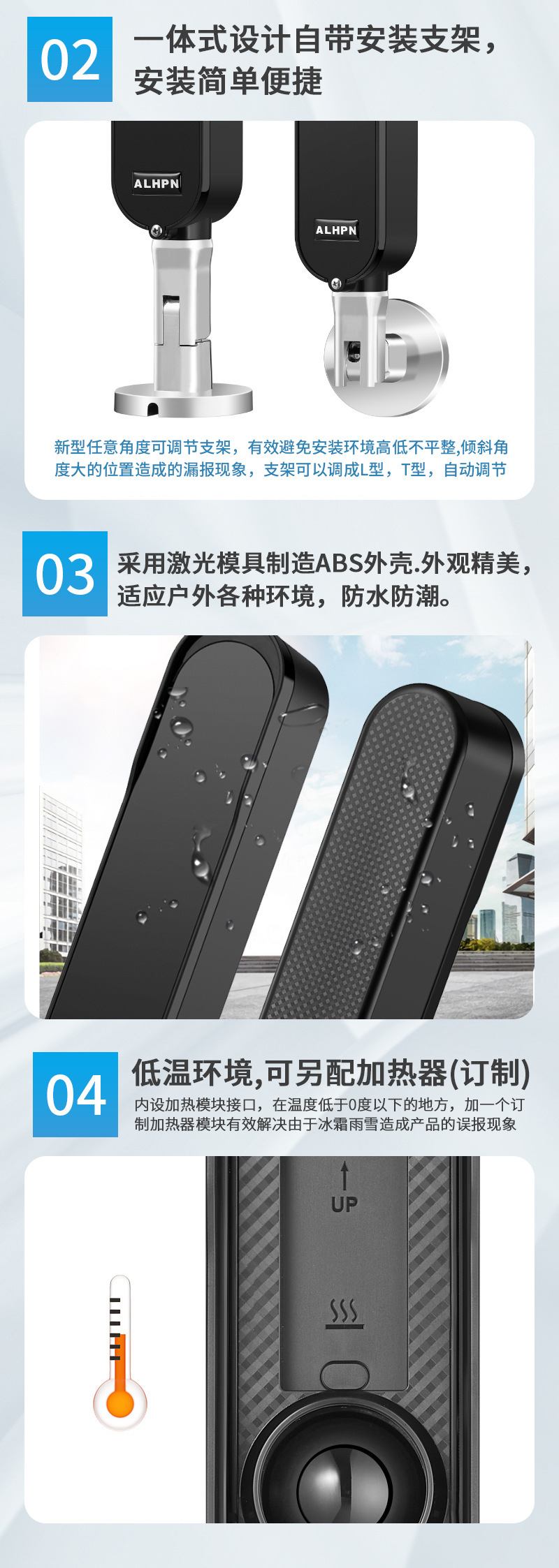

● Simple design with built-in mounting bracket, quick and easy installation;
● Specific mode indicator, providing a simple and precise optical alignment method;
● Three-time infrared signal processing (comparable to AGC function), ensuring power margin of over 90%, better coping with wind, rain, frost, snow,
fog, humidity, direct sunlight, and other severe weather;
● Pure digital CPU control circuit controls transmission and reception via CPU, high-power photoelectric transmitting and receiving tubes, low-power digital variable-frequency
processing technology, reducing false alarms and eliminating missed alarms;
● Wide voltage design, truly solving line voltage drop; supply voltage between DC12-24V/AC9-16V, convenient for centralized power supply;
● Multi-applicable C-type relay output;
● Tamper switch, opens when the housing is removed;
● Highly sealed waterproof: IP65
● Wide-angle optical alignment range: horizontal 360deg (+/-180deg), vertical 90deg;

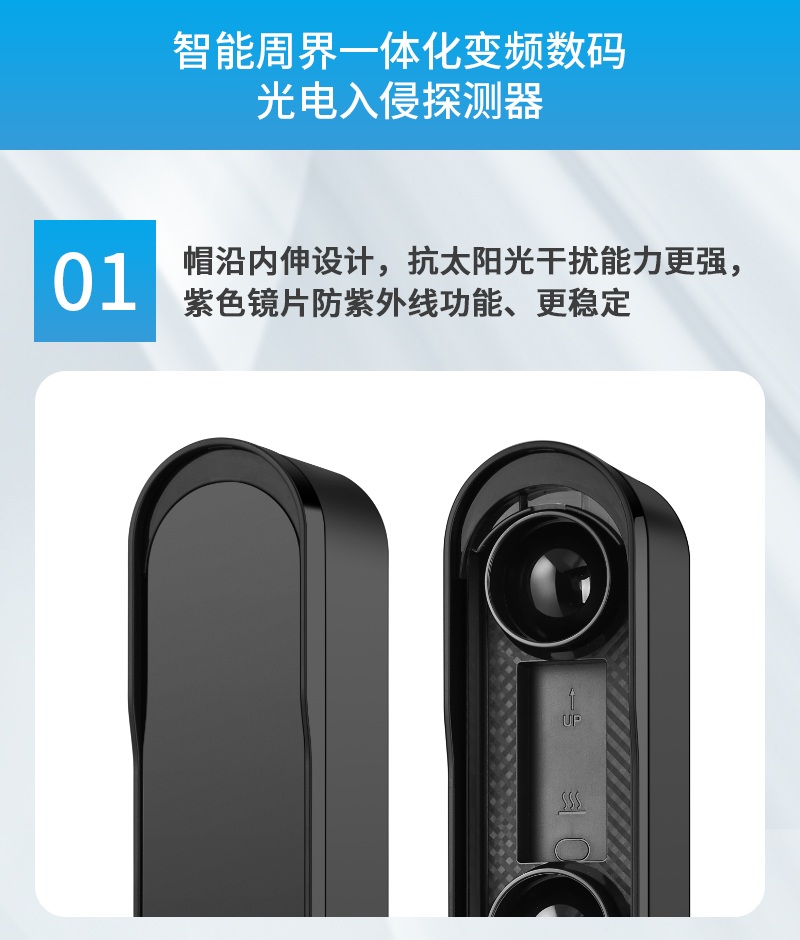

● Brand-new structural design, stronger resistance to sunlight interference;
