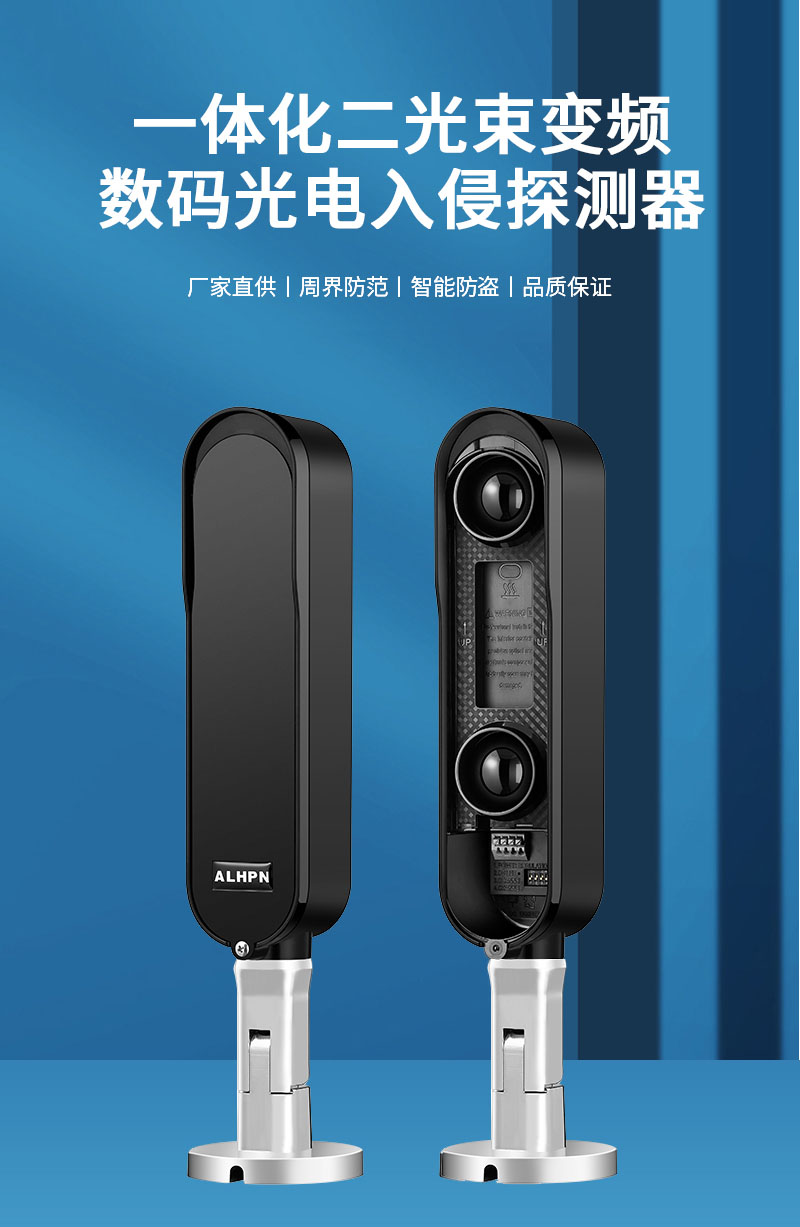

Two-Beam Integrated Digital Photoelectric Variable-Frequency Beam Detector
Two-Beam Integrated Digital Photoelectric Variable-Frequency Beam Detector
Two-Beam Integrated Digital Photoelectric Variable-Frequency Beam Detector
Brand: Quan'an
Model: QN-804G4
Features: No LCD display
Card and platform fee included, WeChat push included
  • Photos & Details
  • Specifications






● Digital frequency conversion function, adopting industry-leading 4-stage frequency conversion technology, suitable for long-distance and stacked installation environments, completely solving the industry problem of mutual interference when Infrared

Beam Detectors are installed under complex conditions; our company uses digital photoelectric technology.

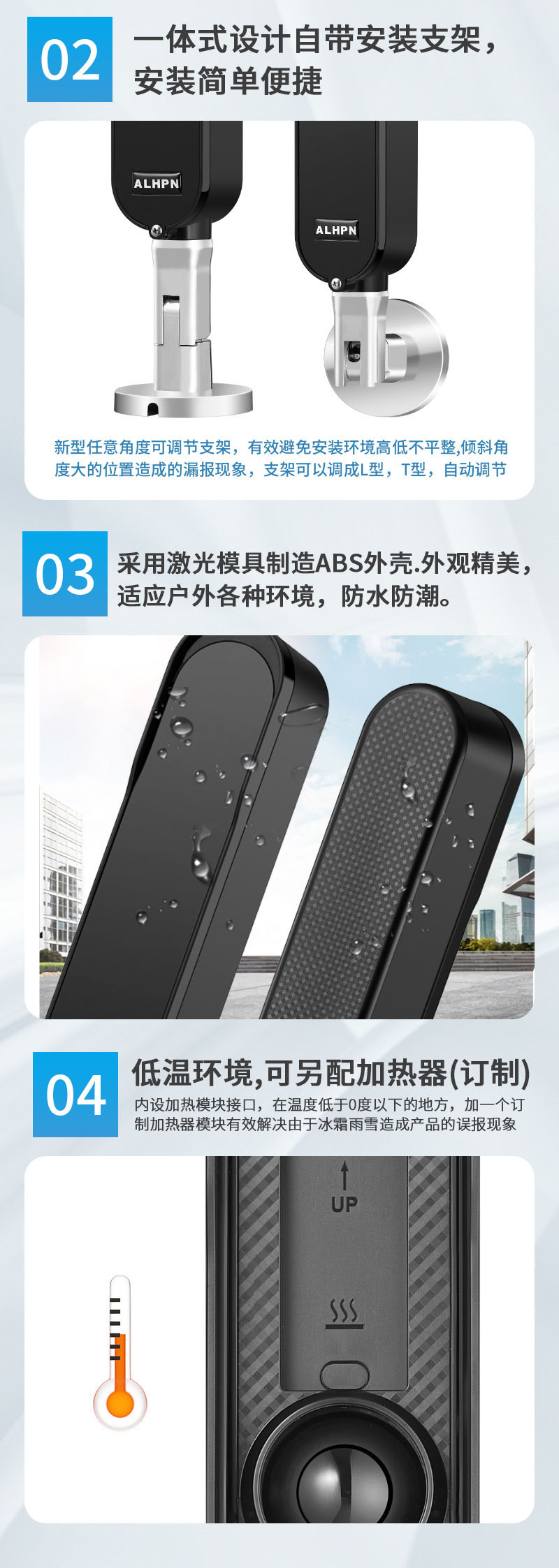

● Simple design with built-in mounting bracket, quick and easy installation;

● Specific mode indicator, providing a simple and precise optical alignment method;

● Three-time infrared signal processing (comparable to AGC function), ensuring power margin of over 90%, better coping with wind, rain, frost, snow,

  fog, humidity, direct sunlight, and other severe weather;

● Pure digital CPU control circuit controls transmission and reception via CPU, high-power photoelectric transmitting and receiving tubes, low-power digital variable-frequency

  processing technology, reducing false alarms and eliminating missed alarms;

● Wide voltage design, truly solving line voltage drop; supply voltage between DC12-24V/AC9-16V, convenient for centralized power supply;

● Multi-applicable C-type relay output;

● Tamper switch, opens when the housing is removed;

● Highly sealed waterproof: IP65

● Wide-angle optical alignment range: horizontal 360deg (+/-180deg), vertical 90deg;

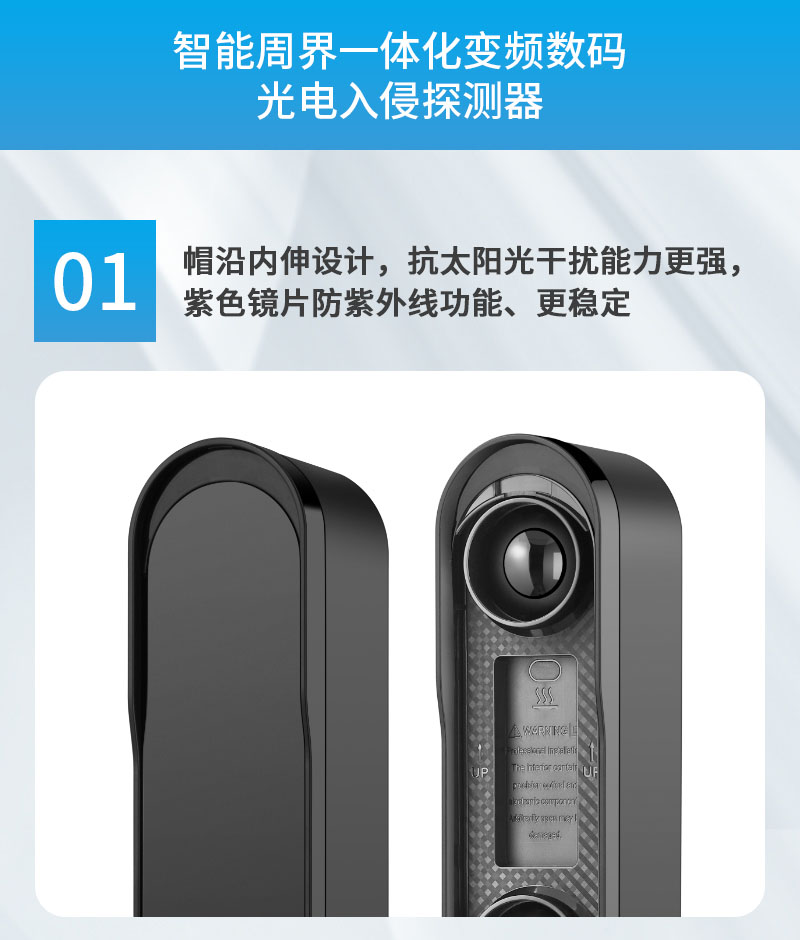

● Brand-new structural design, stronger resistance to sunlight interference;
