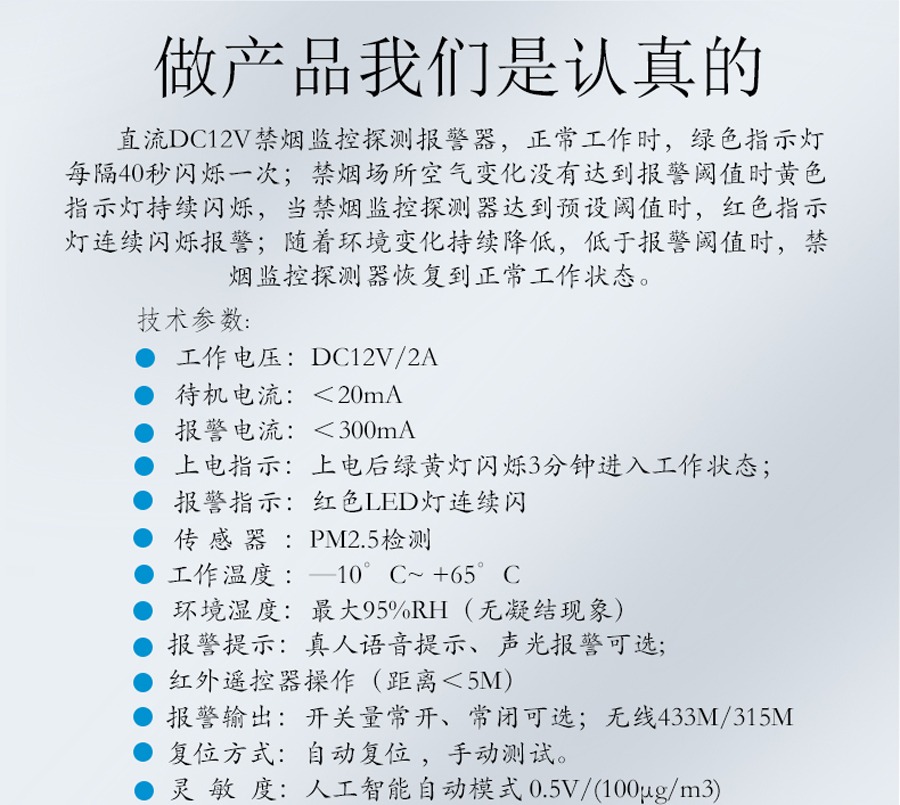

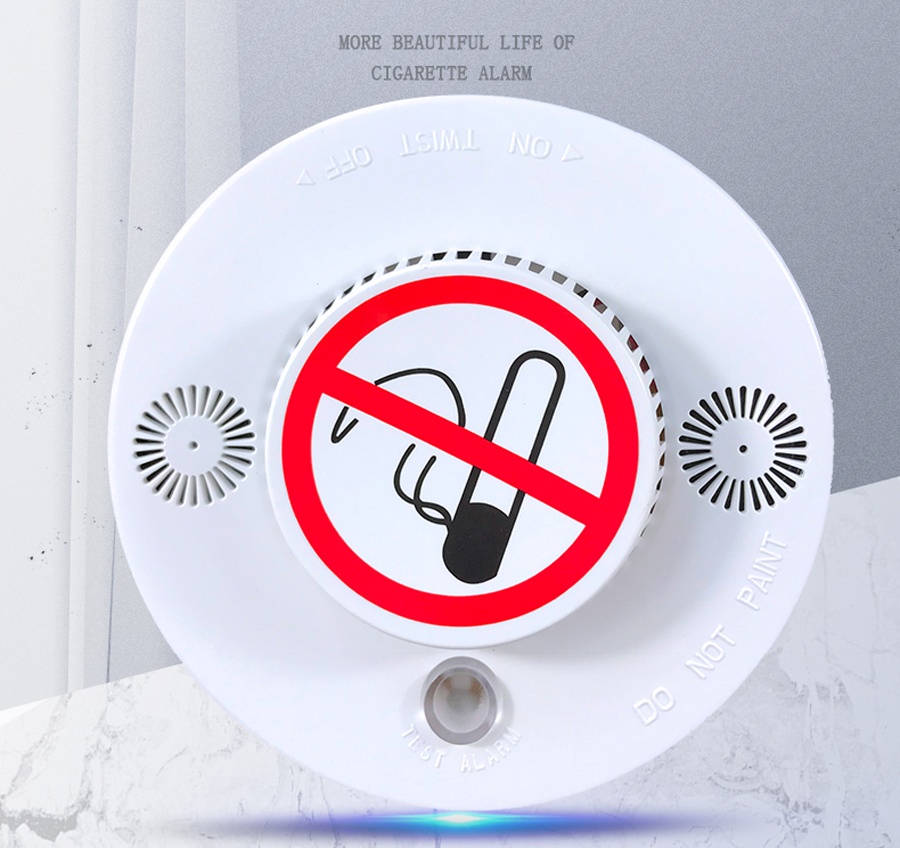

DC12V no-smoking monitoring detection alarm. During normal operation, the green indicator flashes once every 40 seconds. When the air change in a no-smoking area has not reached the alarm threshold, the yellow indicator flashes continuously; when the no-smoking monitor reaches the preset threshold, the red indicator flashes continuously to alarm. As the environment gradually returns to normal and falls below the alarm threshold, the no-smoking detector resumes normal operation.







技术参数:
工作电压:DC12V/2A
产品型号:JY100QN
待机电流:<20mA
报警电流:<300mA
上电指示:上电后绿黄灯闪烁3分钟进入工作状态
报警指示:红色LED灯连续闪
传感器:PM2.5检测
工作温度:-10°C~+65°C
环境湿度:最大95%RH (无凝结现象)
报警提示:真人语音提示、声光报警可选,

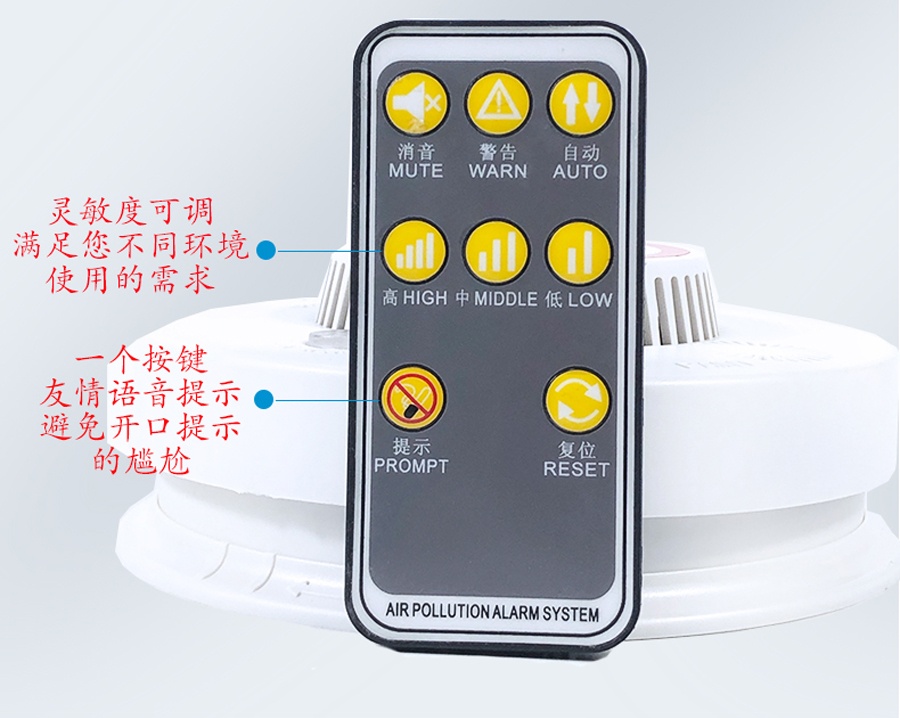

红外遥控器操作: (距离<5M)

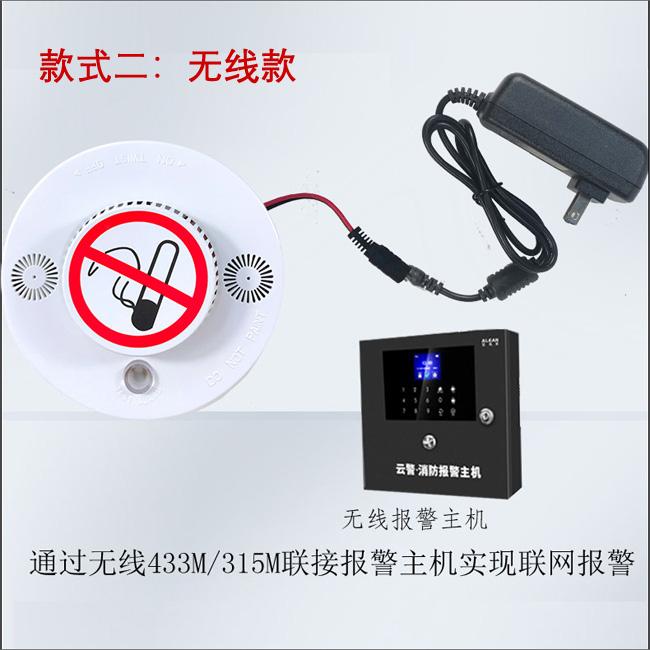

报警输出:开关量常开、常闭可选;无线433M/315M
复位方式:自动复位 ,手动测试
灵敏 度:人工智能自动模式0.5V/(100ug/m3)
外形尺寸:125mm (直径) *50mm (厚度)
