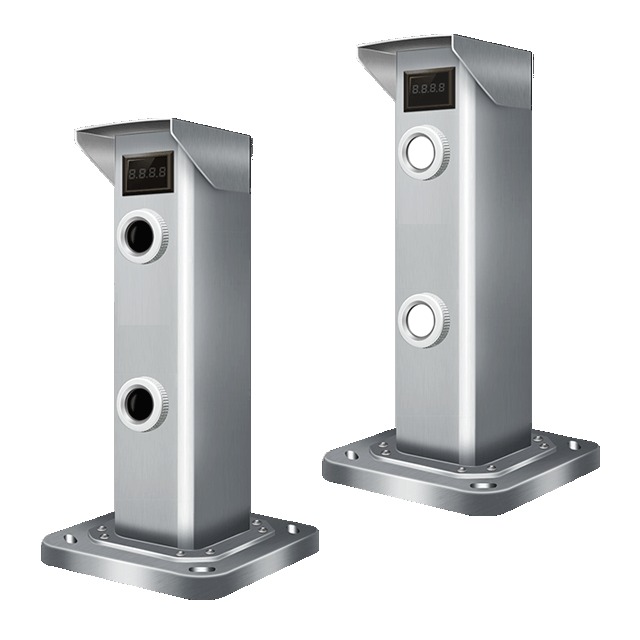

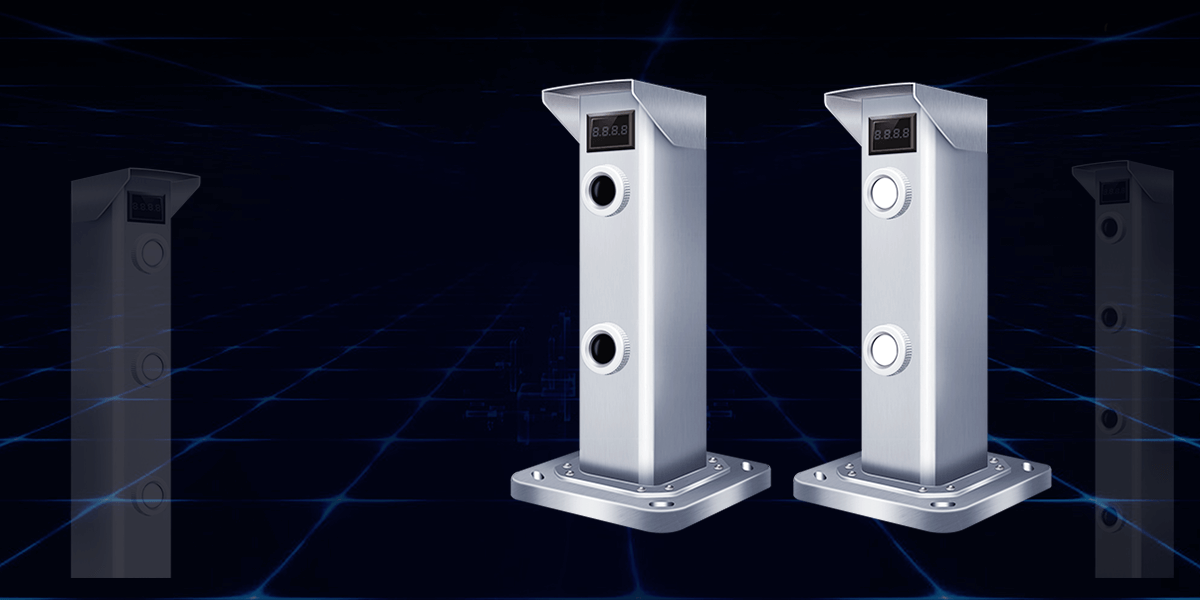

2-beam Laser Intrusion Detector
Craftsmanship quality, opening a new era of laser beam detection
Smart frequency conversion + secondary signal processing
Lower false alarm rate
Smart frequency conversion technology assigns a unique transmitting and receiving frequency to each beam, reducing crosstalk interference between beams

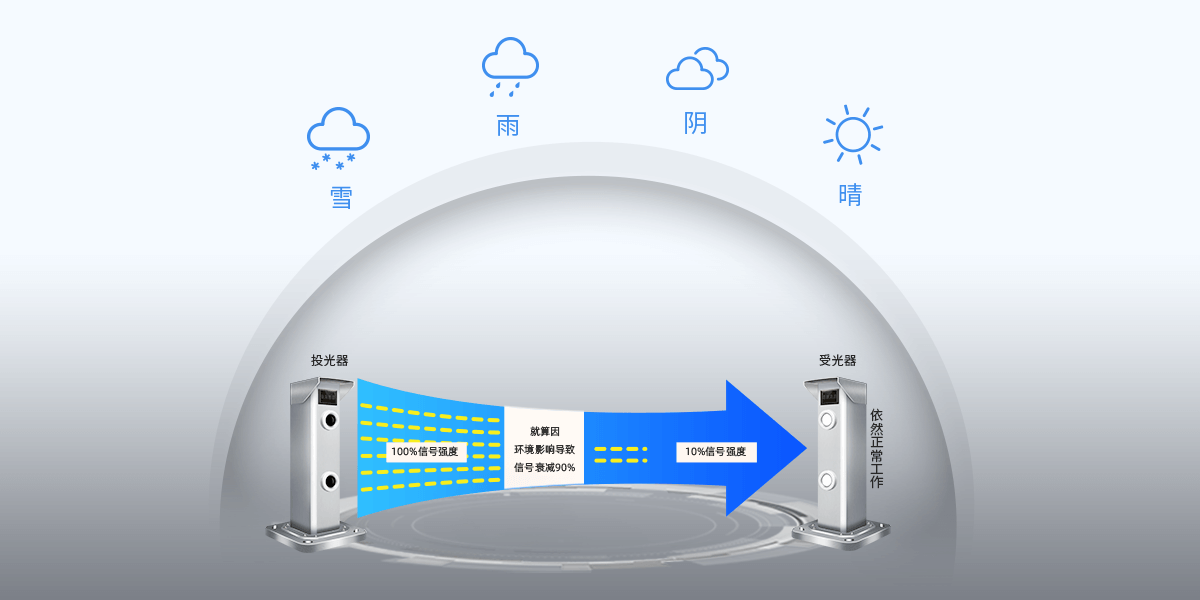

Adopts secondary signal processing technology, which can effectively suppress interference from harsh environments such as wind, frost, rain, snow and fog, for better stability
All-metal body
Forged with rock-solid quality

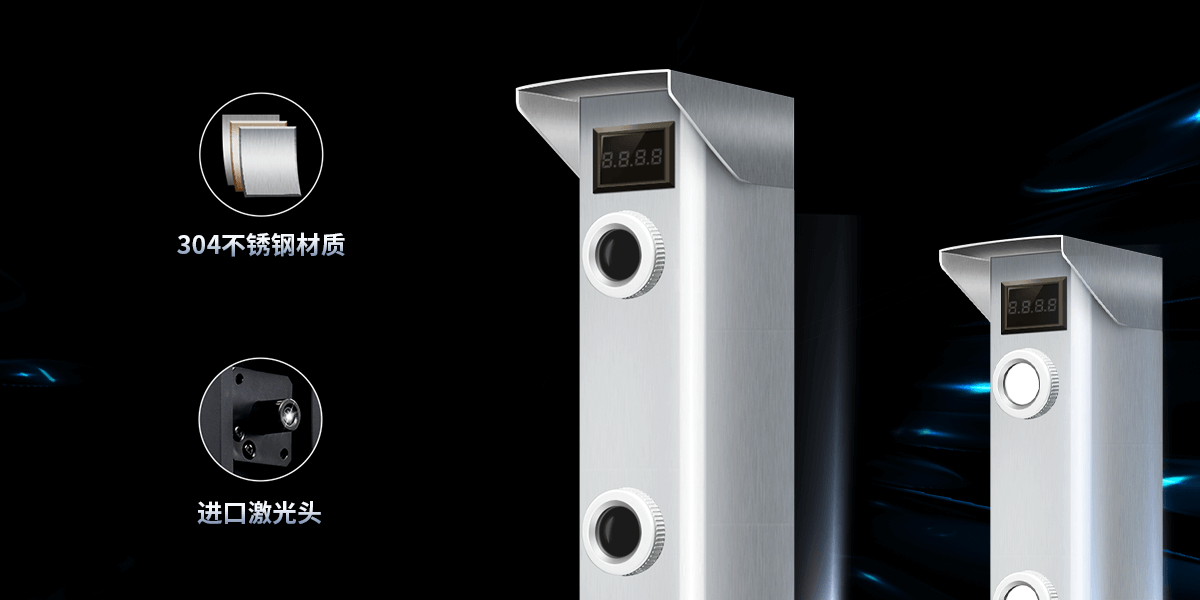

304 stainless steel housing, aluminum alloy central support column and integrally die-cast aluminum base plate. The rational use of metal provides sufficient strength and corrosion resistance for laser alignment, forging its rock-solid quality.

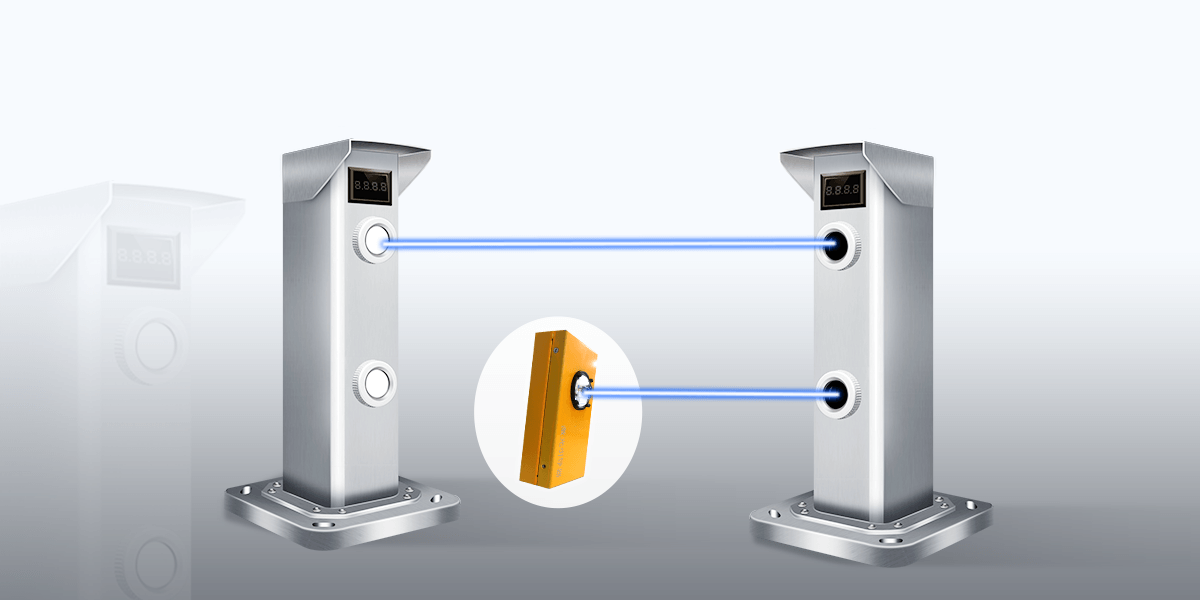

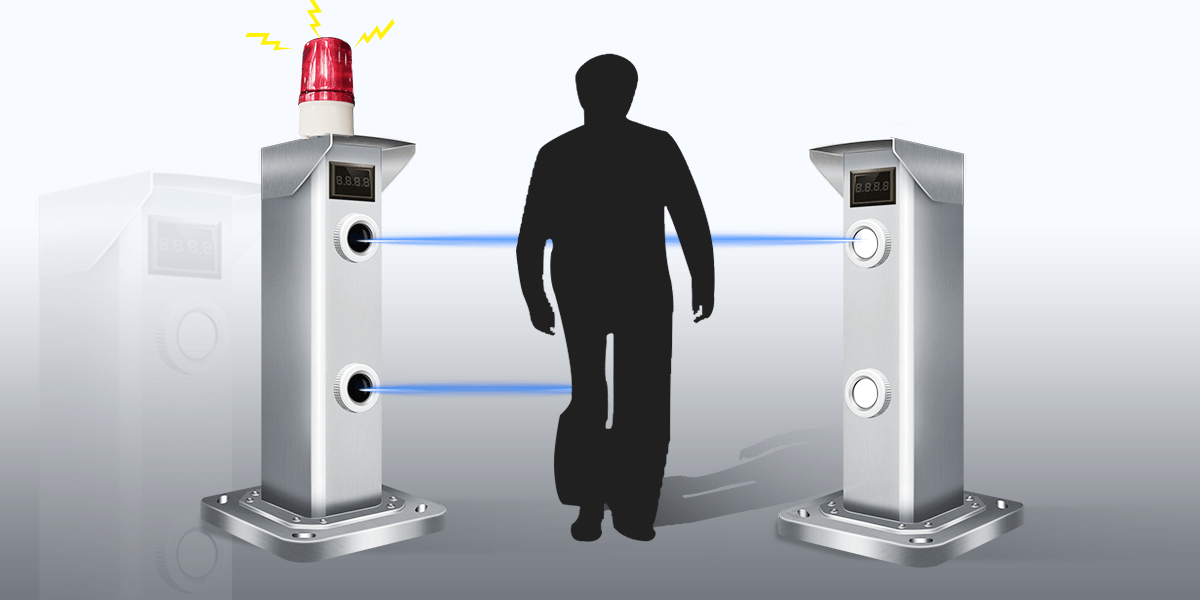

Adjustable beam interruption alarm
Can be set to alarm when any one beam, two beams or multiple beams are blocked, meeting more applications. Free switching between alignment mode and working mode makes alignment simpler and more efficient
High-precision optical filter
Eliminates light interference
Adopts a high-precision optical filter made of more than 40 layers by chemical deposition, eliminating interference from sunlight or other stray light
Adjustable beam alarm time
Supports customizable alarm trigger response time (optional 50ms/100ms/300ms/700ms). The trigger alarm time can be set according to the site environment to avoid false alarms caused by vegetation, birds and other factors.

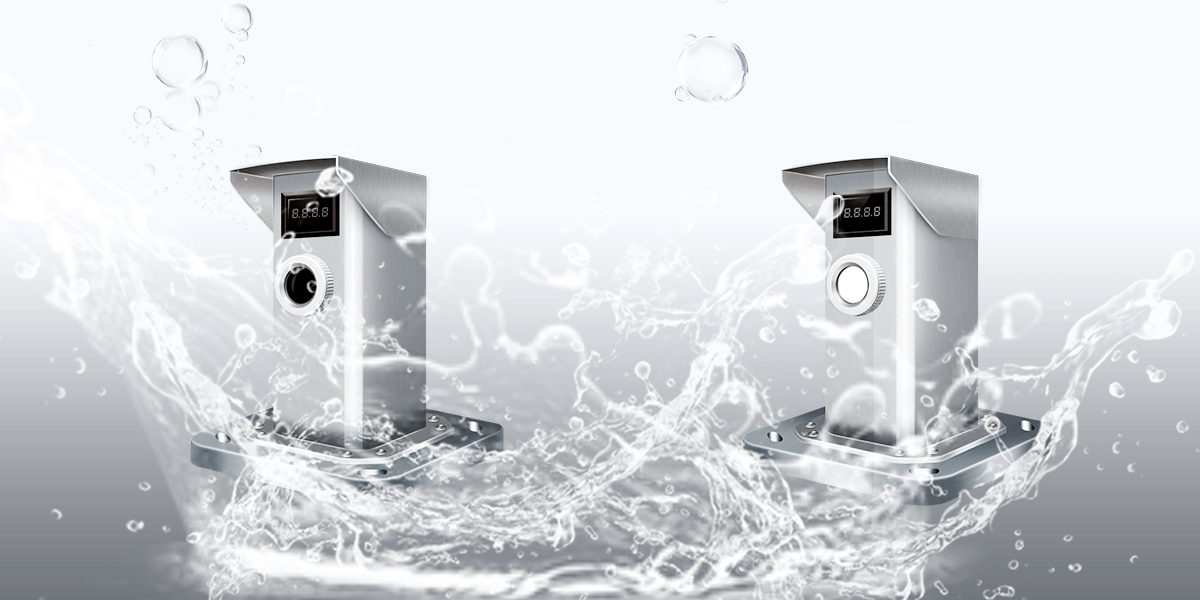

Protection rating IP67
Welded + silicone ring sealed assembly
In terms of waterproofing, it adopts seamless welding technology plus silicone ring sealed assembly and a fully enclosed design, with a protection rating as high as IP67, delivering excellent performance even in one meter of water.
Practical "universal" key
A "universal key" is designed on each of the transmitting and receiving ends of the laser beam detector, enabling blocked-beam alarm setting, blocking time setting, beam on/off setting and tamper switch setting. Rich functions and convenient commissioning.
Laser guide
Faster and more precise alignment
The laser guide is an auxiliary alignment device for the laser beam detector. During alignment, the audible and visual prompts of the guide, together with the digital-tube display of the beam signal strength, enable fast alignment, effectively solving the difficult alignment problem of traditional laser beam detectors.
Product Features：
The digital tube displays signal strength, showing the minute changes of each beam in real time, for simple and convenient commissioning.
Smart frequency conversion technology: each beam has its own transmitting and receiving frequency, effectively reducing crosstalk interference between beams.
The alarm mode uses beam interruption alarm and can be set to alarm when any one beam or two beams are blocked, suitable for various environments and applications.
Each beam can be individually masked or enabled, suitable for various special requirements or environmental applications.
Free switching between working mode and commissioning mode optimizes the complex operations during alignment.
The housing is made of 304 stainless steel for excellent corrosion resistance; the central support column is integrally extruded from aluminum alloy to bear loads well; the base plate is integrally die-cast from aluminum alloy for firm fixation and load bearing.
Alert distance 0-500m for long-range protection.
Invisible laser source design makes the product more concealed and safer to use
Carefully selected imported original laser head, with a service life >150,000 hours.
Laser Class 1; under any conditions the eyes are not exposed to harmful optical radiation.
The laser infrared beam is more focused with stronger penetration, effectively suppressing interference from harsh natural environments such as wind, frost, rain, snow and fog, for better stability.
Transmitting angle of the emitter: <8'; receiving angle of the receiver: >10°.
Each beam supports independent angle adjustment; optical axis adjustment angle horizontal ±15°, vertical ±15°.
Standard bracket accessories allow direct installation on top of the laser beam detector, such as an infrared camera, alarm light or searchlight.
Alarm trigger response time 50ms/100ms/300ms/700ms, meeting users' needs in different environments.
The waterproof rating reaches IP67 for excellent waterproofing; it remains well protected even when immersed deeper than one meter.
Supports one set of relay output, normally open/closed optional, contact capacity: AC125V/0.5A, DC24V/1A.
Technical Parameters：
Outdoor alert distance: 0-500m
Detection method: alarm upon laser beam interruption
Laser infrared wavelength: 980nm
Class I safe laser source: rating CLASS I
MTBF: >120,000 hours
Distance between two beams: not less than 15cm
Emitter divergence angle: <8'
Receiver receiving angle: >10°
Optical axis adjustment angle: horizontal ±30° Vertical ±30° (range adjustable)
Response time: adjustable 50ms/100ms/300ms/700ms
Alarm time: optional 1-30s
Beam frequency: 8 options; each beam has a unique frequency
Power supply voltage: DC9-30V / AC9-20V
Operating current: 90-150mA
Alarm output: 1C relay contact output, NC/NO contact capacity AC125V/0.5A, DC24V/1A max
Tamper switch: normally closed, alarms when the housing is removed; contact capacity: AC125V/0.5A, DC24V/1A
Material: housing: 304 stainless steel; central support column: aluminum alloy; base: die-cast aluminum
Protection rating: IP67
Operating environment: temperature -25°C to 70°C / humidity: 95% max
Mounting hole size: 4 evenly distributed ∮10 holes

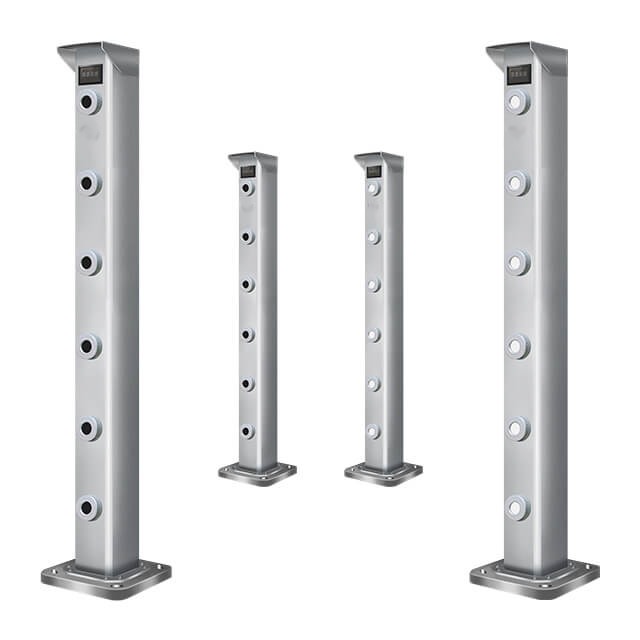

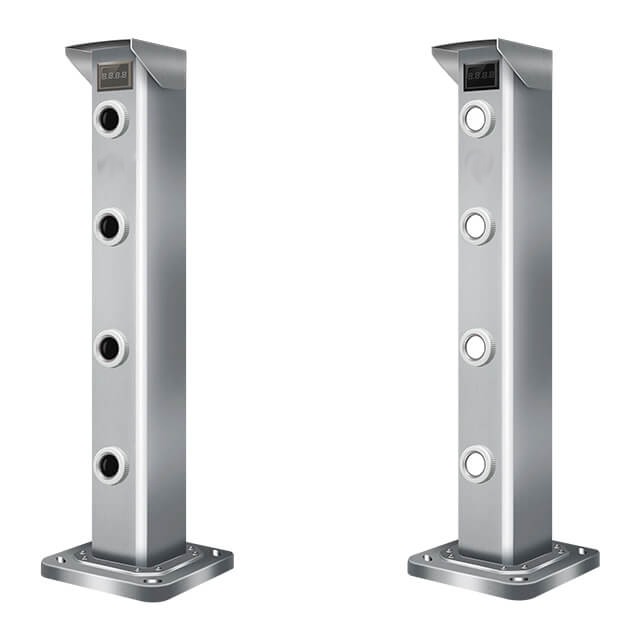

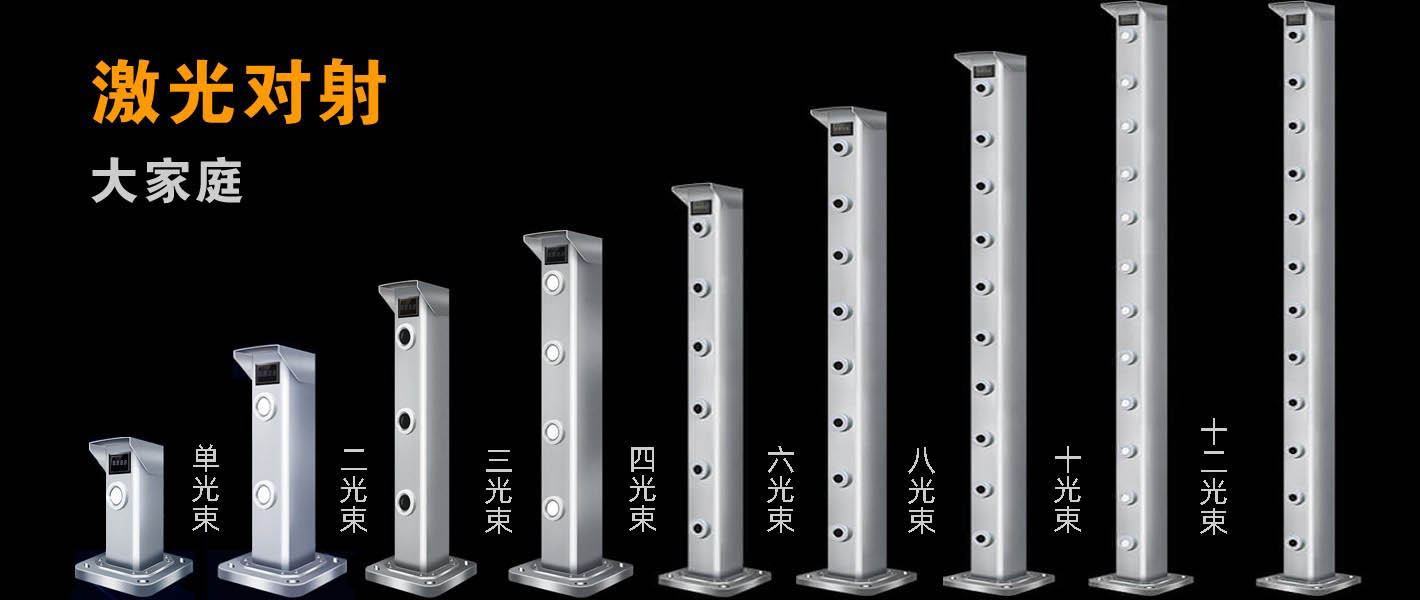

Product Models：By number of beams
Single-beam Laser Intrusion Detector: QN-J001
2-beam Laser Intrusion Detector: QN-J002
3-beam Laser Intrusion Detector: QN-J003
4-beam Laser Intrusion Detector: QN-J004
6-beam Laser Intrusion Detector: QN-J006
8-beam Laser Intrusion Detector: QN-J008
10-beam Laser Intrusion Detector: QN-J0010
12-beam Laser Intrusion Detector: QN-J0012
& In addition, by detection distance they are divided into 100m, 200m, 300m, 500m, etc.
技术参数：
室外警戒距离：0~500m
探测方式：激光射束被切断报警
激光红外波长：980nm
一类安全激光光源：等级为CLASSⅠ
MTBF：＞120000小时
两个光束间的距离：不小于15cm
发射端发散角度：＜8′
接收端接收角度：＞10°
光轴调整角度：水平±30° 垂直±30°(范围可调)
响应时间：50ms/100ms/300ms/700ms可调
报警时间：1~30s可选
射束频率：8种可选，每一光束有唯一频率
电源电压：DC9～30V/AC9～20V
工作电流：90~150mA
报警输出：1C继电器接点输出，NC/NO接点容量AC125V/0.5A、DC24V/1A max
防拆开关：常闭，当外壳被移去时报警、触点容量：AC125V/0.5A、DC24V/1A
材质：壳体:304不锈钢；中心支撑柱：铝合金；底座：压铸铝
防护等级：IP67
工作环境：温度-25℃~70℃/湿度：95% max
安装孔尺寸：4个∮10孔均匀分布
产品型号：按光束分
单光束激光入侵探测器：ABL-J1001
二光束激光入侵探测器：ABL-J1002
三光束激光入侵探测器：ABL-J1003
四光束激光入侵探测器：ABL-J1004
六光束激光入侵探测器：ABL-J1006
八光束激光入侵探测器：ABL-J1008
十光束激光入侵探测器：ABL-J10010
十二光束激光入侵探测器：ABL-J10012
&另外按探测距离各分为100米、200米、300米、500米等
