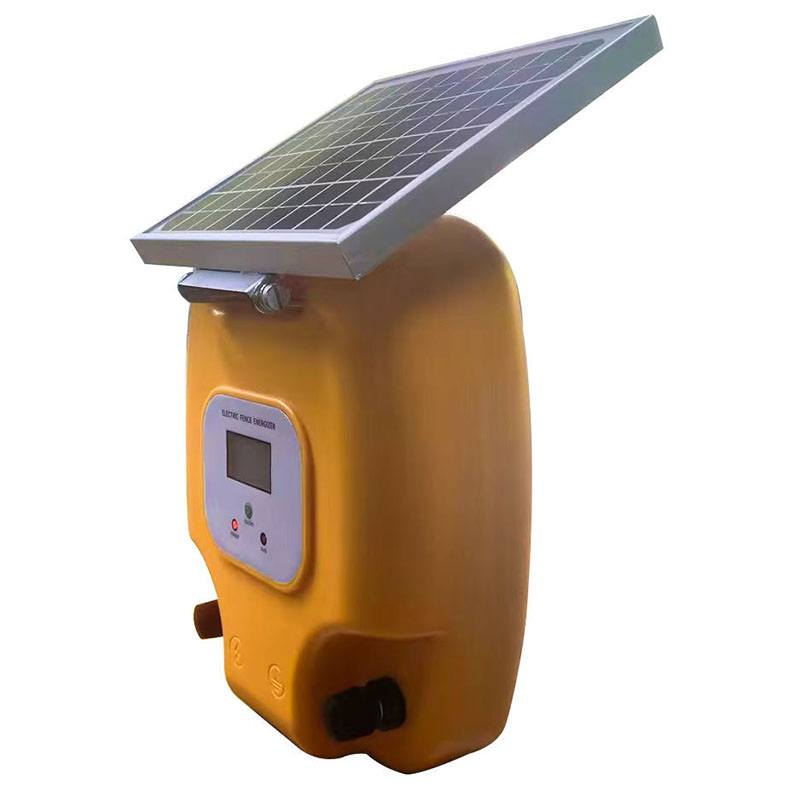

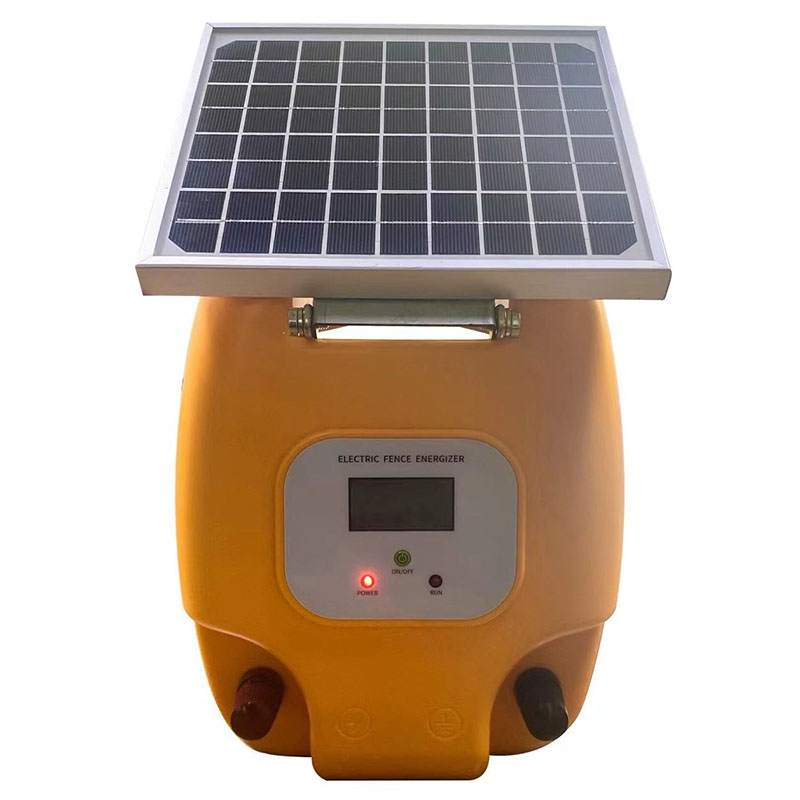

Solar-Powered Livestock Farm Electric Fence Energizer
Solar-Powered Livestock Farm Electric Fence Energizer
Solar-Powered Livestock Farm Electric Fence Energizer
Brand: Quan'an
Model: TD-XMCP9
Features: Solar livestock electric fences are used for animal corralling and protection without harming people or animals. Livestock electric fences with solar panels are mainly used in places without convenient power supply.
  • Photos & Details
  • Specifications

Product parameters

Equipment name: Solar-Powered Livestock Farm Electric Fence Energizer

Model: TD-XMCP9

Product dimensions: solar panel 290mm*240mm, fence energizer 210mm*260mm*90mm

Power supply: built-in lithium battery (charged by external solar panel or 18V adapter)

Solar charging efficiency: 0.44A/hour

Power: ≤2W

Single-line reach: 1-10 km

Pulse voltage: 10KV

Pulse amplitude: 10KV

Output port: single-port pulse output

Energy output: 1.5J

Discharge interval: 2s

Pulse width: 100MS (1/10 s)

Operating environment: temperature -20℃~+50℃

Relative humidity: below 95%

Protection rating: IP65


Main uses:

1. Animal breeding

2. Ecological farmland protection

3. Protection of ecological reserves

4. Preventing animals in reserves from damaging residential areas

5. Other animal protection sites



产品参数

设备名称:太阳能动物畜牧场电围栏主机

设备型号:TD-XMCP9

产品尺寸:太阳能板:290mm*240mm、电围栏主机:210mm*260mm*90mm

设备供电:内置锂电池供电(外接太阳能板或外接18V适配器充电)

太阳能充电效率:0.44A/小时

设备功率:≤2W

单线可达长度:1-10公里

脉冲电压:10KV

脉冲幅值:10KV

输出端口:单端口脉冲输出

能量输出:1.5J

放电间隔:2s

脉冲宽度:100MS (1/10秒)

使用环境:温度-20℃~+50℃

相对湿度:小于95%

防护等级:IP65


主要用途:

1、动物圈养

2、生态农田保护

3、生态保护区的防护

4、动物保护区内动物对居民点的破坏

5、其它动物防护场所
