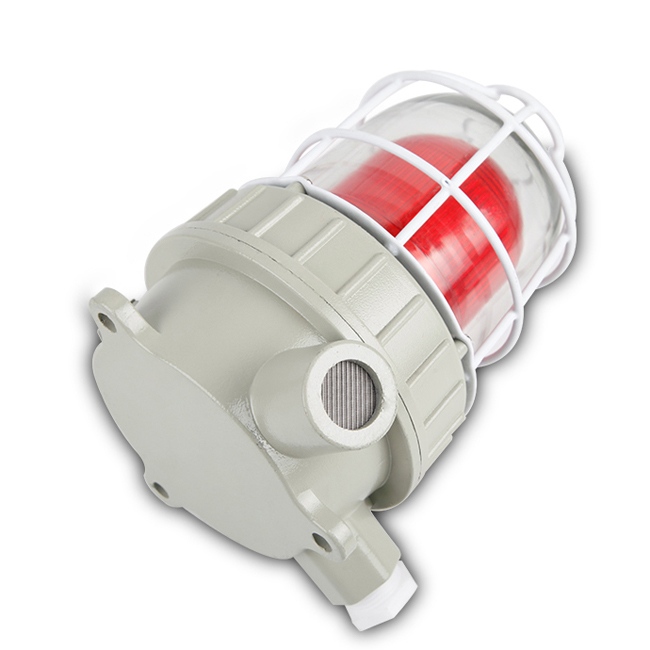

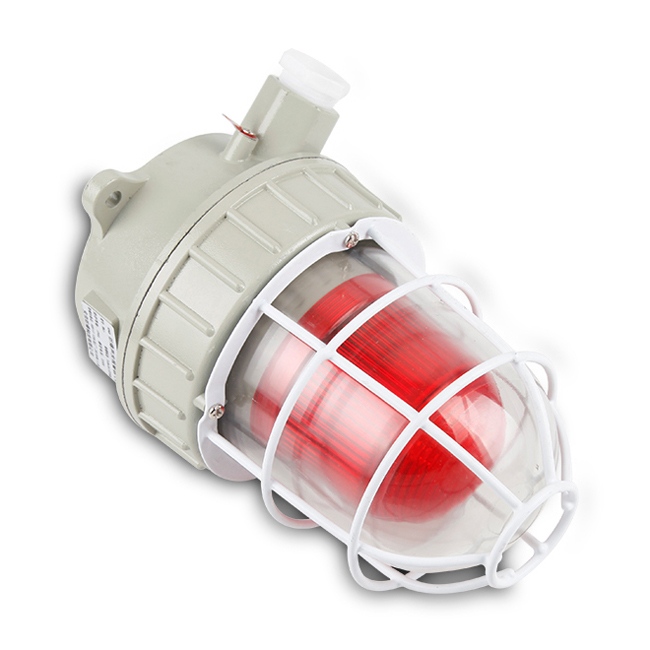

Explosion-proof Audible and Visual Alarm Siren
防爆声光警号报警器
防爆声光警号报警器
Explosion-proof Audible and Visual Alarm Siren
防爆声光警号报警器
防爆声光警号报警器
Explosion-proof Audible and Visual Alarm Siren
Brand: Quan'an
Model: BBJ-EX
Features: High-brightness LED, more energy-efficient and longer life
Anti-tamper clips prevent lamp cover vibration detachment, improving product safety
Thickened housing and cover improve impact resistance
Special-process high-borosilicate toughened glass lamp cover with excellent explosion-proof performance
  • Photos & Details
  • Specifications

Explosion-proof Audible and Visual Alarm

High-brightness LED, more energy-saving and longer service life

Tamper-proof buckle prevents the lampshade from falling off due to vibration, improving product safety

Thickened housing and lampshade design improves impact resistance

Special-process high-borosilicate tempered glass lampshade with good explosion-proof performance

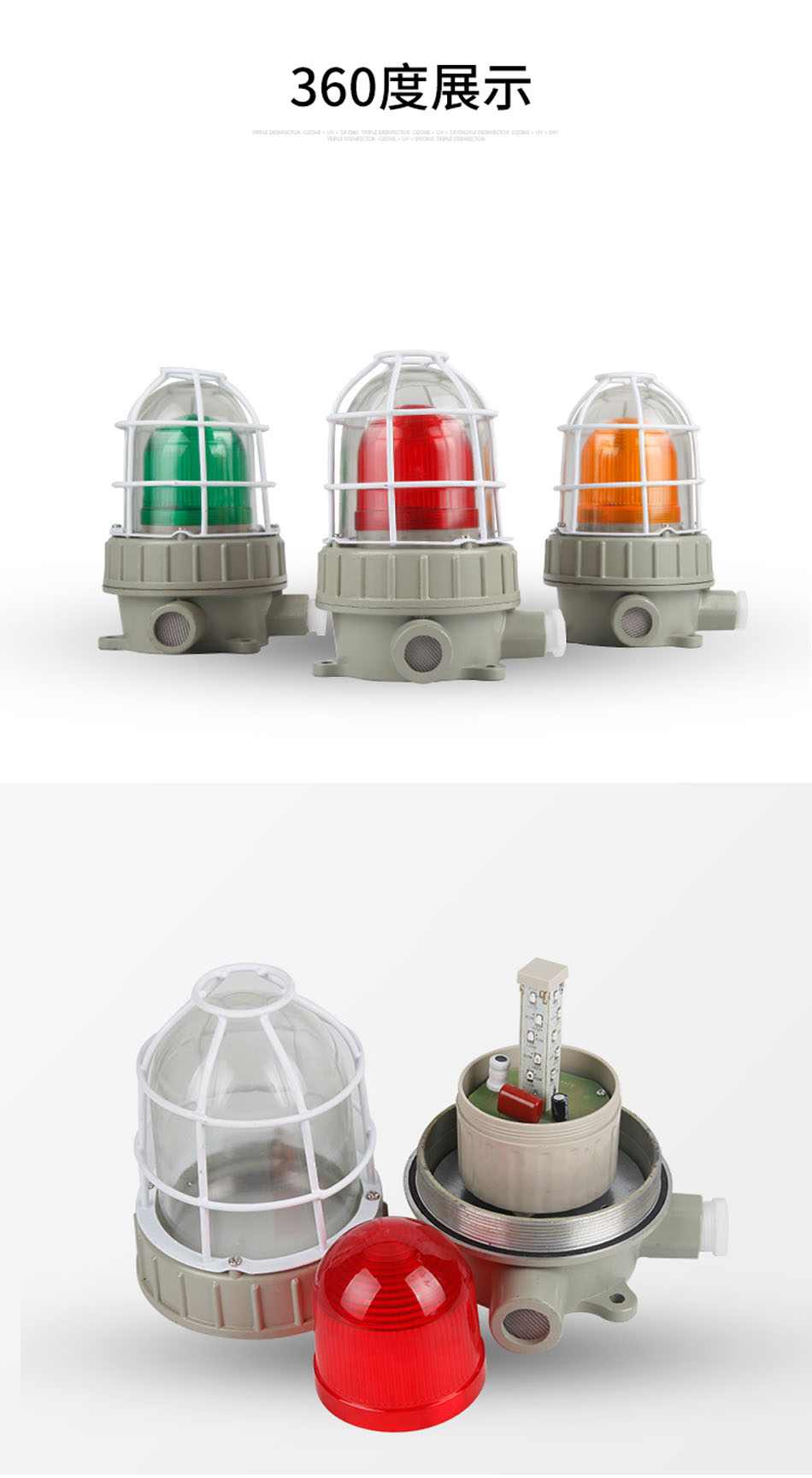

Explosion-proof Audible and Visual Alarm Siren

防爆外壳参数

◎ 采用优质碳钢材质外箱

◎ 防护等级:IP65

◎ 出线孔规格:DN20,G-3/4,6分,ф10-ф14

◎ 适用于爆炸性气体环境1区、2区危险场所;

◎ 适用于IIA、IIB、IIC级爆炸性气体环境;

◎ 适用于温度组别为T1-T6的环境;

◎ 符合国家标准《GB3836-2010》;

◎ 防爆等级Ex d IIC T6Gb


声光报警器参数

产品型号:BBJ

声响强度:110分贝

防护等级:IP66

额定电压:AC220V,DC36V,DC24V,DC12V

防爆标志:Exd II CT6

配用光源:LED灯


With years of R&D and manufacturing in the alarm industry, we adhere to the principle of "product quality first, technology constantly updated" and have supplied quality security products to more than 4,000 engineering companies, earning unanimous praise from security users. If you need pulse electronic fences, tension electronic fences, vibration optical fiber cables, infrared beam/light grid detectors, home gas & smoke detectors and more...
Please contact us right away or call the hotline: +86-13590284141. We will answer all your questions in detail. Project Manager Online

Which alarm product do you need? Contact us now!

Antongruida · Founded in 2013 · Over a decade in security · Serving projects nationwide!
