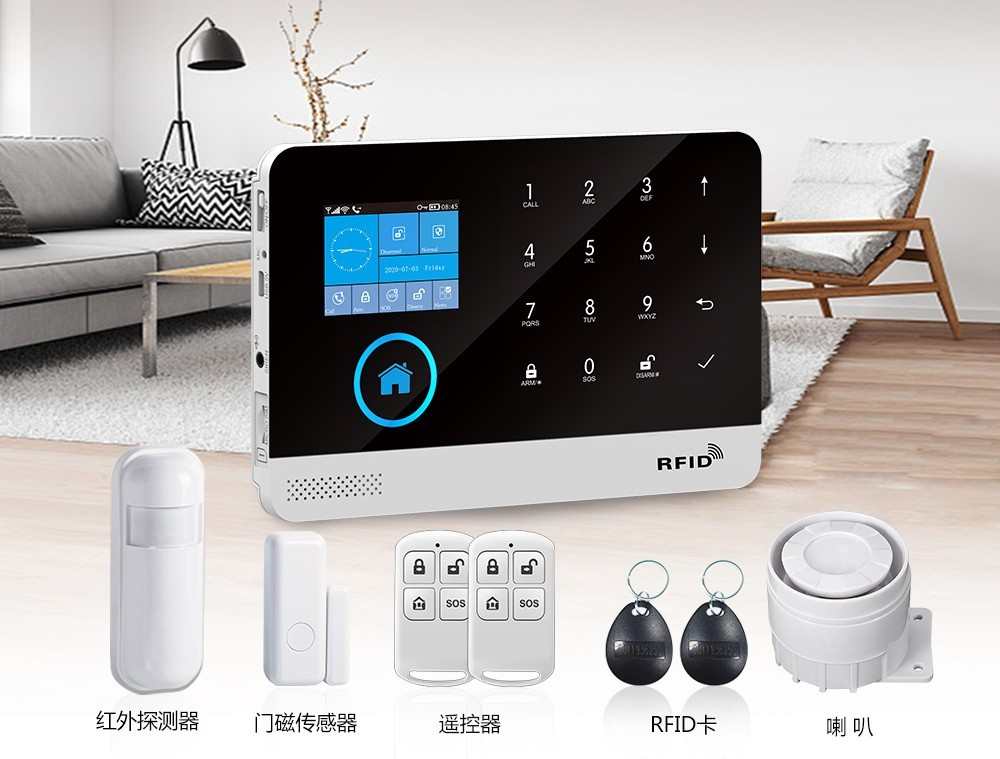

Touchscreen Smart Alarm System
Touchscreen Smart Alarm System
Touchscreen Smart Alarm System
Brand: QuOwn
Model: TDH-103
Features: 2.4-inch TFT color display
Built-in 10 languages, freely switchable

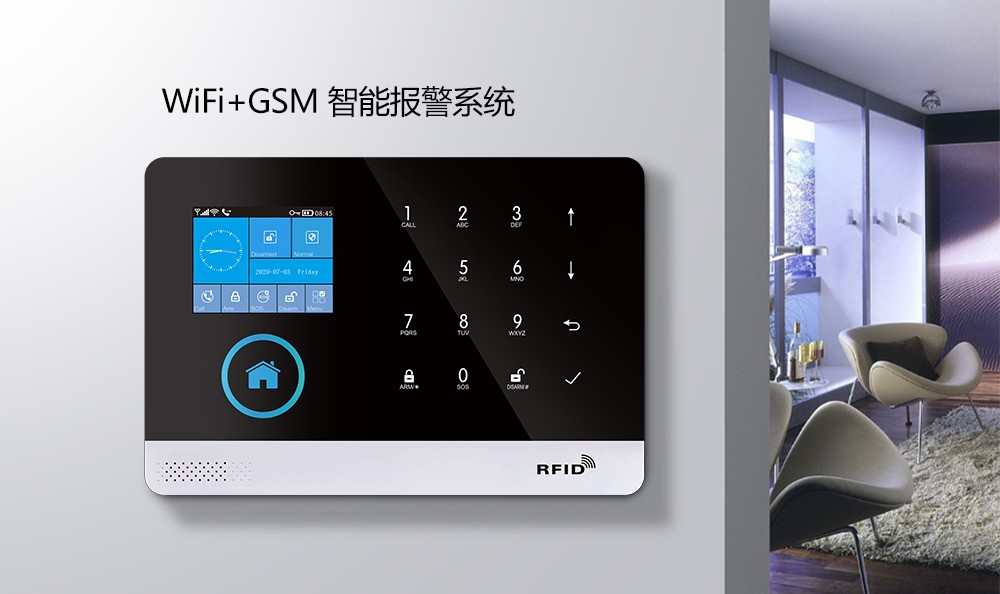

Dual-network mode WIFI + GSM/4G
Multi-channel alarm methods: APP push, SMS push, voice monitoring
APP remote control and parameter setting
Up to 90 wireless detector learning/storage slots
Local buttons, APP remote, SMS learning of remote controls and wireless detectors
12 alarm-type zone names settable (main door, hall, etc.)
Multiple zone types: entry zone, interior zone, perimeter zone, 24-hour zone, doorbell zone

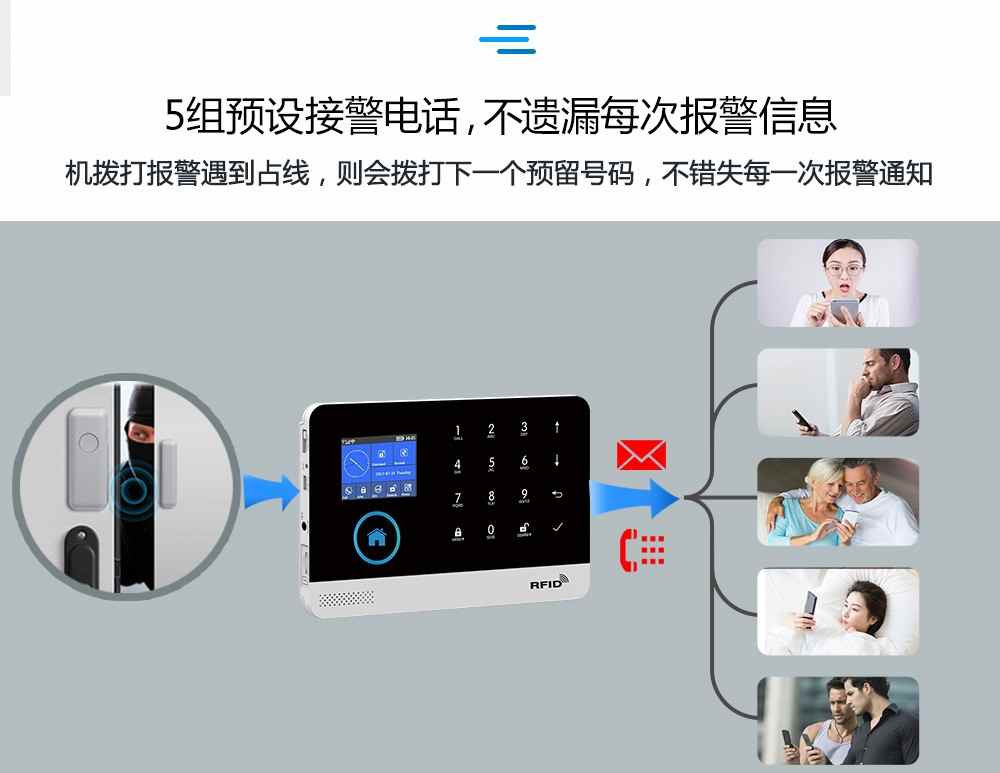

Preset 5 phone and SMS numbers, SMS/voice on-off settable separately
Supports external wireless siren
Zone renaming (APP only)

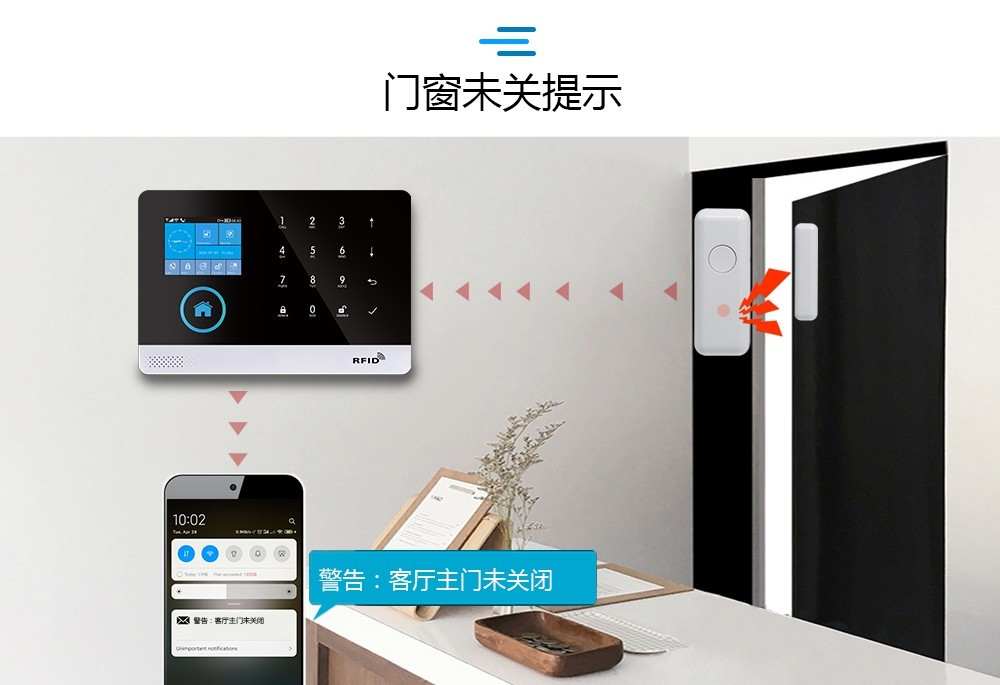

Tamper alarm
  • Photos & Details
  • Specifications

Product Details


Product Parameters

Technical Parameters:

> Input voltage: DC5V (micro USB standard interface power supply)

> Operating current: <200mA

> Siren output: < 500mA

> Wireless frequency: 433MHz

> Wireless code: EV1527

> GSM: 850/900/1800/1900MHz

> WIFI: IEEE802.11b/g/n wireless standard

> Backup battery: 3.7V/1000mAh lithium battery

> Operating temperature: -10°C to 55°C

> Relative humidity: < 93%RH (non-condensing)

> Product dimensions: 185x125x14.7mm (L x H x T)
