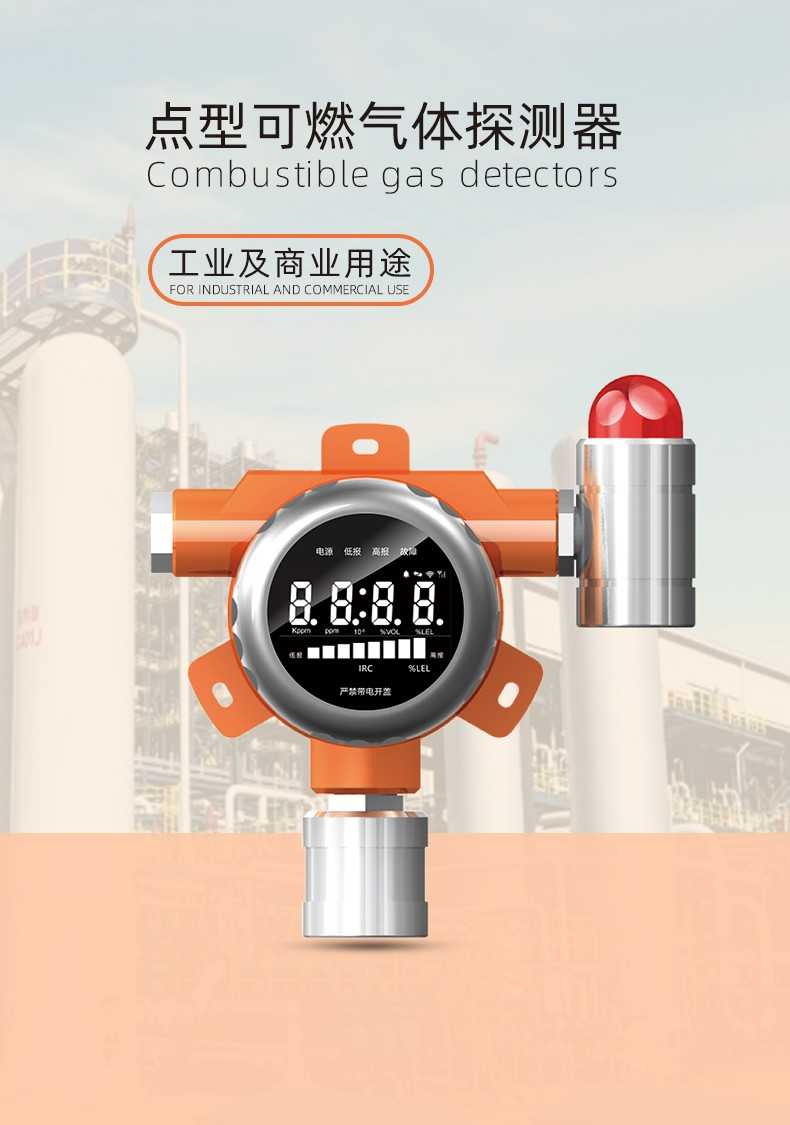

Industrial and Commercial Point-Type Combustible Gas Detector
Industrial and Commercial Point-Type Combustible Gas Detector
Industrial and Commercial Point-Type Combustible Gas Detector
Brand: Quan'an
Model: QN-GY223
Features: High-reliability catalytic sensor;

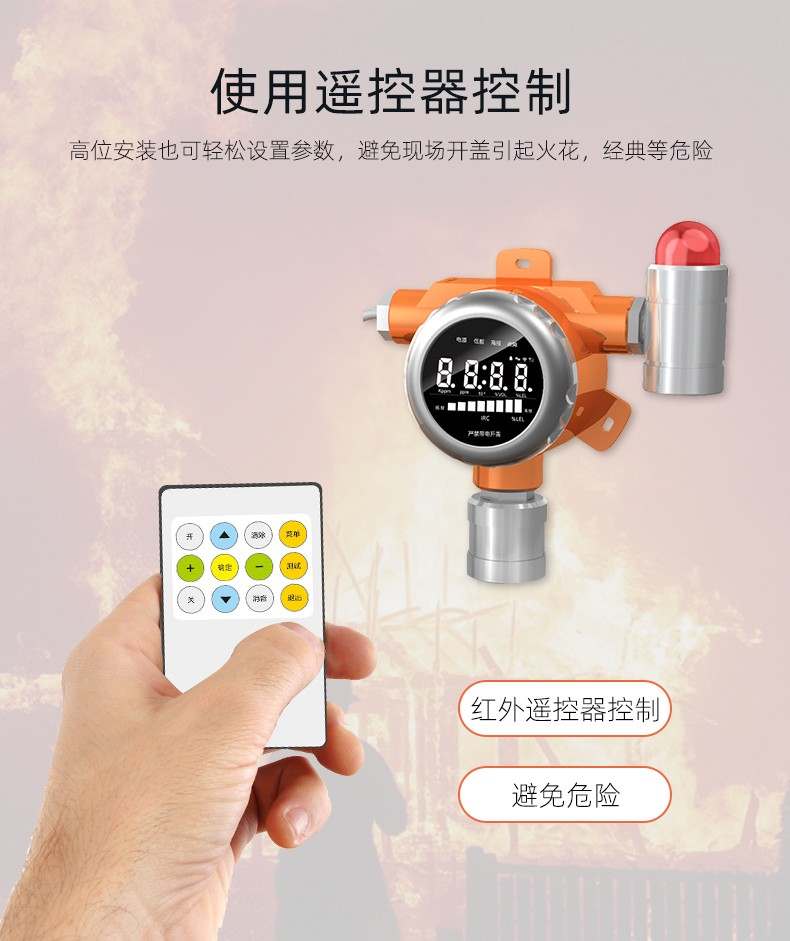

Remote setting function;
Microprocessor control;
Real-time display of detected gas concentration;
Automatic fault detection indicator; propane detectable;
SMT manufacturing for strong stability;
Fashionable design with digital tube display;

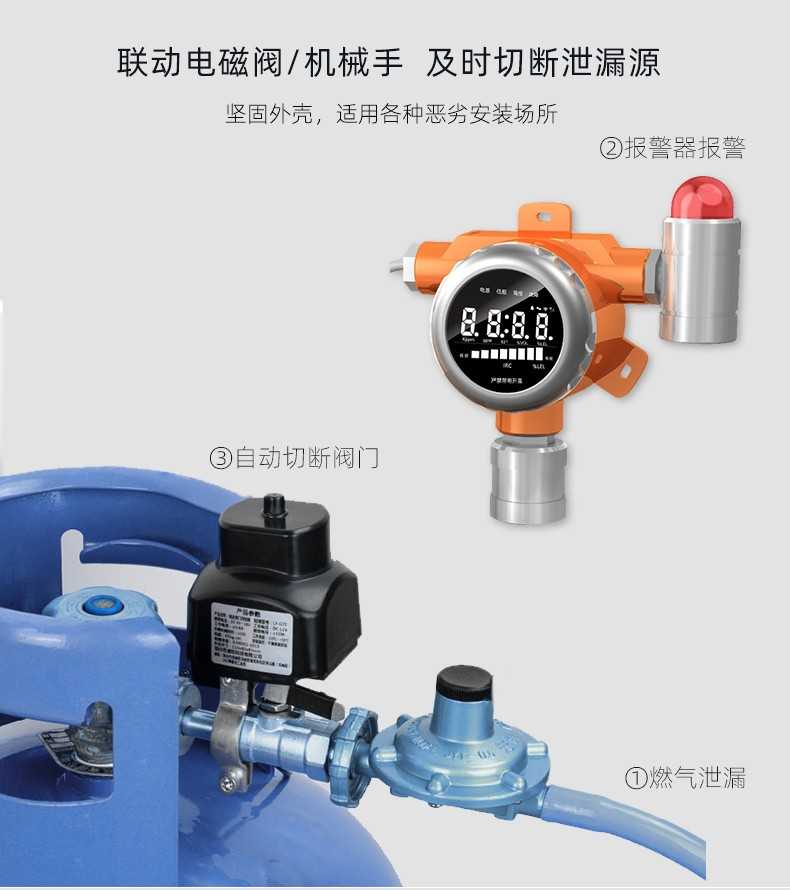

Optional mechanical arm, solenoid valve output or relay mode output;
Complies with national standard GB15322.1-2019.
  • Photos & Details
  • Specifications

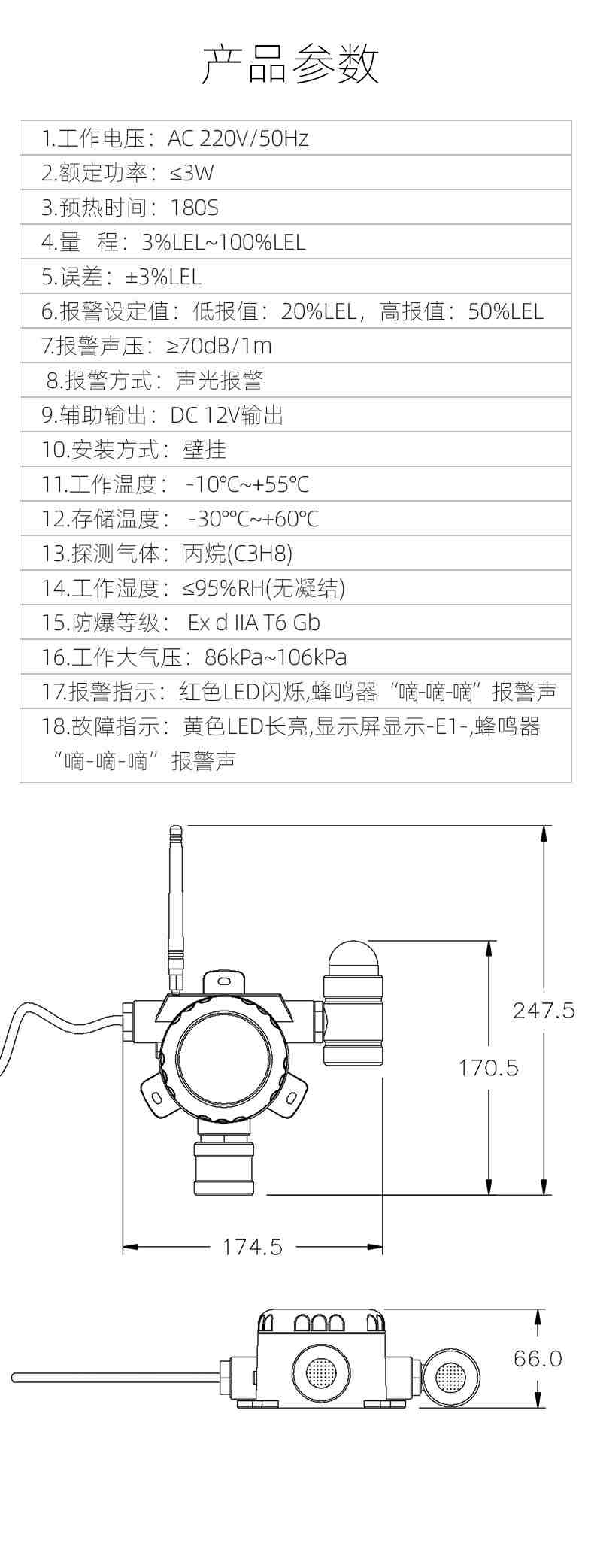

1.工作电压:AC220V/50HZ

2.额定功率:<3W

3.预热时间:180S

4.量 程: 3%LEL~100%LEL

5.误差:3%LEL

6.报警设定值:低报值:20%LEL,高报值:50%LEL

7.报警声压:70dB/1m

8.报警方式:声光报警

9.辅助输出:DC12V输出

10.安装方式:壁挂

11.工作温度: -10°C~+55°C

12.存储温度:-30°C~+60°C

13.探测气体:丙烷(C3H8)

14.工作湿度:≤95%RH(无凝结

15.防爆等级: Ex dIIAT6 Gb

16.工作大气压:86kPa~106kPa

17.报警指示:红色LED闪烁蜂鸣器“嘀-嘀-嘀”报警声

18.故障指示:黄色LED长亮,显示屏显示-E1-,蜂鸣器“嘀-嘀-嘀”报警声
