Introduction to the Locating Vibration Optical Fiber Alarm System:
Centered on the locating Vibration Optical Fiber alarm system, it can be linked with video surveillance and other systems to form a multi-dimensional security system of early warning, monitoring and alarm, weaving a tight perimeter security system.
When an intrusion occurs, it causes vibration of the optical cable, the system host alarms, and the electronic map interface in the duty room shows an intrusion alarm indication and gives the specific intrusion location. Linked video images pop up the video frame of the alarm location on the system monitor, achieving joint detection and target tracking. During an alarm, the location and time of the video recorded in centralized storage (such as NVR) are recorded for easy retrieval of footage. Overall it achieves the important goals of full monitoring and intrusion prevention, providing convenience for emergency response, emergency decision-making and safety handling, and safeguarding personnel and property.
The locating optical fiber intrusion detection system has functions such as intrusion alarm, locating, signal analysis, intelligent identification, zone planning (electronic map display), multi-point alarm, device self-check (tamper and fiber-break alarm), permission grading, linked alarm and platform interconnection.
Features of the Locating Vibration Optical Fiber Alarm System:
Ø The adopted locating optical fiber intrusion detection system achieves long-range, full-area continuous micro-disturbance sensing and locating;
Ø The external sensing component is just one optical cable, passive on site, with high reliability and low maintenance.
Ø High alert sensitivity with anti-vandal function;
Ø Adapts to various terrains, with no blind spots or dead angles;
Ø Advanced pattern recognition accurately identifies intrusion behaviors and filters out harmless signals caused by non-intrusion events such as strong wind, heavy rain, small animals, trains and cars;
Ø The device achieves functional linkage with video systems and third-party platform systems;
Ø Integrates sound, light and electric linkage to achieve all-round coordinated alerting by multiple means;
Ø Adopts an electronic map of the site environment, combined with video linkage for real-time online monitoring;

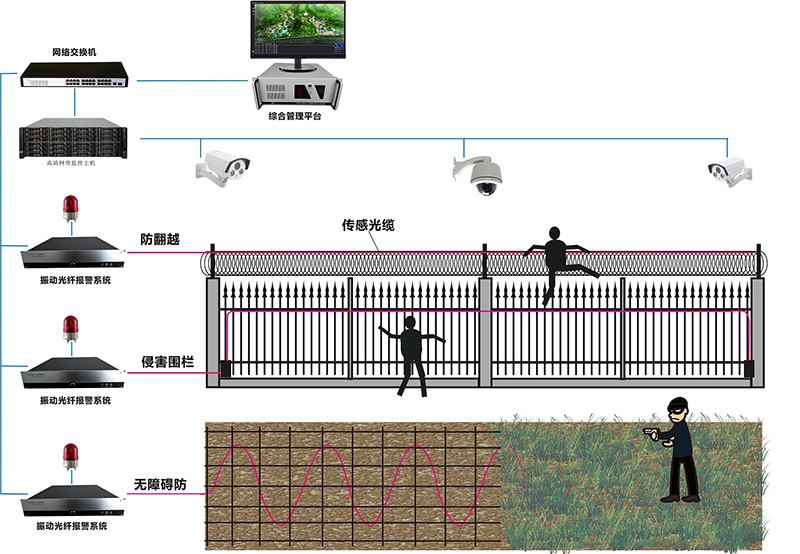

Structure of the Locating Vibration Optical Fiber Alarm System:

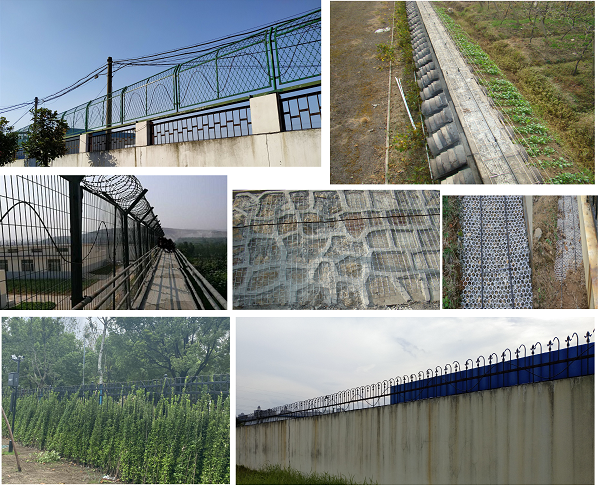

Installation methods of the Locating Vibration Optical Fiber Alarm:
Application fields of the Locating Vibration Optical Fiber Alarm:
Public security: schools, prisons, railways, highways, airports, military camps, borders, industrial parks, etc.
Energy industry: oil depots, LNG stations, refineries, hydropower stations, petroleum and petrochemical sites (valve rooms, gas transmission stations, compressor stations), etc.
Civilian industry: residential communities, parks, wildlife parks, large farms, factories, islands, smart cities, etc.
Usage scenarios of the Locating Vibration Optical Fiber Alarm:
Scenario 1: when the perimeter is a guardrail or fence, the optical cable can be directly laid on the fence; in actual projects it can be laid straight, or in a wavy or sinusoidal pattern if the designer has special requirements. Common applications include industrial parks, border defenses, large farms, airports and other large-scale protection sites.
Scenario 2: when the perimeter is a wall plus razor wire, the optical cable is laid on the razor-wire traction steel wire. Common applications include prisons, chemical high-explosive locations, classified sites, and some residential communities and other places requiring very high security levels.
Scenario 3: when the perimeter is a solid wall, an auxiliary wire mesh needs to be added for auxiliary conduction. Common applications include residential communities, schools, factories and other places.
